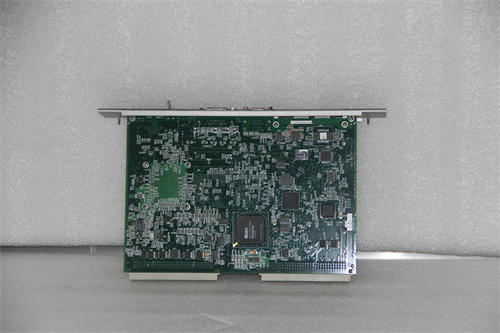

GE IC698CPE020 Product Overview

GE IC698CPE020 is a high-performance CPU module designed for industrial automation and control systems.It has powerful processing capabilities,multiple communication interfaces,high reliability and a wide range of applications,and can meet various complex control scenarios and needs.

Main Features

Processor Performance

Equipped with a 700MHz Pentium III floating-point microprocessor.

The standard execution speed of the processor is 0.14 milliseconds per 1000 Boolean contacts.

Memory Configuration

Provides 10 megabytes of volatile memory(RAM)and 10 megabytes of flash memory(NVRAM).

A CMOS battery is required to support the volatile memory,while the flash memory is non-volatile.

RAM and NVRAM can be used for user data,programming configuration,storage of symbolic variables,and any information related to registers.

Communication Interface

Supports three serial ports and two Ethernet ports.

Ethernet connection requires Category 5 shielded or unshielded RJ-45 twisted pair cable and TCP/IP configuration.

Supported serial ports include RS-232 and RS-485,and the third serial port is the station manager port.

Features

Supports 512 program blocks,ladder diagrams,and C programming.

Provides symbolic variable support,the ability to modify test modes,and monitor system data over the network.

When using Web monitoring,up to 16 Web and FTP servers can be connected.

Installation and Update

Installation should follow the steps listed in the manual,including recording the MAC address of the device,turning off the rack power,inserting the IC698CPE020 in rack slot 1,connecting the device to the Ethernet LAN,restoring rack power,and connecting the CMOS battery.

To update the firmware,simply connect the IC698CPE020 to the computer using the appropriate serial port and run the update software.

Application Fields

GE IC698CPE020 modules are widely used in industrial automation,building automation,and process control.For example,in building automation systems,this module can be used to control and monitor building equipment,such as air conditioning systems,lighting systems,security systems,etc.,to achieve intelligent control of building facilities.In the field of process control,such as chemical process control,water treatment and pharmaceutical processes,this module provides a reliable power supply for the PLC system to ensure that the system can stably control and monitor complex processes.

Product Advantages

High performance:With a powerful processor and sufficient memory configuration,GE IC698CPE020 is able to perform complex control and computing tasks,ensuring real-time response and precise control of the system.

Multiple communication interfaces:Supports a variety of communication protocols and interfaces,convenient for connection and communication with other devices and systems,and realizes seamless connection between devices.

High reliability:With high-quality materials and durable design,it can operate stably in harsh industrial environments and has high reliability and stability.

Easy to maintain and upgrade:The design is simple and easy to maintain and upgrade,reducing maintenance costs and usage costs.

In summary,GE IC698CPE020 is a comprehensive and excellent industrial automation control device suitable for various complex control scenarios and needs.
