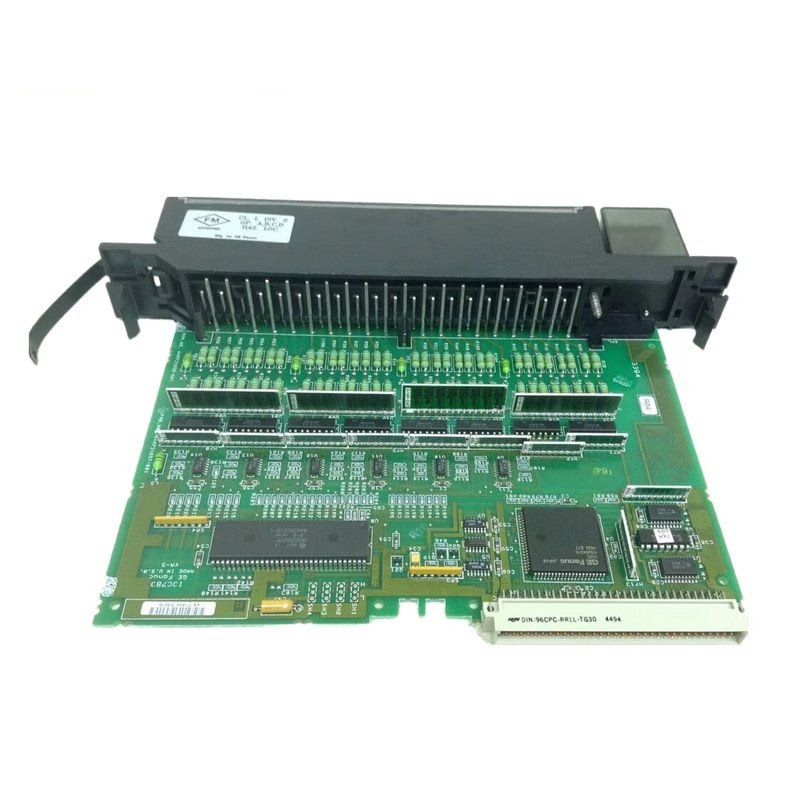

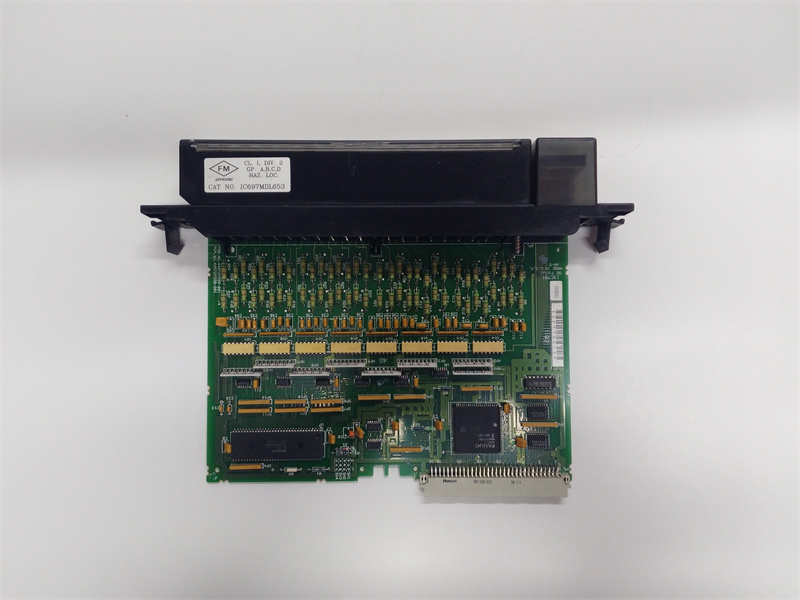

GE IC697MDL653 Product Introduction

GE IC697MDL653 is a programmable controller(PLC)module produced by General Electric(GE),specifically a 24V DC input module for Series 90-70 PLC.The following is a detailed introduction to the module.

Product Overview

Model:IC697MDL653

Brand:General Electric(GE)

Series:Series 90-70 PLC

Functions and Applications

Main functions:Connect external 24V DC signals to PLC and convert them into signals that PLC can understand.

Application scenarios:Widely used in industrial automation control systems to meet the processing needs of various input and output signals.

Technical specifications

Number of input points:32

Supported logic:positive and negative logic

Current limit:supported,can protect the module from overload damage

Filtering function:supported,can eliminate signal noise

Power supply voltage:24 VDC

Input voltage:24 VDC

Input current:maximum 2A per point

Power consumption:5W

Operating temperature:-20℃to 60℃

Storage temperature:-40℃to 85℃

Vibration:5g to 2kHz

Shock:30g

Protection level:IP67

Dimensions:140mm×60mm×25mm(may vary depending on the specific product)

Weight:200g(may vary depending on the specific product)

Installation method:DIN rail installation

Product features

High performance:with extremely fast logic operation and extremely strong logic control and sequential control capabilities.

High reliability:suitable for long-term operation in industrial environments,with stability and durability.

Easy to use:convenient and easy-to-learn programming method,easy to integrate and control the system.

Wide compatibility:Supports multiple communication interfaces and protocols,such as serial port,Ethernet,etc.,as well as communication protocols such as DH+,ControlNet and Ethernet,which facilitates data exchange and communication with other devices and systems.

Scalability:Additional modules and functions can be added as needed to meet changing system requirements.
