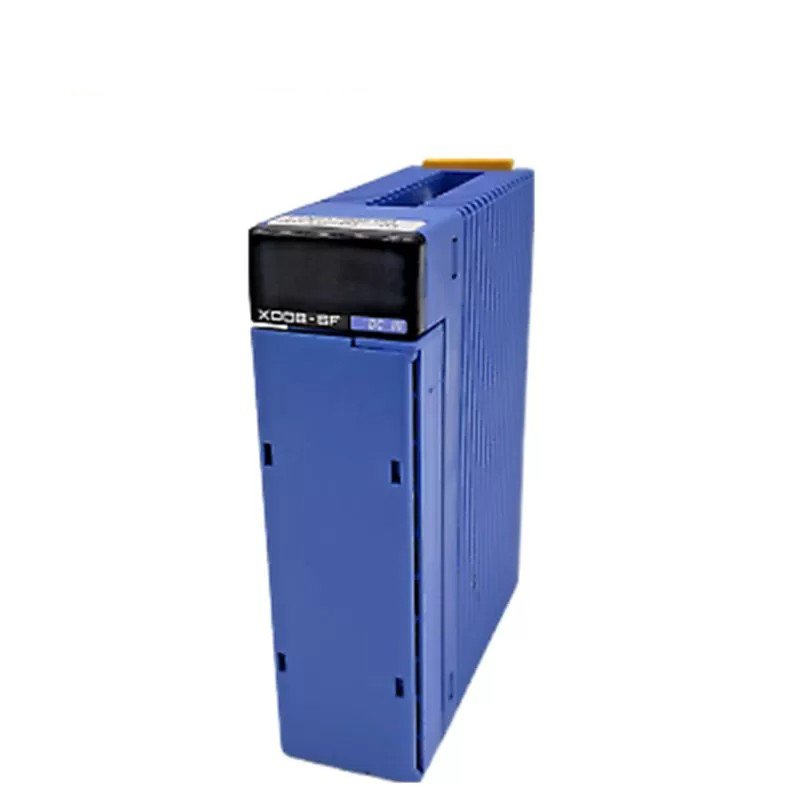

The Yokogawa F3XD08-6F is a specialized DC input module for industrial automation applications. It belongs to Yokogawa’s extensive range of automation components, commonly used in programmable logic controllers (PLCs) for various process control systems.

Key Features and Specifications

DC Input: The module handles DC voltage inputs, suitable for a wide range of industrial sensors and devices.

Number of Channels: The F3XD08-6F offers multiple input channels, enabling simultaneous monitoring of various signals.

Input Voltage Range: The module supports a specific range of DC input voltages, matched to connected devices.

Isolation: It includes isolation features to protect the PLC from electrical noise or surges.

Configuration: Configure the F3XD08-6F to meet specific application requirements, such as input filtering, scaling, and alarm conditions.

Compatibility: It is compatible with Yokogawa’s PLC platforms and may work with other compatible systems.

Typical Applications

Process Monitoring: Monitor various process parameters like temperature, pressure, and flow rate.

Machine Control: Monitor limit switches, proximity sensors, and other machine status signals.

Safety Systems: Monitor safety interlocks and emergency stop signals.

Technical Specifications

Number of Channels: 8

Input Voltage Range: 0-10V, 0-20mA

Resolution: 12 bits

Sampling Rate: Varies based on configuration

Operating Temperature: -20 to +60°C

Power Supply: 24 VDC
