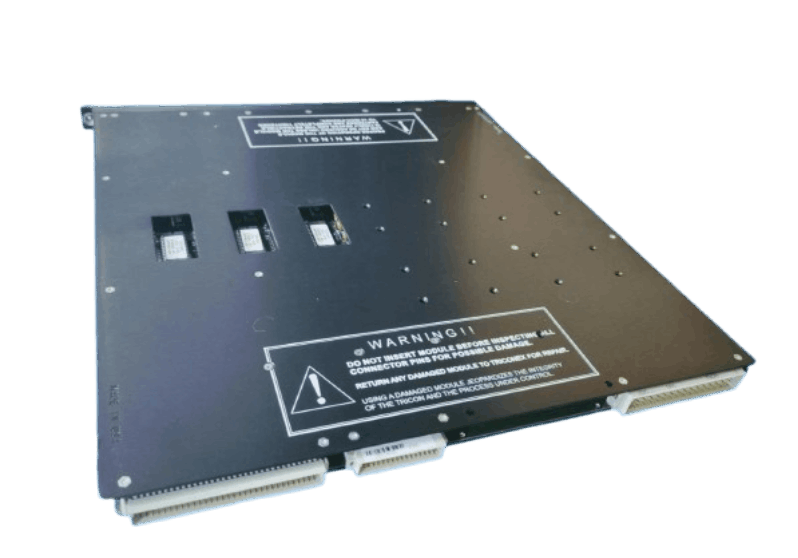

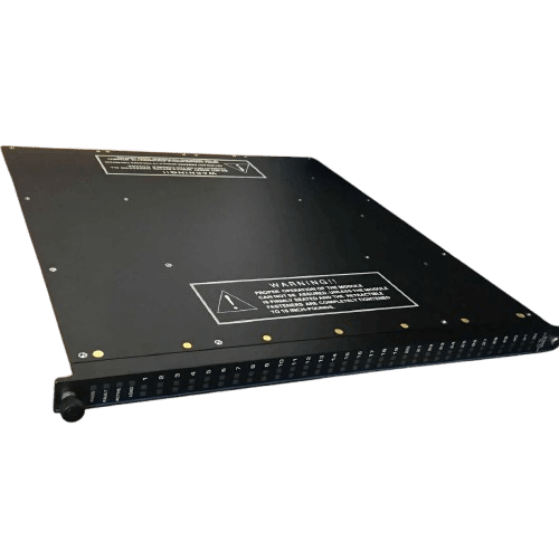

Triconex 3624 Digital Output Module
Product Description
Triconex 3624 is a digital output module that provides 16-point supervised and 32-point supervised/non-supervised configurations. The module uses a redundant transistor architecture to maintain normal output even if some components fail. All SDO modules support hot standby function.
Triconex 3624 needs to be used with an independent ETP and connected to the Tricon backplane via a cable. 16-point full supervised type: suitable for high-risk scenarios where all output points need to be strictly monitored. 32-point mixed mode: supports partial channel supervised (Supervised) and non-supervised (NonSupervised) modes.
Function&Features
Triconex 3624
On-site circuit supervision
Power interruption or blown fuse
Load open circuit or missing
Mis-energized short circuit (on-site short circuit causes incorrect energization)
Load short circuit in de-energized state
Alarm indication
Power failure: When no voltage is detected on site, the power alarm indicator is activated.
Load failure: When no load is detected, the load alarm indicator is activated.
Specifications
|
Parameter |
Value |
|
Type |
TMR, Supervised |
|
Output Signals |
16, commoned |
|
Voltage Range |
16-30 VDC |
|
Voltage Drop |
< 1.5 VDC, typical |
|
Power Module Load |
< 10 watts |
|
Current Ratings, Maximum |
0.7A per point 4.8A surge per 10 ms |
|
Minimum Required Load |
30 mA |
FAQs
Q: What is the brand?
A: Triconex
Q: What is the type?
A: Digital Output Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping lovation?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
