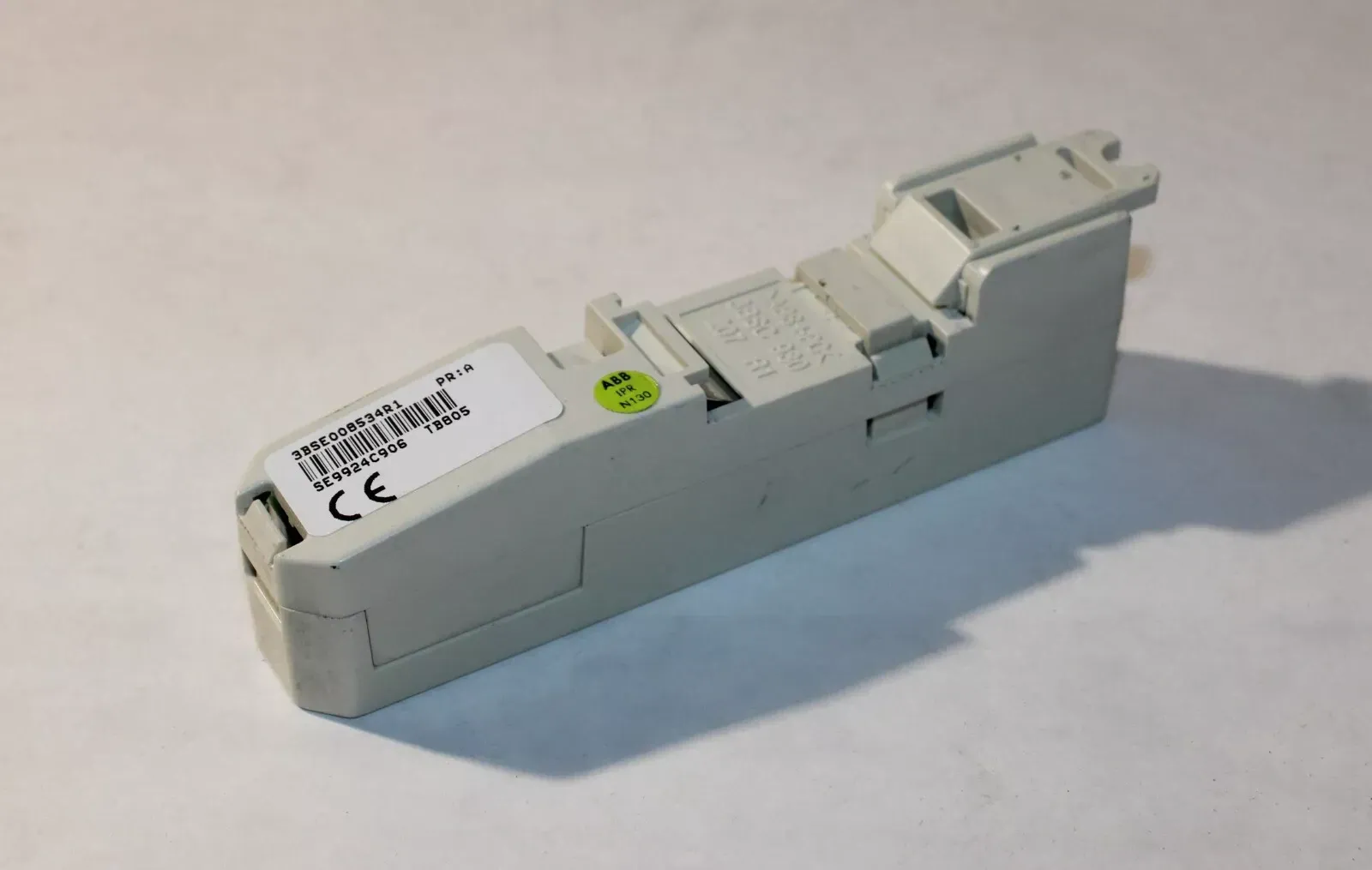

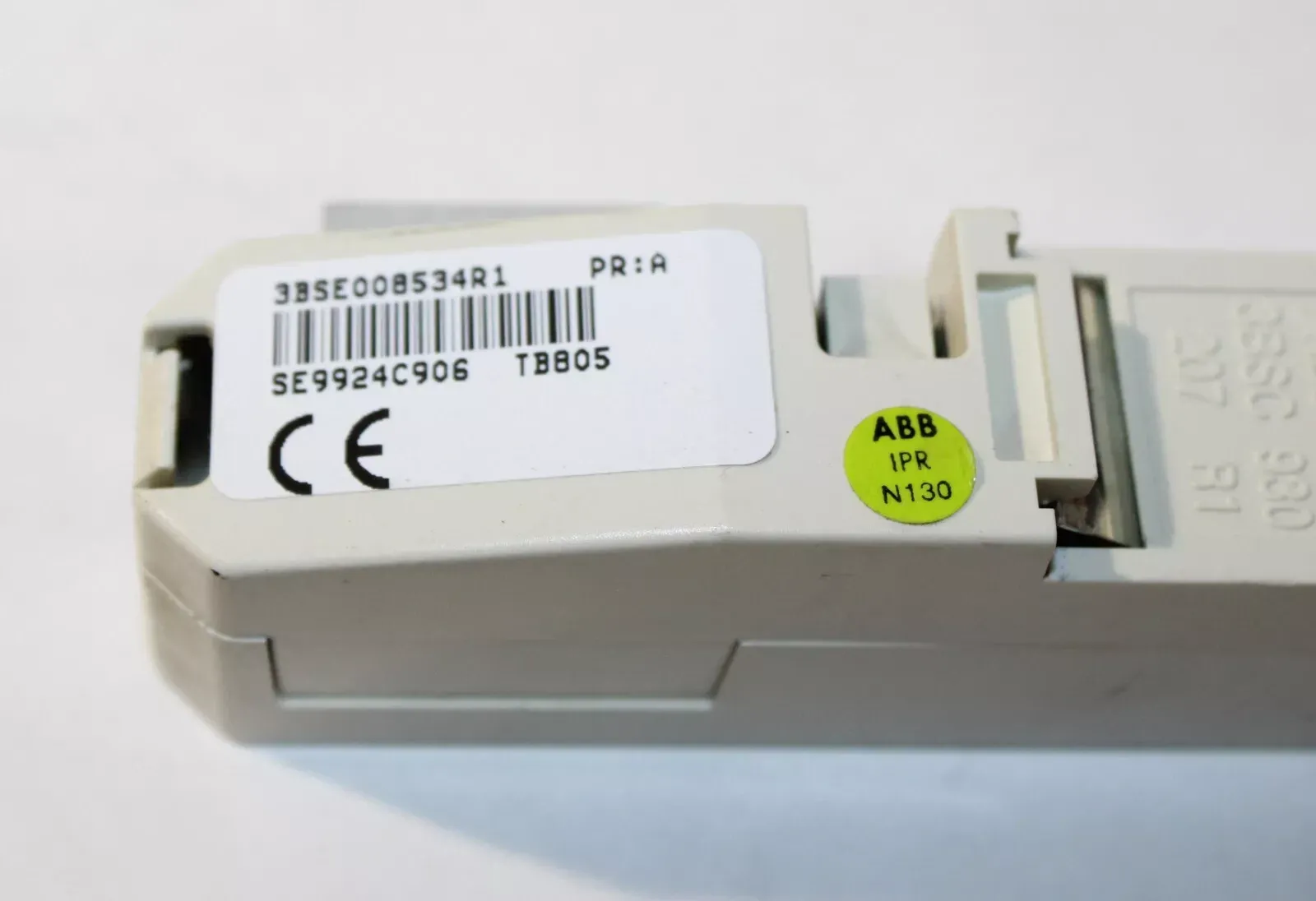

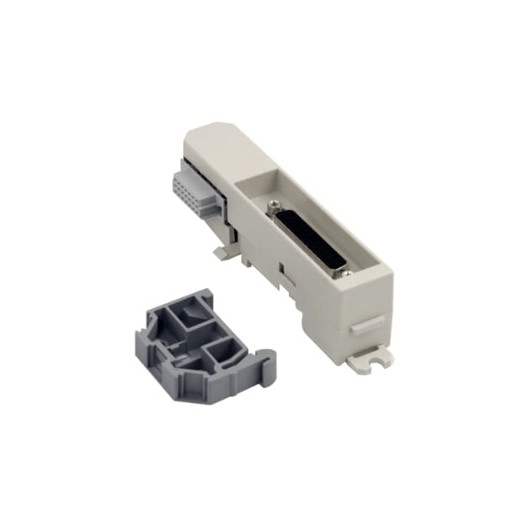

ABB TB805 3BSE008534R1 Bus Outlet
Product Description
ABB TB805 3BSE008534R1 is a bus outlet. As a module bus cable adapter, it needs to be used with TB806 and TK801V0xx to expand the module bus so that the I/O modules on the same electrical module bus can be installed on different DIN rails. In terms of protection characteristics, the pollution level is level 2 under the IEC 60664-1 standard, with G3 level corrosion resistance in the ISA-S71.04 standard, and the protection level reaches IP20 under the IEC 60529 standard. Electrical safety meets multiple standards and is suitable for specific hazardous locations.
Fuctions & Features
- It can be used in conjunction with TB806 and TK801V0xx to expand the ModuleBus.
- It has passed the CE certification and complies with multiple electrical safety standards.
- It has an operating temperature range of 0 to +55 °C and a storage temperature range of -25 to +70 °C. Meanwhile, it has a pollution degree of Level 2 and corrosion protection in accordance with ISA - S71.04: G3.
- It complies with the EMC standards of EN 61000 - 6 - 4 and EN 61000 - 6 - 2, and can effectively resist electromagnetic interference.
Specification
| Article number | 3BSE008534R1 |
| Mechanics | S800 |
Environment and certification
| CE mark | Yes |
| Electrical safety | IEC 61131-2, UL 61010-1, UL 61010-2-201 |
| Hazardous Location | C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
| Marine certification | ABS, BV, DNV, LR |
| Temperature, Operating | 0 to +55 °C (Storage -25 to +70 °C), RH=5 to 95 % no condensation, IEC/EN 61131-2 |
| Pollution degree | Degree 2, IEC 60664-1 |
| Corrosion protection | ISA-S71.04: G3 |
| Protection class | IP20 according to IEC 60529 |
| Mechanical operating conditions | IEC 61131-2 |
| EMC | EN 61000-6-4 and EN 61000-6-2 |
| Overvoltage categories | IEC/EN 60664-1 |
| Equipment class | Class I according to IEC 61140; (earth protected) |
| RoHS compliance | Directive 2011/65/EU (EN 50581:2012) |
| WEEE compliance | DIRECTIVE/2012/19/EU |
Dimensions
| Width | 22 mm |
| Depth | 25 mm |
| Height | 109 mm |
| Weight | 46 g |
