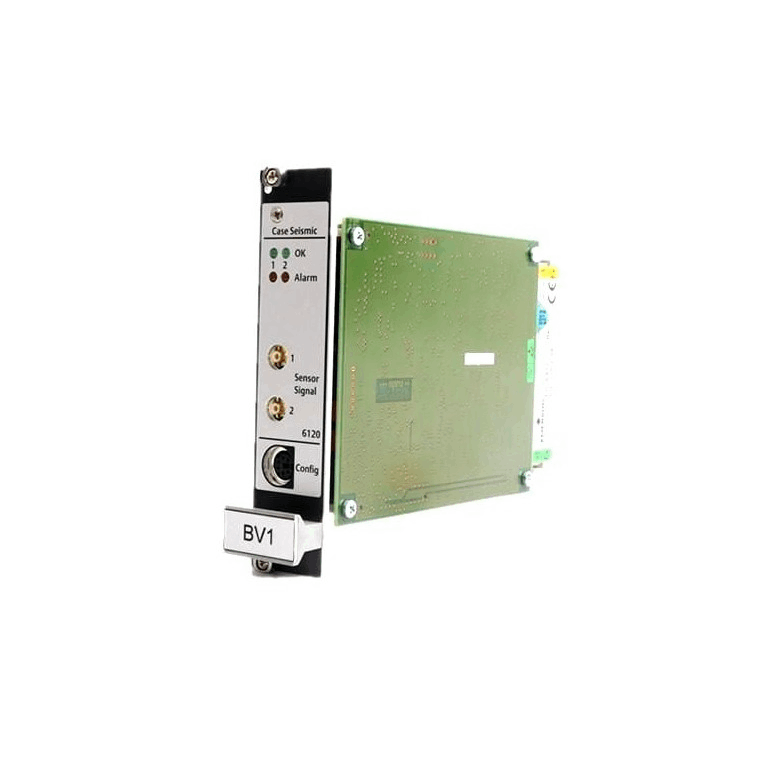

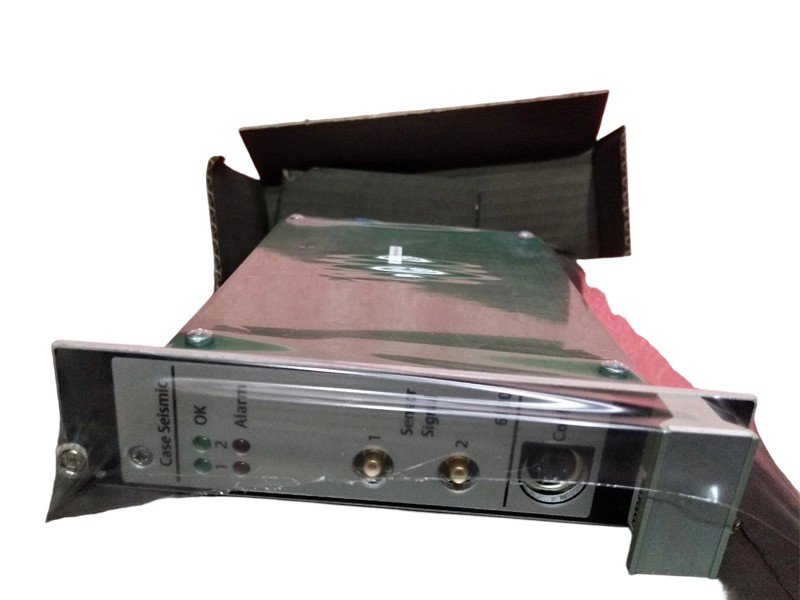

Emerson A6120 Case Seismic Vibration Monitor
Item Number: A6120
Brand:Emerson
Lead Time: In stock
Description: Case Seismic Vibration Monitor
Payment: T/T
Product Description
Emerson A6120 is a Case Seismic Vibration Monitor in the CSI 6500 Machine Health Monitoring System.The monitor is a single-slot plug-in module used in conjunction with a seismic sensor to monitor the absolute vibration of the bearing housing and trigger an alarm when the vibration exceeds the limit, thus protecting rotating machinery.
Function & Features
- Although piezoelectric sensors are now widely used in field upgrades, the Emerson A6120 monitor remains backward compatible with traditional electrodynamic (electromagnetic) sensors.
- The Emerson A6120 features remotely selectable limit multiplication and bypass functions, and is equipped with front and rear buffers and proportional output interfaces.
- The Emerson A6120 accurately monitors seismic vibrations of the chassis, measuring vibration velocity (in mm/sec or in/sec).
Specifications
| Parameter | Details |
|---|---|
| Product Model | A6120 |
| Number of Inputs | Two, independent channels |
| Type of Inputs | Electro-dynamic (electro-mechanical), differential |
| Emerson Sensor Inputs | Part number: 9266, 9267, or 9268 |
| Max Permissible Load | 3.4 kΩ at 2 mA |
| Min Dynamic Input Voltage | 311 mV peak to peak |
| Max Dynamic Input Voltage | 9500 mV peak to peak |
| Width | 30.0 mm |
| Height | 128.4 mm |
| Length | 160.0 mm |
| Net Weight | app 320g |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
