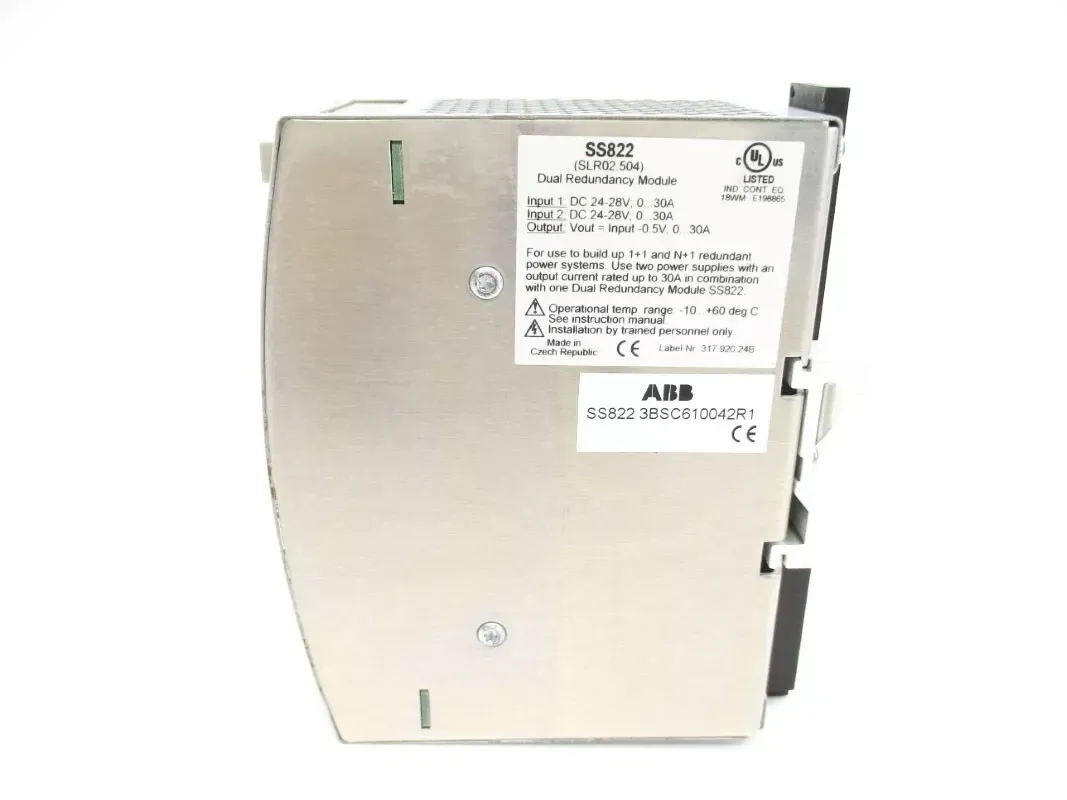

ABB SS822 3BSC610042R1 Power Voting Unit
Item Number:SS822 3BSC610042R1
Brand: ABB
Lead Time: In stock
Description:Power Voting Unit
Payment: T/T
Product Description
ABB SS822 3BSC610042R1 is a power voting unit designed for redundant power supply configuration. It can connect two power supply unit outputs. It can separate redundant power supply units and monitor voltage in real time, respond to voltage anomalies in time, and ensure that electrical equipment obtains appropriate voltage. It belongs to Class I equipment and provides electrical safety after connecting to protective ground. It is suitable for primary main connection of TN network. The overvoltage category is Class III and can handle higher overvoltage.
Function & Features
- Power management: ABB SS822 separates redundant power supply units and monitors voltage in real time to ensure power supply. It can respond to voltage anomalies in a timely manner to ensure that power-consuming devices obtain appropriate voltage.

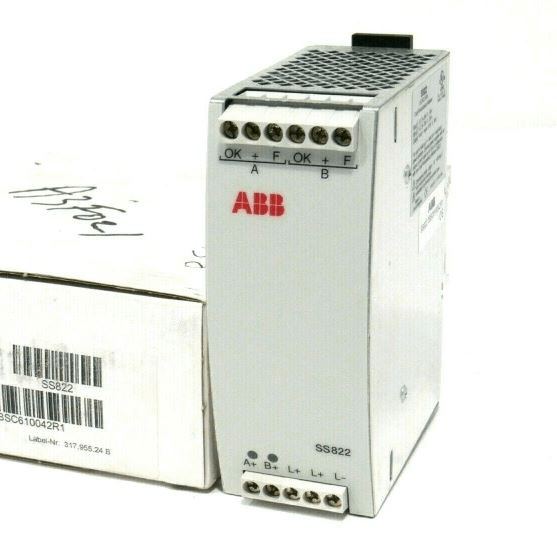

- Status indication: ABB SS822 generates a supervision signal connected to the power-consuming device. The green LED on the front panel intuitively displays whether the output voltage is correct. When the green LED is on, the voltage-free contact is closed to the "OK connector" to provide feedback to the user on the power status.
- Electrical safety: ABB SS822 is a Class I device. It provides electrical safety after connecting to the protective earth (PE). It is suitable for the primary main connection of the TN network. The overvoltage category is Class III. It can handle higher overvoltages and achieve protective isolation between the secondary and primary circuits. It is suitable for SELV and PELV scenarios.
Specifications
|
Parameter |
Value |
|
Width |
32 mm (1.26") |
|
Depth |
117 mm (4.61") |
|
Height |
125 mm (4.9") |
|
Weight |
350 g (0.77 lbs.) |
|
Mounting Spacing (Width) |
15 mm (0.59") |
|
Mounting Spacing (Height) |
25 mm (1") |
|
Mains Frequency |
60 V d.c. |
|
Supervision Relay |
Yes |
|
Heat Dissipation |
18 W |
|
Output Voltage Regulation at Max. Current |
0.85 V typ. |
|
Maximum Output Current |
25 A (Overload) |
|
Maximum Ambient Temperature |
55 °C |
FAQ
Q: What is the brand?
A: ABB
Q: What is the type?
A:Power Voting Unit
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
