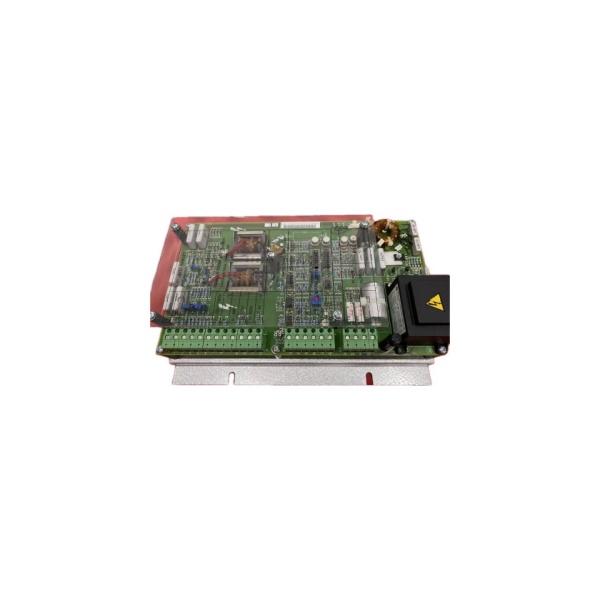

ABB SCYC56901 Power Voting Unit is another unit in ABB industrial automation and control systems that manages redundant power supplies and ensures system reliability. Like the SCYC55870, the SCYC56901 may be used in high availability systems where continuous operation is critical.

The SCYC56901 Power Voting Unit ensures continued power to critical control systems, even if one or more power supplies fail. This is achieved through a voting mechanism, where the unit monitors multiple power inputs and selects the active, reliable power source. If one of the power supplies fails, the voting unit automatically switches to the other power source without interrupting system operation.

Voting is the process by which the unit continuously monitors the status of redundant power supplies. The unit "votes" for the best available power source based on the status of the inputs. If the primary power source fails, the voting unit selects the backup power source as the active power source, ensuring the system remains powered.

Helps ensure that critical automation systems continue to operate without downtime due to power issues. It is particularly beneficial to industries such as oil and gas, energy, water treatment, and chemical processing.

Frequently asked questions about the product are as follows:

-How does the power supply voting unit detect which power supply is active?

The voting unit continuously monitors the input to each power supply. It selects the active power supply based on voltage level, output consistency, or other health indicators.

-What happens if both power supplies fail?

The system typically goes into fail-safe mode. Most systems will have alarms or other safety protocols to alert operators to a failure. In a worst-case scenario, the control system may shut down to prevent damage or unsafe operation.

-Can the SCYC56901 be used in a non-redundant system?

The SCYC56901 is designed for redundant power supply systems. In a non-redundant system, a voting unit is not needed because there is only one power supply.
