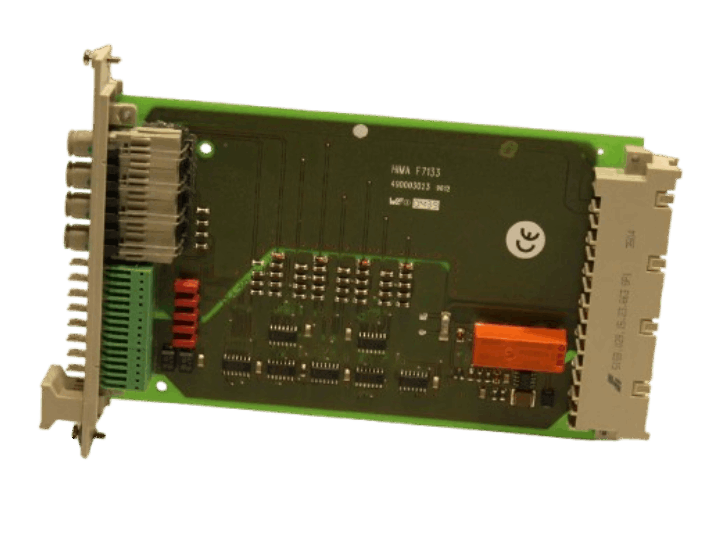

Hima F7133 4-fold Power Distribution
Product Description
HIMA F7133 is a 4-channel power distribution module with 4 independent power distribution channels. Each channel is equipped with a micro fuse (fuse). Each fuse is equipped with an LED status indicator. It can provide power to multiple I/O module devices at the same time. When the module is not wired, all LEDs are off; if there is a lack of input voltage in the connected current path, the status information of different fuses cannot be given.
Function & Features
- Circuit protection: Each channel of F7133 is equipped with a micro fuse to provide line protection. When a circuit fails, the fuse will melt and cut off the faulty circuit.
- Relay status feedback: If all fuses are normal, the relay contact d22/z24 is closed; if a fuse is not installed or fails, the relay will lose power.
- Multiple connection terminals: The contact pins 1, 2, 3, 4 and L- on the front are used to connect L+ or EL+ and L- to power the I/O module and sensor contacts; the contacts d6, d10, d14, d18 on the back provide 24V power to each I/O slot respectively.
Specifications
|
Parameter |
Details |
| Model | F7133 |
|
Fuses |
Max. 4A slow-blow type |
|
Relay Switching Time |
Approx. 100ms |
|
Relay Contact Rating |
30V/4A (continuous load) |
|
Residual Voltage (Fuse Tripped) |
0V |
|
Residual Current (Fuse Tripped) |
0mA |
|
Residual Voltage (Missing Supply) |
Max. 3V |
|
Residual Current (Missing Supply) |
<1mA |
|
Space Requirement |
4TE (20.32mm) |
|
Power Consumption |
24V DC: 60mA |
FAQ
Q: What is the brand?
A: HIMA
Q: What is the type?
A:Power Distribution
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
