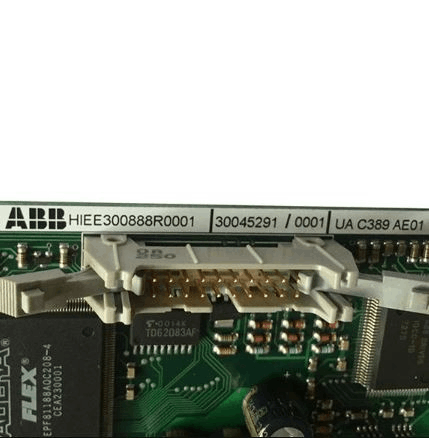

ABB UA C389 AE01 HIEE300888R0001 Pulse Amplifier Interface
Item Number:UA C389 AE01 HIEE300888R0001
Brand: ABB
Lead Time: In stock
Description:Pulse Amplifier Interface
Payment: T/T
Product Description
ABB UAC389AE01 (HIEE300888R0001) pulse amplifier interface is a pulse amplifier interface module that connects low-power control signals to high-power execution devices. The module can be triggered by an externally triggered narrow-pulse modulated electrical signal via the SMA interface, or it can be triggered internally by an internal drive circuit to complete the control and ultimately output an optical pulse.
Function & Features
- High Extinction Ratio: For driver modules supporting reverse bias, the ABB UAC389AE01 (HIEE300888R0001) achieves an extinction ratio of 60-70 dB; when used with a narrowband filter in the optical path, the extinction ratio can be further increased to 70-80 dB.
- Adjustable Pulse Width: The output pulse width of the ABB UAC389AE01 (HIEE300888R0001) can be adjusted from 1 nanosecond to several hundred nanoseconds as needed.
- High Peak Output Power: The ABB UAC389AE01 (HIEE300888R0001) can provide high peak output power ranging from over 10 mW to 200 mW (i.e., 10 dBm to 23 dBm).
Specifications
| Parameter | Details |
|---|---|
| Product Model | UAC389AE01 |
| Part Number | HIEE300888R0001 |
| Extinction Ratio |
Regular: >50 dB Enhanced (with reverse bias): 60-70 dB Extreme (with filter): 70-80 dB |
| Output Peak Power | 10 mW ~ 200 mW (equivalent to 10 dBm ~ 23 dBm) |
| Pulse Width | 1 ns ~ Several Hundred ns (continuously adjustable) |
| Input Signal Type | Narrow Pulse Modulated Electrical Signals (e.g., TTL, PECL, etc.) |
| Dimension | 29.5*11.3(cm) |
| Weight | 0.77kg |
Application scenarios(Automation control)
System flow: Controller (e.g., PLC/motion control card) → Pulse amplifier interface module → Motor driver → Motor (stepper/servo motor)
Controlling Stepper/Servo Motors: The PLC generates weak pulse and direction signals, which are amplified by the ABB UAC389AE01 (HIEE300888R0001) module to drive the motor driver for positioning and speed control.
Driving Large Solenoid Valves: The ABB UAC389AE01 (HIEE300888R0001) amplifies control signals to drive high-flow, high-power solenoid valves in pneumatic or hydraulic systems.
Controlling High-Power Heaters or Lights: The ABB UAC389AE01 (HIEE300888R0001) amplifies PWM (Pulse Width Modulation) signals to adjust heating power or light brightness.
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
