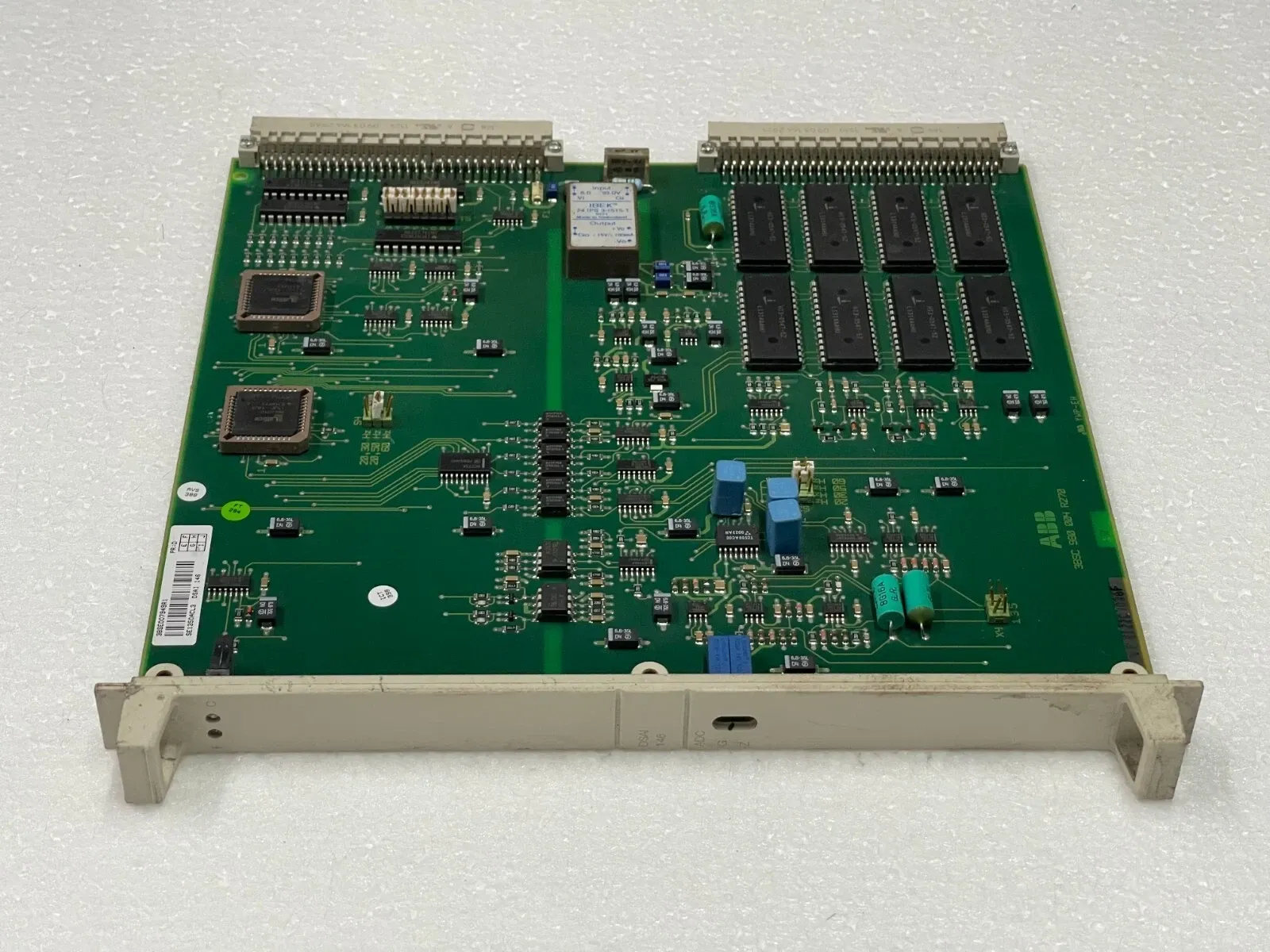

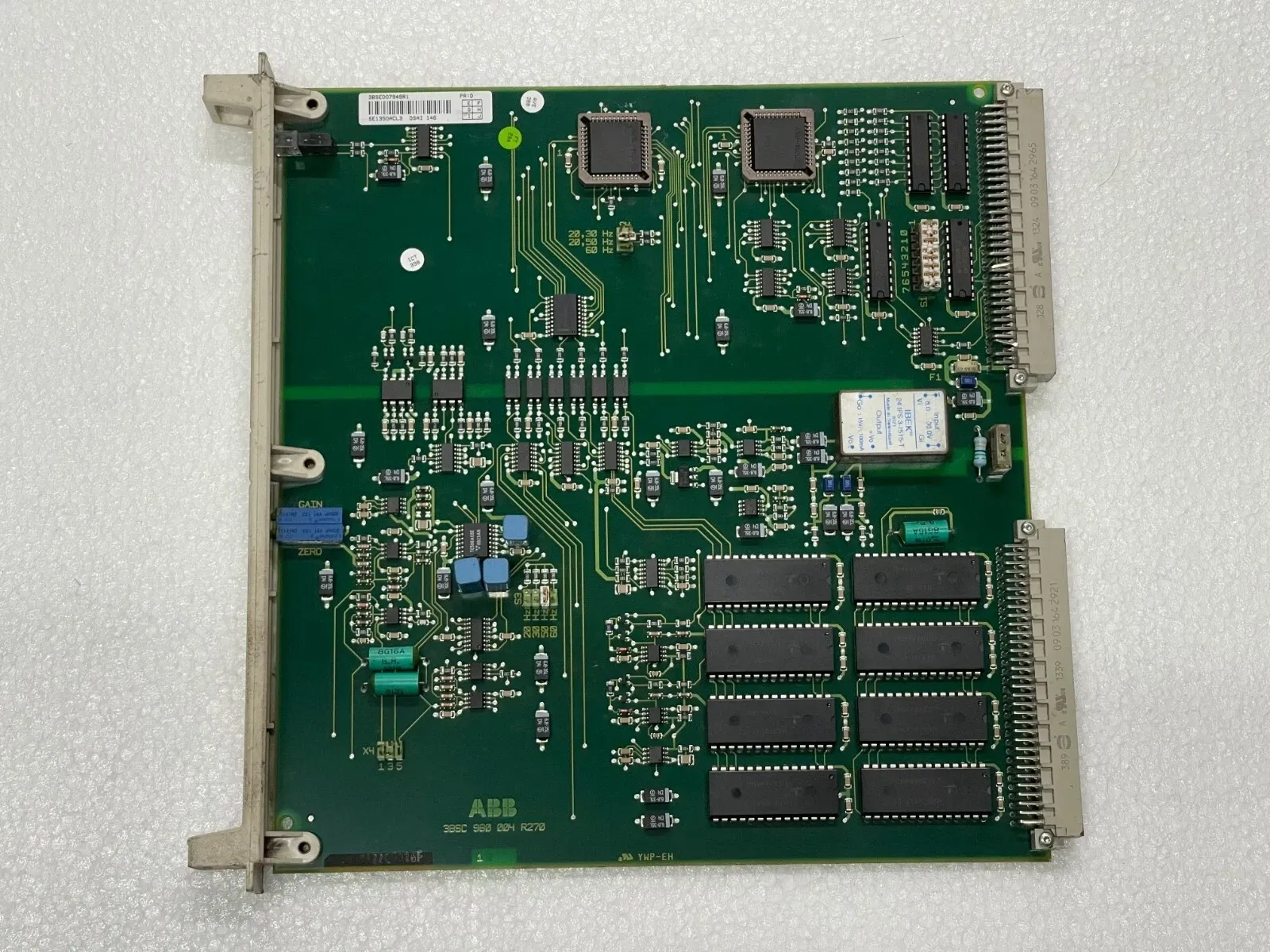

ABB DSAI146 3BSE007949R1 Analog Input Unit
Item Number:DSAI146 3BSE007949R1
Brand: ABB
Lead Time: In stock
Description:Analog Input Unit
Payment: T/T
Product Description
ABB DSAI146 3BSE007949R1 is an analog input unit designed for industrial temperature measurement. It belongs to the ABB Advant OCS series and is suitable for Pt100 three-wire temperature measurement. The main function is to connect a three-wire Pt100 thermal resistor sensor. The module provides 31 independent measurement channels and 1 reference channel, supports 12-bit + sign bit (expandable to 13 bits) high-precision measurement, and the measurement range can be configured from -100°C to +320°C or -200°C to +640°C.
Fuctions & Features
- Channel configuration: DSAI146 has 31 measurement channels and 1 reference channel for connecting three-wire Pt100 temperature sensors.
- Measurement range and accuracy: DSAI146 has a resolution of 12 or 13 bits, and can measure temperature ranges from -100℃ to +320℃, -40℃ to +40℃, -200℃ to +640℃, etc.
- Wire compensation: DSAI146 is designed for three-wire Pt100 sensors. When the cable wire resistance is the same, it can compensate for the effect of wire length on the measurement.
- Temperature measurement: DSAI146 can accurately measure different ranges of temperature with Pt100 sensors.
- Parameter setting and adjustment: DSAI146 can be adjusted by selecting input channels and corresponding database elements.
- Select a specific signal or change the CONV_PAR parameter in the database element to set the measurement range.
Specification
|
Parameter |
Value |
|
Description |
DSAI 146 Analog Inp. Unit 31 ch. Pt100 |
|
Product Type |
I/O Module |
|
Product Net Depth / Length |
324 mm |
|
Product Net Height |
22.5 mm |
|
Product Net Width |
234 mm |
|
Product Net Weight |
0.4 kg |
|
Current Consumption (A) (+5V) |
0.25 |
|
Current Consumption (A) (+24V) |
0.11 |
|
Tot. Power Dissipation (W) |
3.8 |
FAQs
Q: What is the brand?
A: ABB
Q: What is the type?
A:Analog Input Unit
Q: What is the warranty period?
A: 1 year.
Q: What is the delivery time?
A:in stock
Q: Where is the shipping location?
A: Xiamen.
Q: What is the payment method?
Answer: T/T (Telegraphic Transfer).
