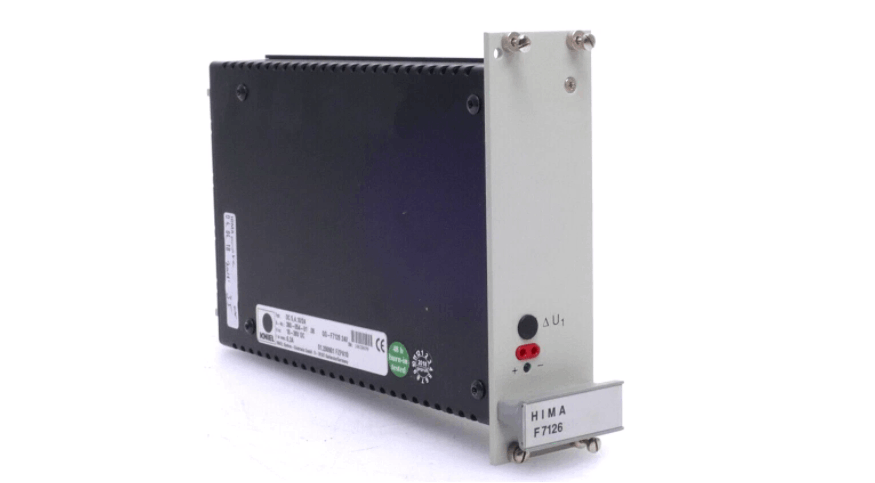

Hima F7126 Power Supply Module
Product Description
HIMA F7126 is a DC/DC power conversion module designed for PES H51q safety control system. It provides stable power supply from 24 V DC to 5 V DC. It has the characteristics of safety isolation, redundancy support and multiple protection.
When used redundantly, in order to avoid load imbalance, the output voltage difference does not exceed 0.025V. It is suitable for industrial automation and safety-critical systems (such as petrochemical, nuclear power, railway signaling, etc.).
Features of HIMA F7126
Voltage conversion:
Conversion from 24V DC input to 5V DC output is realized, and the output voltage can be adjusted steplessly within the range of 5V DC ± 0.5V.
Electrical safety:
Safe isolation between input and output voltage, with overvoltage protection (set to 6.5V / ± 0.5V) and current limiting (about 13A) functions.
Adjustment and testing:

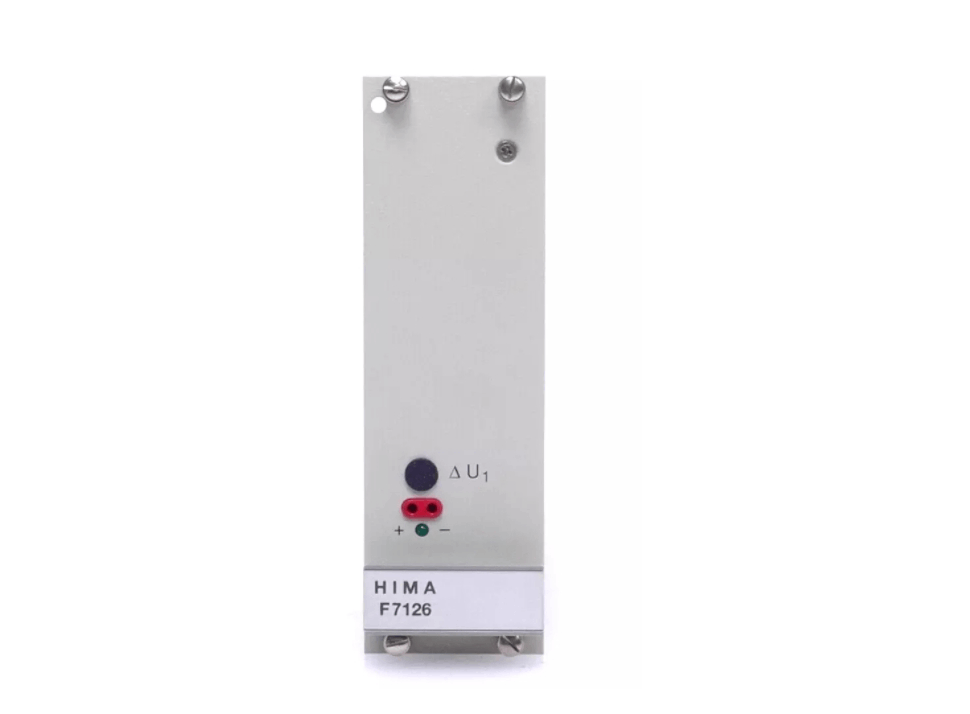

The front panel is equipped with a test socket and a potentiometer for adjusting the output voltage.
Specification
|
Parameter |
Details |
|
Operating data |
24 V DC, -15 … +20 %, rpp < 15% |
|
Primary fuse |
6.3 A slow - blow |
|
Output voltage |
5 V DC ± 0.5V adjustable without steps, factory adjustment: 5.4 V DC ± 0.025 V |
|
Output current |
10 A |
|
Current limitation |
approx. 13 A |
|
Overvoltage protection |
set to 6.5 V / ± 0.5V |
|
Efficiency rate |
≥ 77% |
|
Interference |
Limit class B according to VDE 0871/0877 |
|
Space requirement |
8 TE |
FAQs
Q: What is the brand?
A: HIMA
Q: What is the type?
Q: What is the warranty period?
A: 1 year.
Q: What is the product condition?
A: New.
Q: Where is the shipping location?
A: Xiamen.
Q: What is the payment method?
Answer: T/T (Telegraphic Transfer).
