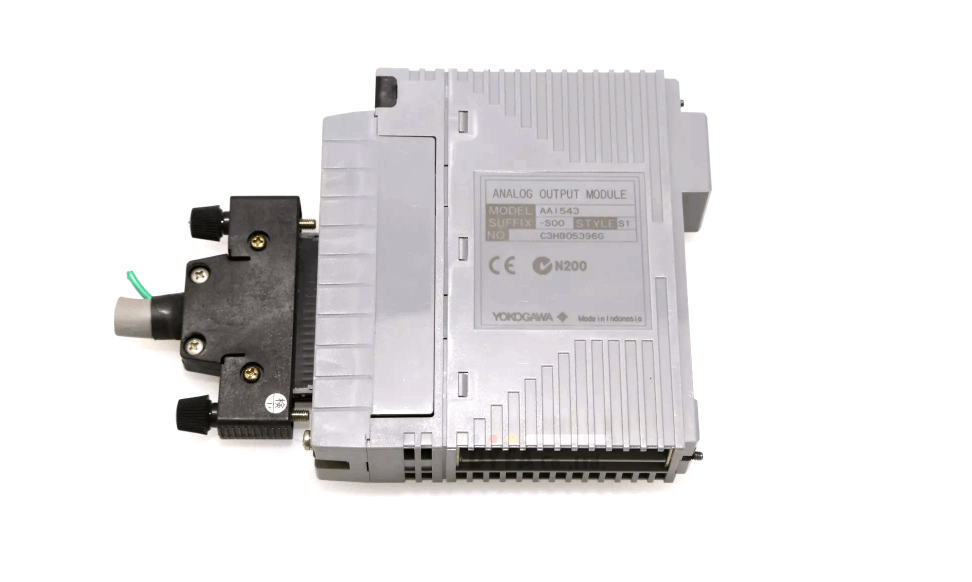

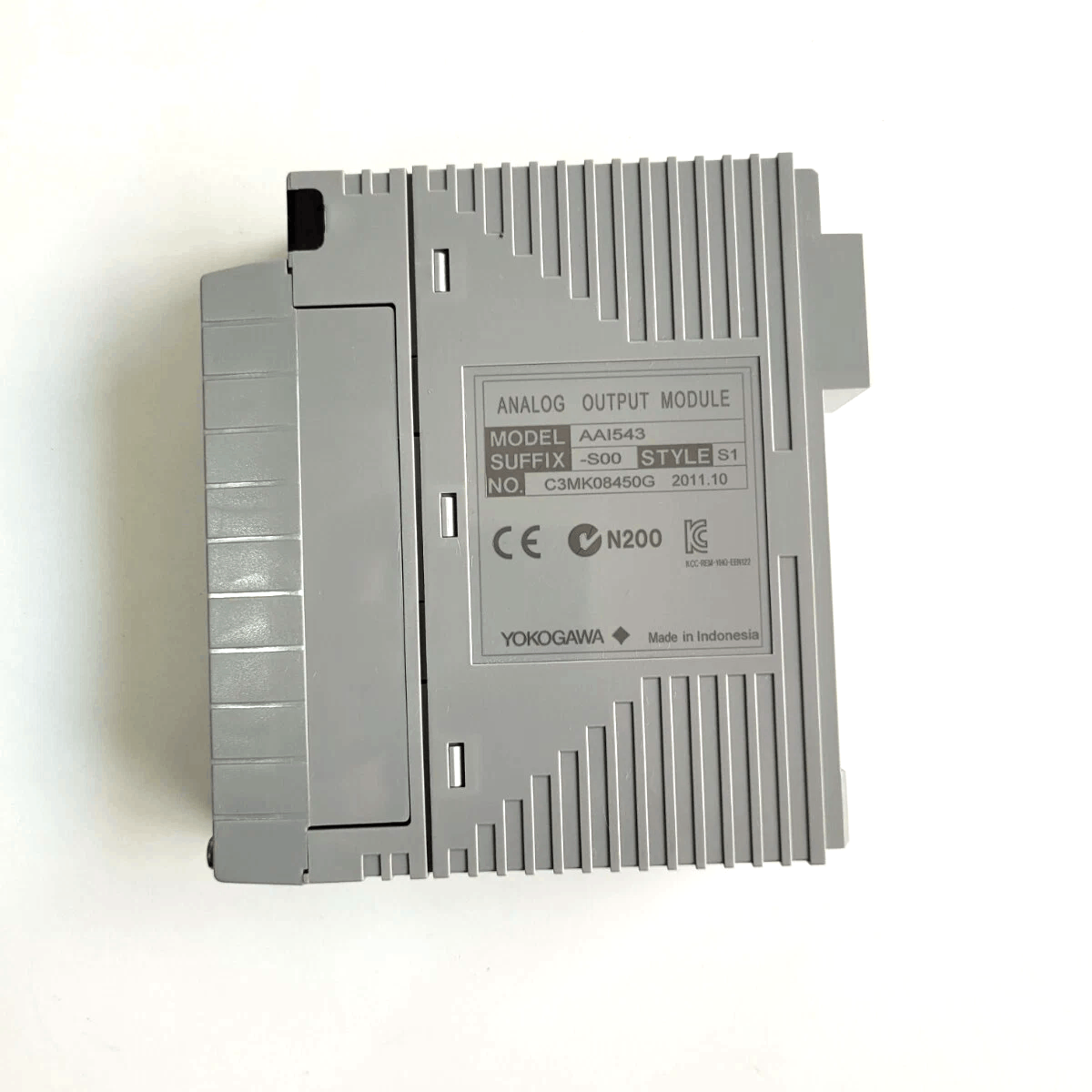

Yokogawa AAI543-S00 Analog Output Module
Item Number: AAI543-S00
Brand: Yokogawa
Lead Time: In stock
Description:Analog Output Module
Payment: T/T
Product Description
AAI543-S00 is an analog output module launched by Yokogawa. The suffix code "S" indicates the standard type and "00" indicates the basic type. The module can provide 16 channels of 4 - 20mA analog signal output and has dual redundant configuration function.
Suitable for industrial automation control systems (such as Yokogawa's CENTUM VP/DCS system), AAI543-00 supports crimping terminals, MIL connector cables or special cables (KS1), and the data update cycle is 10 ms, which is suitable for real-time control.
Fuctions & Features
- Signal range: 4–20 mA, supports HART communication (requires HART-enabled node unit).
- Accuracy: ±48 µA, temperature drift as low as ±16 µA/10°C.
- Load capacity: Allowable load resistance 0–750 Ω, compatible with most field devices.
- Wire break detection: Triggers an alarm when current drops below 0.65 mA.
- Between output and system: 1500 V AC (1 minute)*; reduced to 500 V AC when using dedicated cable. The withstand voltage of the MIL connector cable depends on the cable specifications.
Specification
|
Items |
Specifications |
|
Model |
AAI543-S00 |
|
Number of output channels |
16, isolated, standard switch - over response in redundant configuration (*3) |
|
Output signal |
4 to 20 mA |
|
Withstanding voltage |
Between output and system: 1500 V AC, for 1 minute (*4) |
|
Allowable load resistance |
0 to 750 Ω |
|
Circuit - open detection |
Less than 0.65 mA |
|
Accuracy |
±48 μA |
|
Data update period |
10 ms |
|
Drift due to ambient temperature change |
±16 μA/10 °C |
|
Maximum current consumption |
230 mA (5 V DC), 540 mA (24 V DC) |
|
Weight |
0.4 kg |
FAQs
Q: What is the brand?
A:Yokogawa
Q: What is the type?
A:Analog Output Module
Q: What is the warranty period?
A: 1 year.
Q: What is the delivery time?
A:in stock
Q: Where is the shipping location?
A: Xiamen.
Q: What is the payment method?
Answer: T/T (Telegraphic Transfer).
