Emerson 8750-CA-NS PAC8000 Controller Carrier
Item Number:8750-CA-NS
Brand:Emerson
Lead Time: In stock
Description:PAC8000 Controller Carrier
Payment: T/T
Product Description

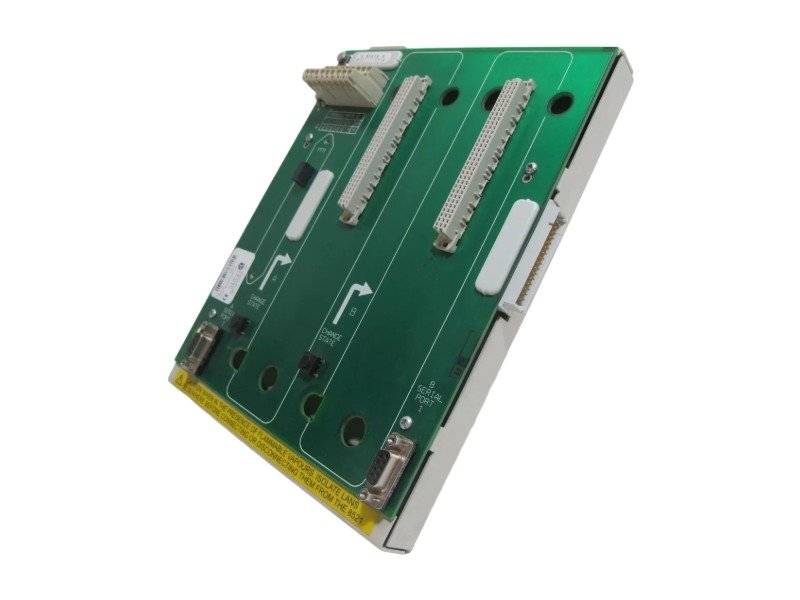

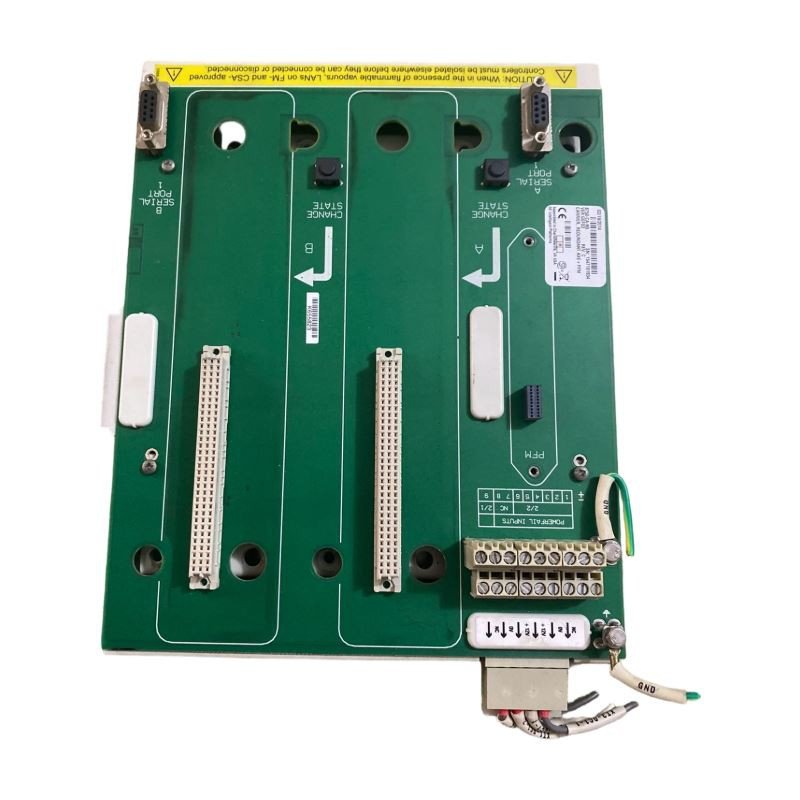

Emerson 8750-CA-NS PAC8000 controller carrier is the standard controller carrier for the SafetyNet system. It provides a mounting platform, power distribution, and signal connection hub for up to two SafetyNet controllers and associated power monitoring modules. It is the fundamental building block for building a SafetyNet control system cabinet.
Two carrier models are available:
8750-CA-NS (Standard): For general safety applications that do not require residual current fault detection.
8751-CA-NS (ELFD): Specifically designed for residual current fault detection in standard fire and gas applications.
Function & Features
- Change State Button: The Emerson 8750-CA-NS carrier features a manual Change State button on the front panel for each controller, used to manually switch between active and standby states in a redundant configuration or to instruct the standby controller to synchronize.
- Power Failure Input Terminals: The Emerson 8750-CA-NS features a terminal block that accepts the health status outputs of the 8913-PS-AC/8914-PS-AC power supplies. The Power Supply Monitor (8410-NS-PS) uses these terminals to detect faults in up to seven external power supplies.
- Power Supply Health Monitoring: The Emerson 8750-CA-NS monitors the health of up to two 8913-PS-AC or four 8914-PS-AC external power supplies, as well as the 12V power supply for intrinsically safe modules, when used.
Specifications
| Parameter | Details |
|---|---|
| Product Model | 8750-CA-NS (Standard Controller Carrier) |
| Matching Model | 8751-CA-NS (ELFD Earth Leakage Fault Detection Carrier) |
| I/O Carriers | - 8-module Carrier (8709-CA-08)- 4-module Carrier (8710-CA-04) |
| Railbus connector | male out |
| Serial port connectors | 9-pin, D-type (female) (×2) |
| Power Fail connections | screw terminals (×7 pairs) |
| Ground connection | M4 screw terminal (×1) |
| BFP0V connection | M4 screw terminal (×1) |
| Dimensions | 200 (w) x 253 (d) mm (footprint) |
| Height | 28 mm (top of circuit board); 55 mm (overall) |
| Weight | Approximately 1.43 kg |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
