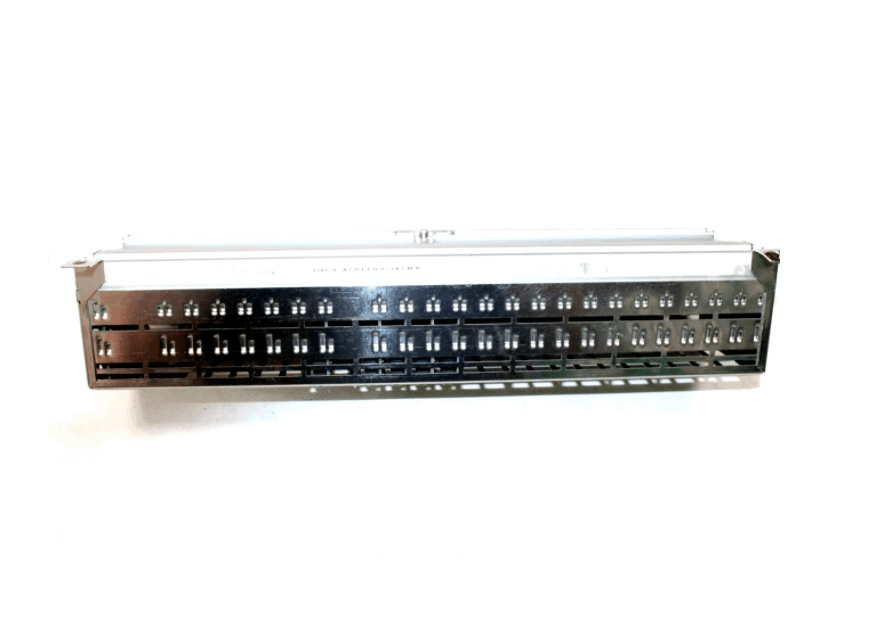

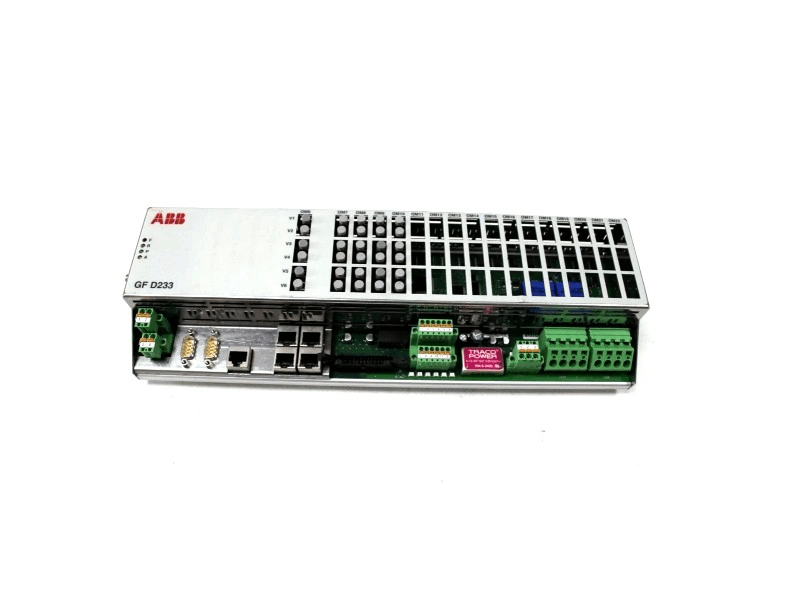

ABB GFD233A 3BHE022294R0101 DC Drive Control Board

ABB GFD233A 3BHE022294R0101 is a DC drive control board used in various industrial automation and control fields. The control board is a key component of ABB DCS 500 series DC drives. It is mainly responsible for accurately controlling the speed and torque of the DC motor to ensure its operation in various industrial environments. The following is a detailed overview of its functions, specifications and applications

Fuctions & Features

• Analog input range: The ABB GFD233A control board supports multiple input ranges such as -10 V to+10 V, 4 mA to 20 mA, and other ranges are also available.

• High input impedance: The input impedance of the ABB GFD233A control board is greater than 10 M Ω, which helps reduce interference and loss during signal transmission.

• Speed control: The ABB GFD233A control board compares and calculates the received set speed signal with the actual motor speed feedback signal.

• Torque control: The ABB GFD233A control board detects the current and other related parameters of the motor, combined with the load situation, calculates the current value that should be output to achieve the required torque, and then adjusts the conduction time and degree of the power device.

Specification

Appilications of ABB GFD233A 3BHE022294R0101 DC Drive Control Board

1.ABB GFD233A control board can be used in the marine energy industry to control the excitation system in tidal or wave power generation equipment.

2.ABB GFD233A control board can be used in the transportation field for the excitation system of electric vehicles such as electric trains and electric boats.

3.ABB GFD233A control board can be used in the scanning bed drive system of large medical imaging equipment (such as magnetic resonance imaging devices, computer tomography scanners, etc.), medical robots, etc.
