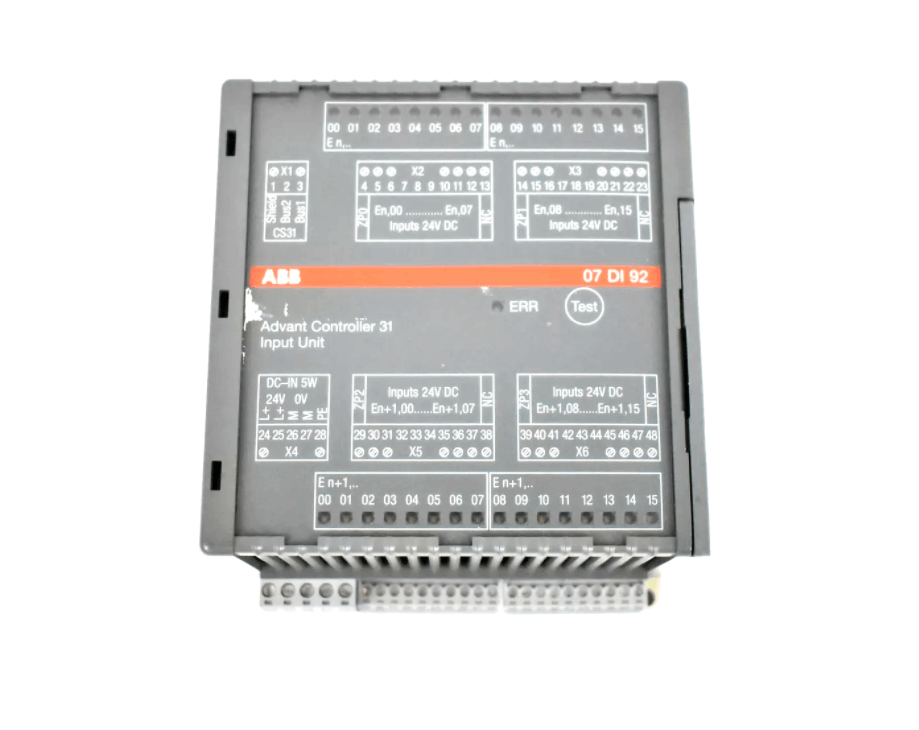

ABB 07DI92 GJR5252400R0101 Digital I/O Module 32DI
Item Number:07DI92 GJR5252400R0101
Brand: ABB
Lead Time: In stock
Description:Digital I/O Module
Payment: T/T
Product Description
ABB 07DI92 GJR5252400R0101 digital input and output module (32 digital inputs) is a remote module for the CS31 system bus, adapted to the AC31 system, with 32 24V DC digital inputs (1-wire). The 4 groups of inputs are electrically isolated from each other and the rest of the module, occupying 2 consecutive binary input addresses on the CS31 bus, powered by 24V DC, and the CS line connector is electrically isolated from the rest of the module.
Function & Features
- Input configuration: 32 24V DC (1-wire) digital inputs, divided into 4 groups and electrically isolated from each other and other parts of the module.
- System bus adaptation: ABB 07DI92 can be integrated into CS31-based control systems as a remote module of the CS31 system bus.
- Front panel interaction: 32 yellow LEDs display the input signal status; 3 red LEDs are used for fault alarms; the test button can trigger diagnosis, which is used to detect LEDs and view the address DIP switch status.
- Address setting: ABB 07DI92 sets the address through the DIL switch on the right side of the module. The address is read only during initialization (after power-on). Modifications during operation will take effect only after the next initialization.
Specifications
|
Item |
Specification Details |
|
Electrical Specifications |
|
|
Supply Voltage |
24 V DC |
|
Input Signal Voltage |
24 V DC |
|
Cable Cross-Section |
0.08 - 1.5 mm² |
|
Maximum Operating Altitude |
2000 m |
|
Physical Specifications |
|
|
Product Dimensions (Net) |
Depth/Length: 85 mm, Height: 140 mm, Width: 120 mm |
|
Product Weight (Net) |
0.59 kg |
|
Product Gross Weight |
0.59 kg |
|
Interface Specifications |
|
|
CS31 Slave Fieldbus Interface |
|
|
Serial Port |
RS - 485, CS31 Serial Port 1 Type |
|
Other Specifications |
|
|
Protection Degree |
IP20 |
|
Terminal Type |
Pluggable Screw Terminals |
|
Input Grouping |
32 inputs divided into 4 groups |
|
Bus Address Occupancy |
Occupies two digital input addresses on the CS31 system bus |
|
Electrical Isolation |
The 4 groups of inputs are electrically isolated from each other and from the rest of the unit; the system bus connection is electrically isolated from the rest of the unit |
FAQ
Q: What is the brand?
A: ABB
Q: What is the type?
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
