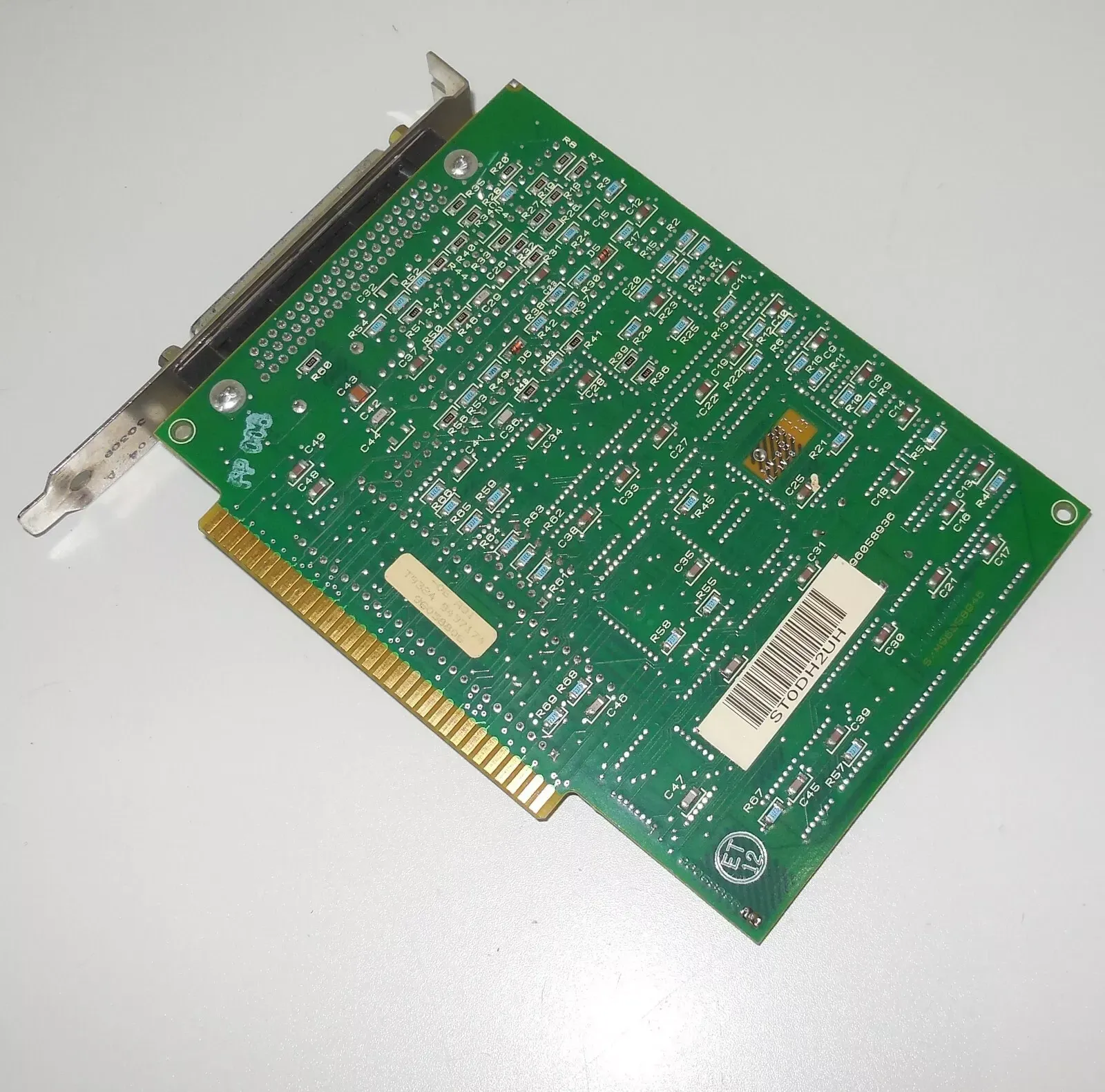

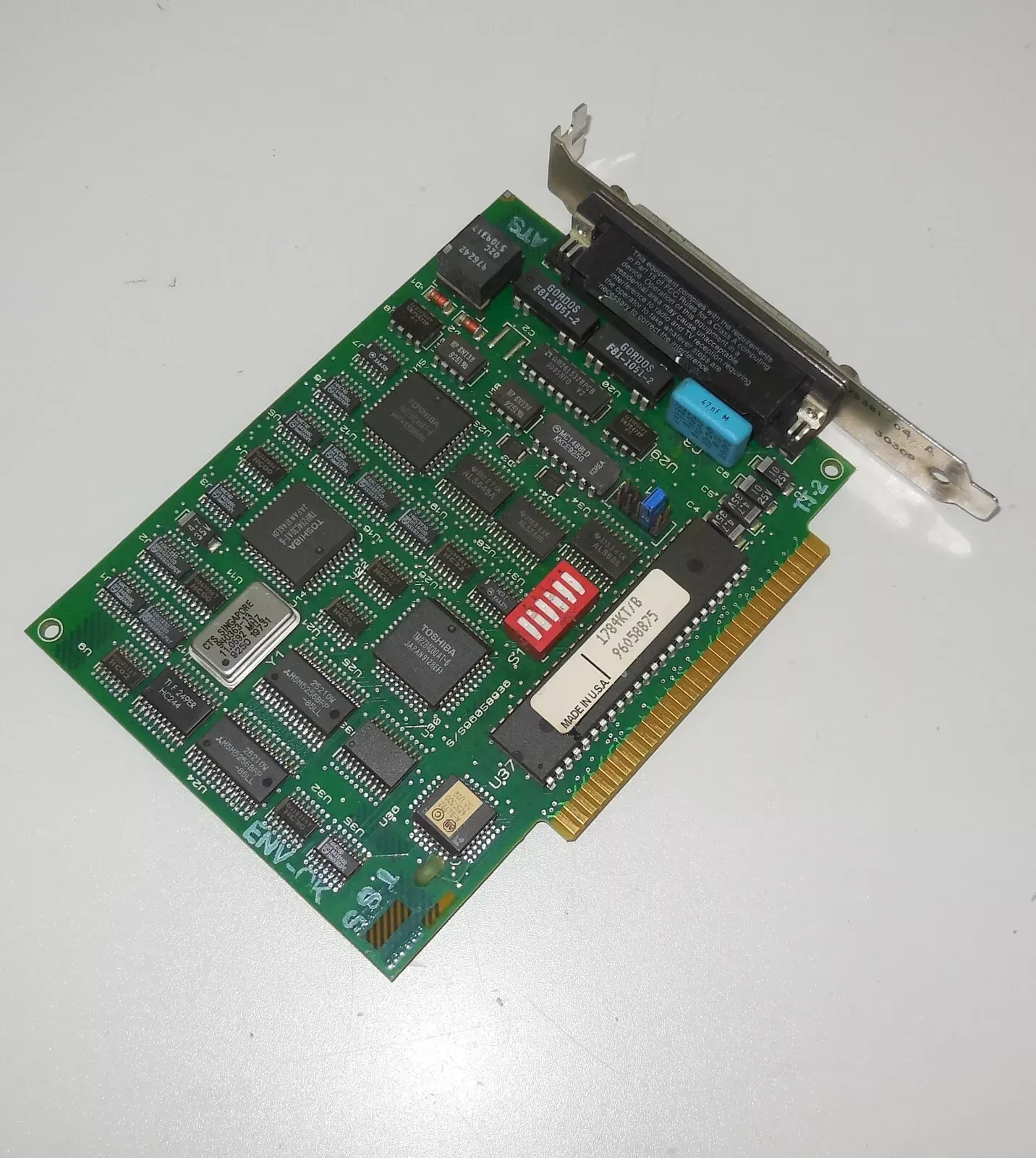

Allen-Bradley 1784-KT Communication Interface Card
Item Number: 1784-KT
Brand: Allen-Bradley
Lead Time: In stock
Description:Communication Interface Card
Payment: T/T
Product Description
The Allen-Bradley 1784-KT Communications Interface Card is an ISA half-size 8-bit card that plugs into an 8-bit or 16-bit ISA expansion slot. It enables a personal computer, workstation, or terminal to communicate with Allen-Bradley processors and controllers via a direct connection or a Data Highway Plus network. The 1784-KT transmits and receives data via dual-port memory and is directly controlled by Allen-Bradley software.
Fuctions & Features
- The 1784-KT can connect to a PLC-2, PLC-3 or PLC-5 series programmable controller via a single cable.
- The 1784-KT accesses the Data Highway Plus network as an active node and communicates with devices such as PLC-5, PLC-5/250, etc.
- The 1784-KT interacts with the host processor through onboard dual-port memory, transmitting pre-formatted Data Highway Plus data packets.
- The 1784-KT is combined with 6001-F1E software or INTERCHANGE software to customize the Data Highway Plus network interface.
- The 1784-KT is supported by 6001-FIE software, 6200 software, INTERCHANGE software, Advisor PC (E Series and higher), and ControlView software.
Specification
|
Item |
Details |
|
Module Output Connector |
62 Pin D - shell |
|
Outputs |
PLC - 2 Serial Interface, PLC - 3 Serial Interface, Data Highway Plus |
|
Power Requirements |
+5V DC @.4A (2W), ±12V DC @.04 (.48W) respectively |
|
Operating Temperature |
32 to 130°F (0 to 55°C) |
|
Humidity |
5 to 95% Noncondensing |
FAQs
Q: Does it support redundancy?
A: It does not support controller-level redundancy (need to upgrade to the ControlLogix series).
Q: What is the maximum number of expandable I/O points?
A: It depends on the backplane capacity
Q: How to upgrade the firmware?
A: Update online through Studio 5000 or ControlFlash tool.
