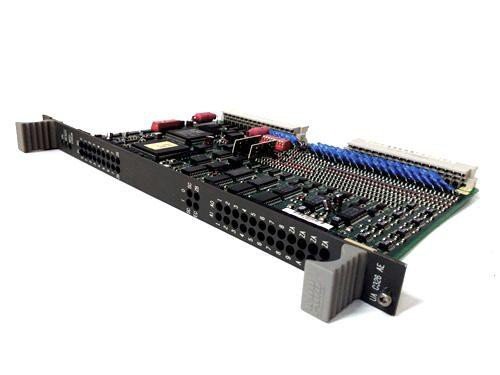

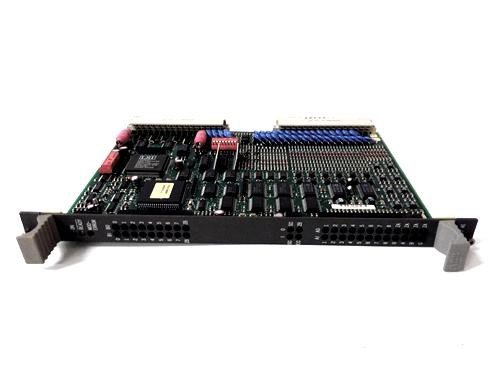

ABB UAC326AEV1 HIEE401481R1 HI033805-310/22 HI033805-310/32 Analog Digital I/O Card

ABB UAC326AEV1 HIEE401481R1 analog/digital input/output (I/O) card is an important part of ABB automation system with multi-channel I/O function. It is good at processing analog signals. Through its multiple analog input channels, it is connected to various sensors that convert physical parameters such as temperature, pressure and flow into voltage or current signals for processing. In terms of analog output, when the system needs to perform analog control on external devices, the digital signal processor of this card generates signals according to the control instructions. Then, these signals are converted into analog voltage signals through DAC circuits and sent to related devices.

Fuctions & Features

• Analog input: ABB UAC326AEV1 connects to various sensors through multiple analog input channels. The sensors convert physical quantities such as temperature, pressure, and flow into corresponding voltage or current signals.

• Analog output: When the system needs to perform analog control on external devices, the digital signal processor of the ABB UAC326AEV1 card will generate corresponding signals according to the control instructions, and then convert the signals into analog voltage signals through the DAC circuit and output them to the device.

• Digital input: The digital input channel is used to connect digital devices. The digital signals output by the device, such as high level (logic "1") and low level (logic "0"), are transmitted to the ABB UAC326AEV1 card through the digital input circuit. The processed digital signals are then transmitted to the processor in the card for logical judgment and processing.

• Digital output: The processor in the ABB UAC326AEV1 card generates corresponding digital control signals according to the control program and the results of logical operations. These signals are transmitted to external digital devices through the digital output circuit.

Specification
