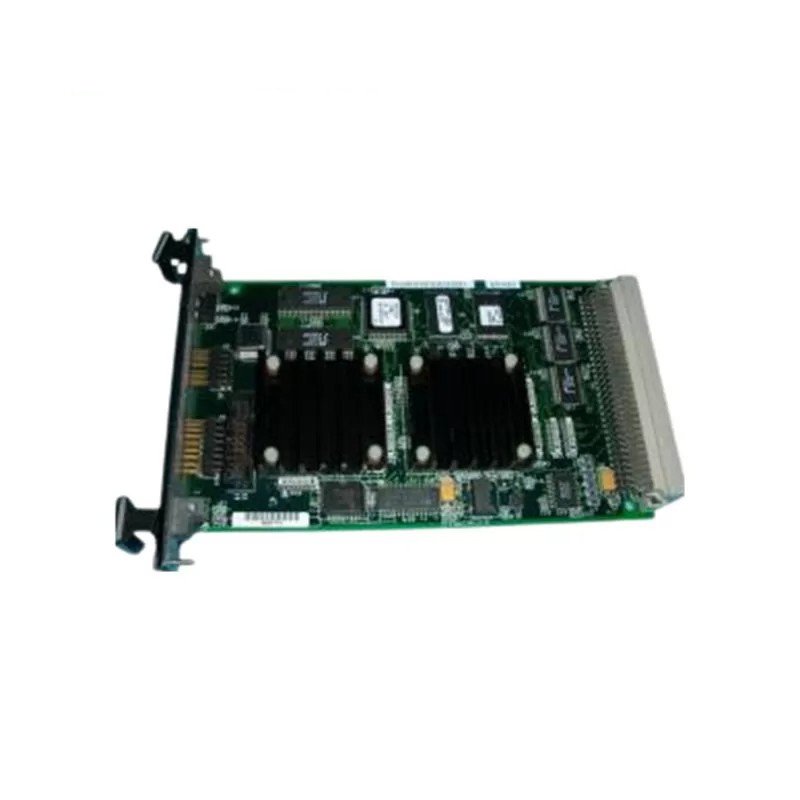

GE Fanuc IS200DSPXH1D Digital Signal Processor Board

The GE Fanuc IS200DSPXH1D Digital Signal Processor Board is engineered for advanced industrial drive systems. It features prominently in GE’s Innovation Series drives and EX2100 Excitation Control systems.

Key Features and Functions

• Digital Signal Processing (DSP): The board integrates a powerful DSP processor. This enables real-time handling of complex control algorithms and calculations.
• Control Functions: It manages the bridge, motor regulator, and gating operations in Innovation Series drives. Additionally, it controls generator field functions in EX2100 Excitation Control systems.
• Interface: The board includes interfaces for communication with other system components.
• Firmware: It contains firmware that defines specific control functions for both exciter and drive products.

Applications

• Industrial Drives: The IS200DSPXH1D excels in applications requiring precise motor control. It regulates speed, torque, and other key parameters.
• Excitation Control: The board ensures stable and efficient operation in generator excitation control systems.

Technical Specifications

• Manufacturer: GE Industrial Systems
• Series: EX2100 Excitation Control
• External Dimensions: 5 inches wide, 6.5 inches long, and 0.5 inches deep
• Weight: 5 ounces
• Wiring Board: Printed
• Regulators: Field Voltage and Field Current
• Functional Acronym/Abbreviation: DSPX
• Group Variation: H1D, Conformal Coating
• Location: Control Rack
