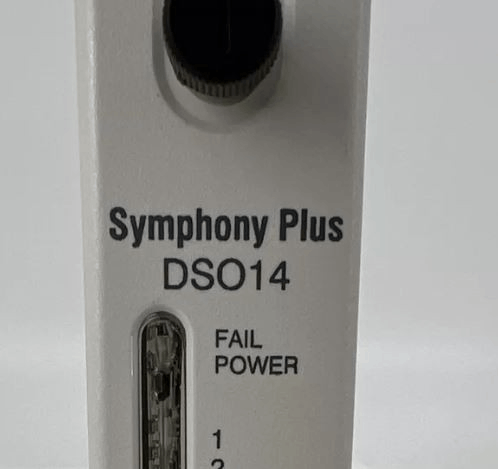

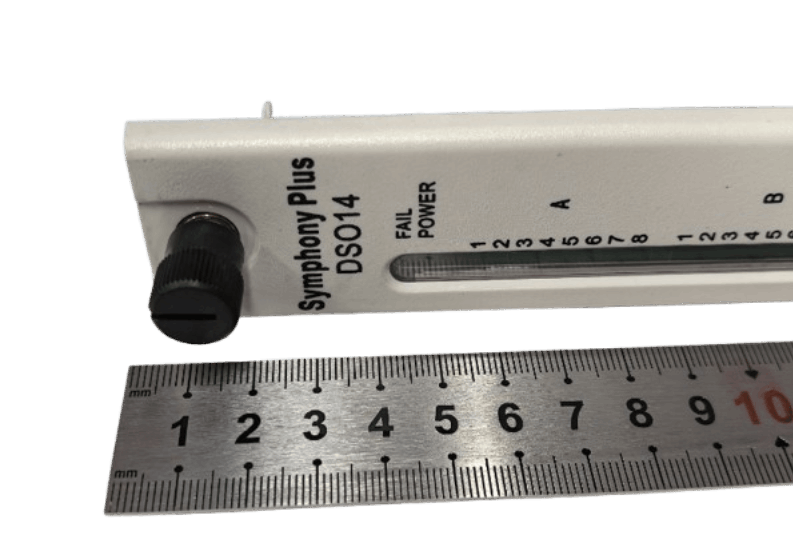

ABB SPDSO14 DO Module, 16 CH, Open Collector
Item Number:SPDSO14
Brand: ABB
Lead Time: In stock
Description:DO Module, 16 CH, Open Collector
Payment: T/T
Product Description
ABBSPDSO14 DO module processes up to 16 digital open-collector control outputs for a Symphony Plus controller. Each channel is optically isolated and can switch 24 VDC at 250 mA and 48 VDC at 125 mA. The module can cable-connect to solid state relays on the NTDO02 termination unit. Optionally, the module can also cable-connect to a relay assembly to drive electromechanical relays.
Function & Features
- 16 open collector outputs: Each channel is isolated by independent optocouplers to avoid signal interference.
- Load capacity: 250 mA/channel at 24 VDC, 125 mA/channel at 48 VDC,Can directly drive solid-state relays (via NTDO02 terminal unit) or external electromechanical relays.
- Terminal unit connection: SPDSO14 quickly connects to NTDO02 terminal unit via cable.
Specifications
|
Parameter |
Specification |
|
Power requirements |
5 VDC, ± 5% at 275 mA typical |
|
Digital input channels |
16 optically isolated, independently configured, open - collector channels |
|
Load voltage |
24 VDC at 250 mA max. 48 VDC at 125 mA max. |
|
Ambient temperature |
0 °C to 70 °C (32 °F to 158 °F) |
|
Category |
DO01 |
DO02 |
|
Number of Output Channels |
16 Digital Outputs |
16 Digital Outputs |
|
Output Voltage |
24 - 48 VDC |
24/48 VDC |
|
Maximum Output Current |
250 mA per channel |
250 mA per channel |
|
Protection Function |
None |
Short Circuit (SC) Protection |
