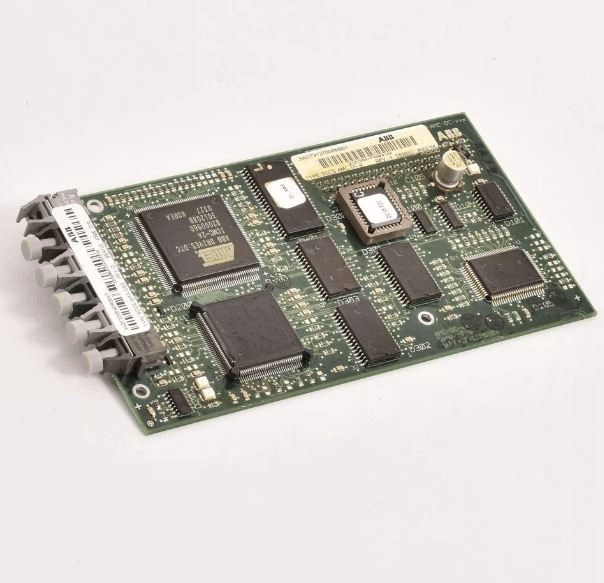

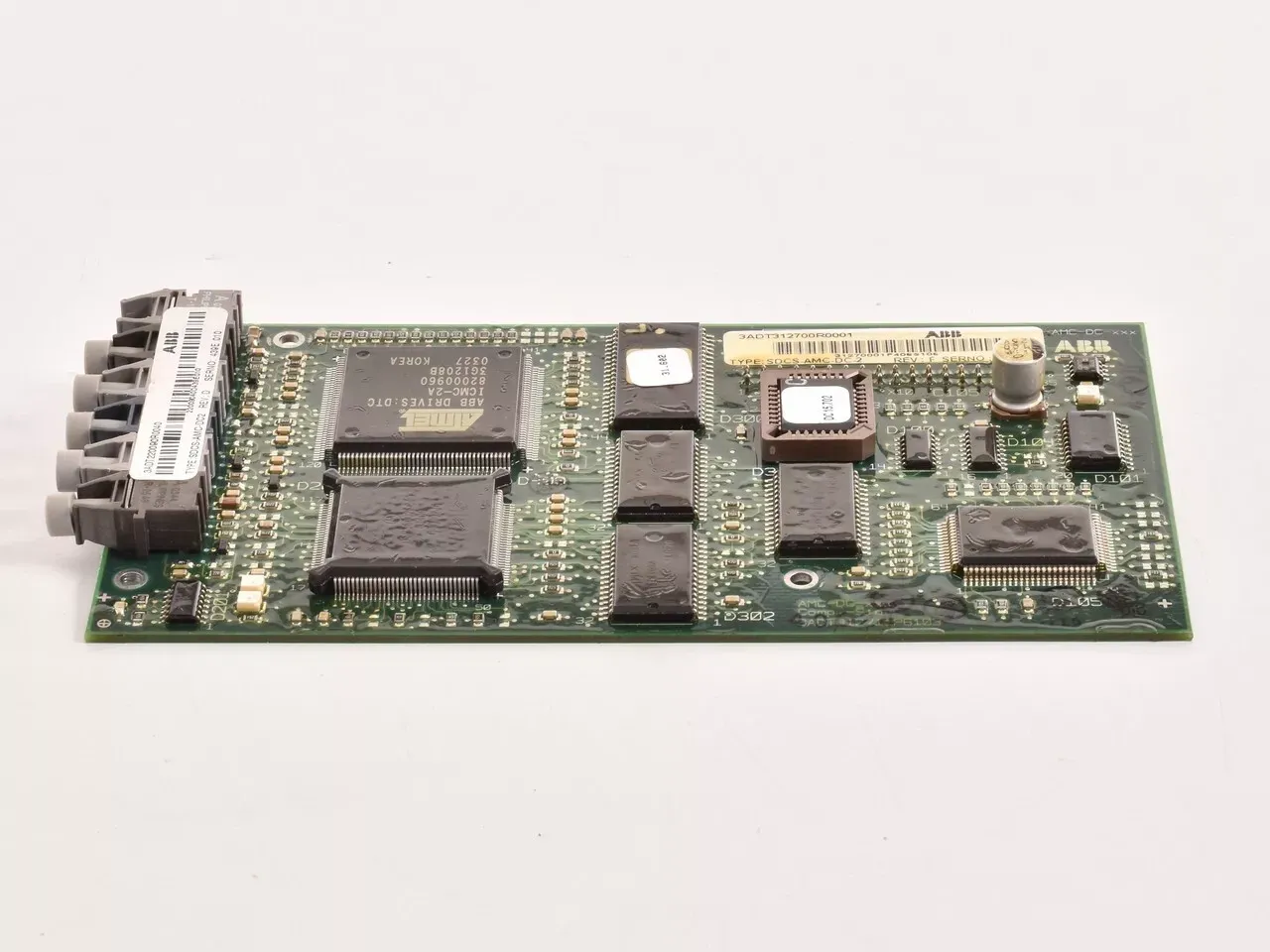

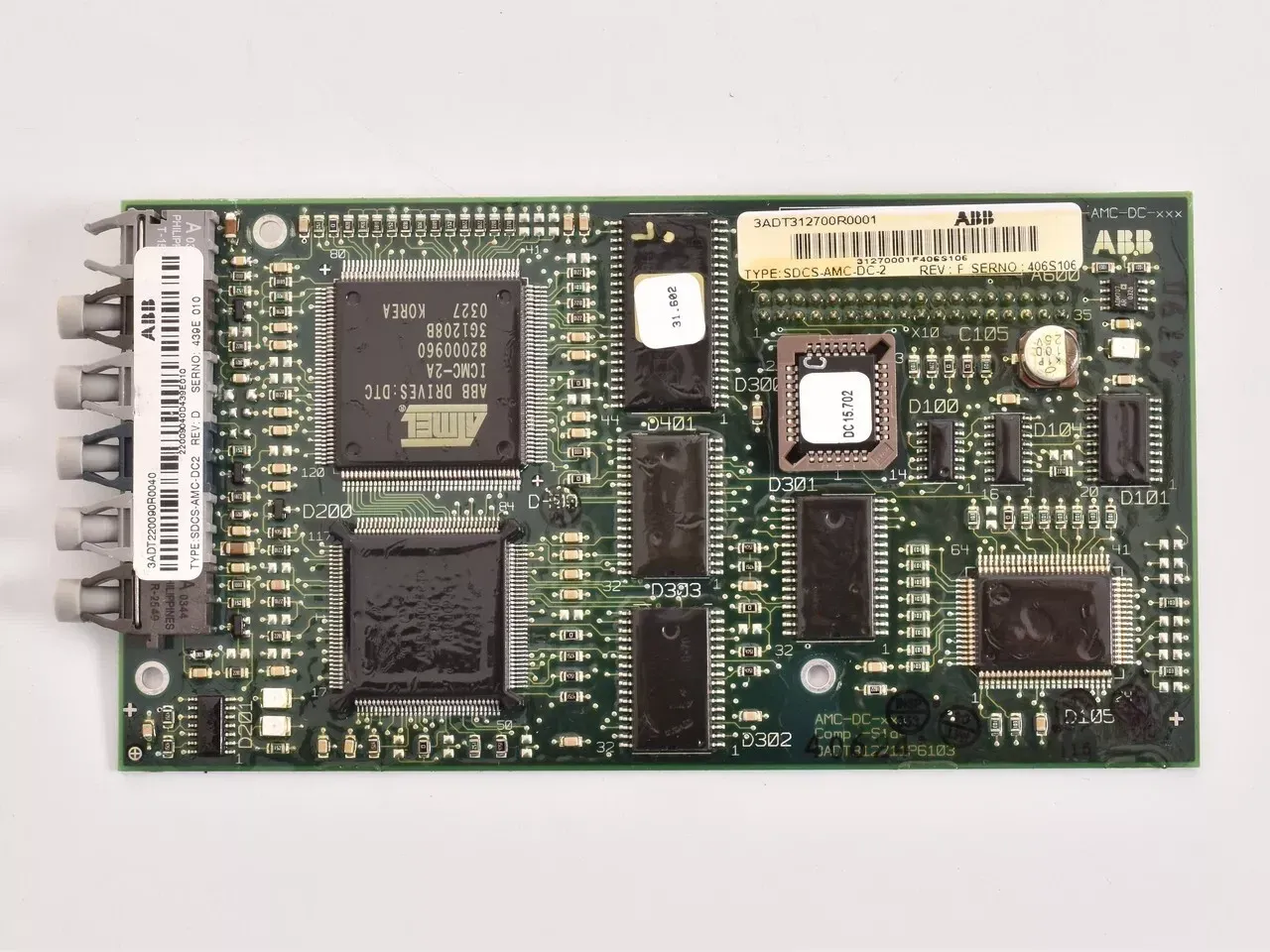

ABB SDCS-AMC-DC-2 3ADT312700R0001 Control Unit
Item Number:SDCS-AMC-DC-2 3ADT312700R0001
Brand: ABB
Lead Time: In stock
Description:Control Unit
Payment: T/T
Product Description
ABB SDCS-AMC-DC-2 3ADT312700R0001 Control Unit is a specialized control board designed to work in conjunction with a DCS 600 module equipped with an SDCS-CON-2 board and S15.xxx software. It features an independent controller with advanced functionalities for speed regulation, torque reference generation, and communication with overriding control systems. The board is equipped with three optical channels for high-speed data transmission and supports various control and communication tasks.
Fuctions & Features
Software structure and functions:
- Torque reference generation: The SDCS-AMC-DC-2 software structure is divided into two parts. The first part consists of the speed regulator and its additional functions, which is used to generate the torque reference.
- Control and regulation programming: The second part can be programmed for control and regulation according to its own characteristics.
- Data processing and transmission: The received data is evaluated, the torque reference is generated and transmitted to the CON-2 control board, and the actual value of CON-2 is read, evaluated and retransmitted to the upper control.
Optical channel functions:
- Channel 0: SDCS-AMC-DC-2 is used to transfer data from the upper control (such as FCI, APC2, AC80, fieldbus adapter module Nxxx - xx, AC800M, etc.) or through the adapter module of other controllers to the DCS600 drive.
- Channel 2: SDCS-AMC-DC-2 is the master-slave channel, which is used to operate two or more drives that are dependent on each other. The commands and values required for this application are generated on this board.
- Channel 3: SDCS-AMC-DC-2 is used to connect the PC tool DriveWindow for debugging and maintenance.
Specification
|
Specification |
Details |
|
Board Compatibility |
Must be used with a DCS 600 module equipped with a SDCS - CON - 2 board including software S15.xxx |
|
Controller Functionality |
Software structure in two sections: first for speed regulator and torque reference production; second for custom control and regulation programming. Evaluates received data for torque reference transmission and processes CON - 2 actual values |
|
Optical Channels |
Channel 0: Communicates data from overriding control to DCS600 - drive. Channel 2 (Master - Follower): Operates multiple dependent drives. Channel 3: Connects PC tool (DriveWindow) |
|
Data Transmission Speed |
Max. 4 Mb for each optical channel |
|
Difference from Classic Board |
Identical except for the assembly of optical components for channel 0 and 2 |
|
Color of Optical Components |
5 Mb ⇒ blue (maximum 30 mA); 10 Mb⇒ dark grey (maximum 50 mA) |
