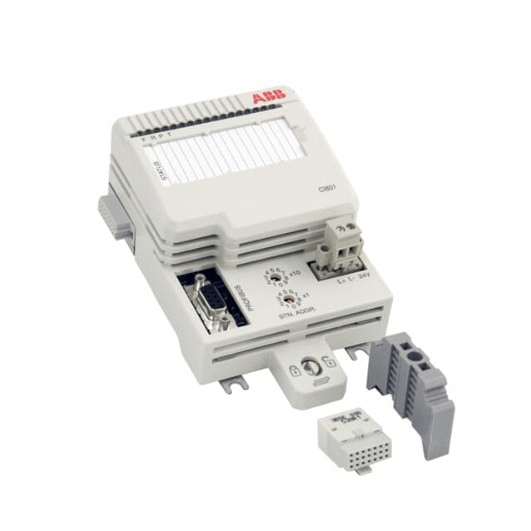

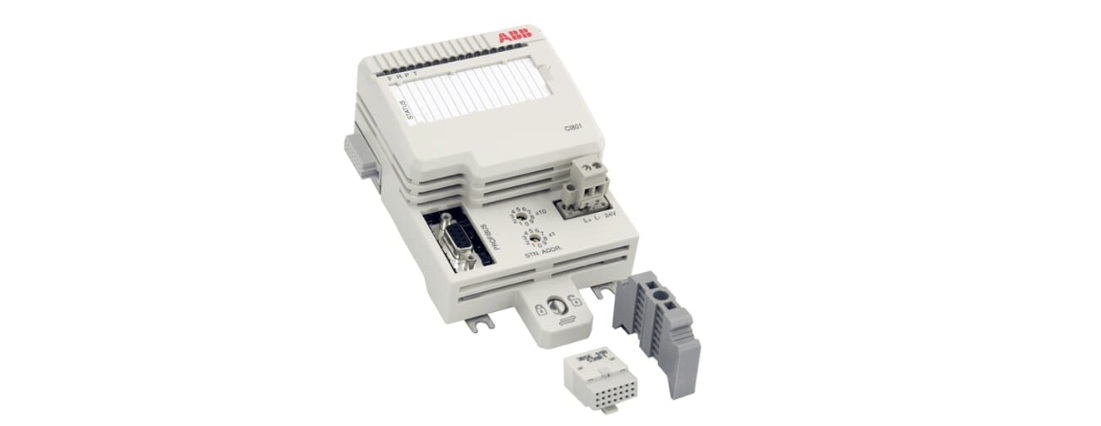

ABB CI801/CI801-EA 3BSE022366R1 PROFIBUS FCI S800 Interface
Item Number:CI801/CI801-EA 3BSE022366R1
Brand: ABB
Lead Time: In stock
Description:PROFIBUS FCI S800 Interface
Payment: T/T
Product Description
ABB CI801/CI801-EA 3BSE022366R1 is a PROFIBUS FCI S800 interface module that is part of the S800 I/O system. The system is a comprehensive, distributed and modular process I/O system that communicates with host controllers and PLCs via industrial standard fieldbuses.
The CI801 module is a configurable communication interface, and the basic system software does not support I/O modules such as DI825, DI830, DI831, DI885, AI880, DI880 and DO880. The module is supplied with 1 power connector and 1 TB807 module bus terminator to connect to the controller via the PROFIBUS-DPV1 fieldbus.
Function & Features
- PROFIBUS DP PROFIBUS-DPV1 fieldbus interface.
- Supervisory functions of I/O ModuleBus
- Isolated power supply to I/O modules
- OSP handling and configuration
- Input power fused
- Hot Configuration In Run
- HART pass-through
Specifications
|
Item |
Specification Details |
|
Model |
CI801/CI801-EA |
|
Order Number |
3BSE022366R1 |
|
Marine Certifications |
ABS, BV, DNV-GL, LR |
|
Operating Temperature |
0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C |
|
Storage Temperature |
-40 to +70 °C (-40 to +158 °F) |
|
Pollution Degree |
Degree 2, IEC 60664-1 |
|
Physical Dimensions |
Width: 85.8 mm (3.38 in.) Height (including latch): 136 mm (5.35 in.) Depth: 58.5 mm (2.30 in.) |
|
Weight |
0.3 kg (0.66 lbs. |
