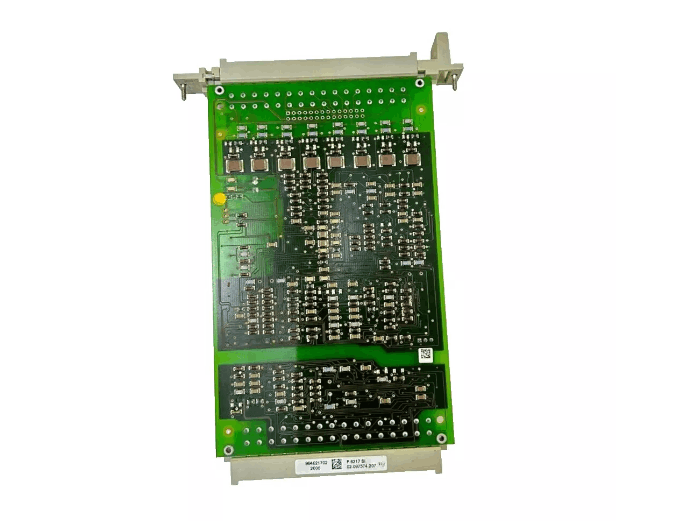

Hima F6217 8-channel Analog Input Module
Item Number:F6217
Brand:HIMA
Lead Time: In stock
Description:8-channel Analog Input Module
Payment: T/T
Product Description
HIMA F6217 is a safety-related 8-channel analog input module for industrial safety systems (e.g. SIL3 applications). The module contains a redundant processor system for self-test and fault detection, and it supports current (0/4–20 mA) and voltage (0–5/10 V) inputs with 12-bit resolution and safe isolation.
Function & Features
HIMA F6217 redundant processor system self-test functions include:
AD converter linearity test
Channel crosstalk detection
Input filter function check
IO bus communication test
Microcontroller and memory self-test
Unused channel handling
For unused 0…5 V voltage inputs, jumpers are used for termination; unused current inputs are terminated with shunts, and the potentiometer in the cable connector is used to terminate unused voltage inputs.
Specifications
|
Parameter |
Specification |
| Model | F6217 |
|
Input Voltage |
0...5.5 V |
|
Max. Input Voltage |
7.5 V |
|
Input Current |
0...22 mA (via shunt) |
|
Max. Input Current |
30 mA |
|
Shunt Resistor (R*) |
250 Ω; 0.05%; 0.25 W; T<10 ppm/K; P/N: 00 0710251 |
|
Resolution |
12-bit (0 mV = 0; 5.5 V = 4095) |
|
Measurement Update |
50 ms |
|
Safety Time |
< 450 ms |
|
Input Resistance |
100 kΩ |
|
Time Constant (Filter) |
~10 ms |
|
Basic Error |
0.1% at 25°C |
|
Operating Error |
0.3% at 0...+60°C |
|
Safety-Related Error Limit |
1% |
|
Dielectric Strength |
200 V against GND |
|
Space Requirement |
4 TE (4 x 5.08 mm = 20.32 mm) |
|
Power Consumption |
5 V DC: 80 mA; 24 V DC: 50 mA |
Notes:
Shunt Resistor: Required for current inputs (P/N provided).
Safety Timing: Includes filter and processing delays.
FAQ
Q: What is the brand?
A: HIMA
Q: What is the type?
A:8-channel Analog Input Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Loading comments...
Hima F6217 8-channel Analog Input Module
Item Number:F6217
Brand:HIMA
Lead Time: In stock
Description:8-channel Analog Input Module
Payment: T/T
Product Description
HIMA F6217 is a safety-related 8-channel analog input module for industrial safety systems (e.g. SIL3 applications). The module contains a redundant processor system for self-test and fault detection, and it supports current (0/4–20 mA) and voltage (0–5/10 V) inputs with 12-bit resolution and safe isolation.
Function & Features
HIMA F6217 redundant processor system self-test functions include:
AD converter linearity test
Channel crosstalk detection
Input filter function check
IO bus communication test
Microcontroller and memory self-test
Unused channel handling
For unused 0…5 V voltage inputs, jumpers are used for termination; unused current inputs are terminated with shunts, and the potentiometer in the cable connector is used to terminate unused voltage inputs.
Specifications
|
Parameter |
Specification |
| Model | F6217 |
|
Input Voltage |
0...5.5 V |
|
Max. Input Voltage |
7.5 V |
|
Input Current |
0...22 mA (via shunt) |
|
Max. Input Current |
30 mA |
|
Shunt Resistor (R*) |
250 Ω; 0.05%; 0.25 W; T<10 ppm/K; P/N: 00 0710251 |
|
Resolution |
12-bit (0 mV = 0; 5.5 V = 4095) |
|
Measurement Update |
50 ms |
|
Safety Time |
< 450 ms |
|
Input Resistance |
100 kΩ |
|
Time Constant (Filter) |
~10 ms |
|
Basic Error |
0.1% at 25°C |
|
Operating Error |
0.3% at 0...+60°C |
|
Safety-Related Error Limit |
1% |
|
Dielectric Strength |
200 V against GND |
|
Space Requirement |
4 TE (4 x 5.08 mm = 20.32 mm) |
|
Power Consumption |
5 V DC: 80 mA; 24 V DC: 50 mA |
Notes:
Shunt Resistor: Required for current inputs (P/N provided).
Safety Timing: Includes filter and processing delays.
FAQ
Q: What is the brand?
A: HIMA
Q: What is the type?
A:8-channel Analog Input Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
