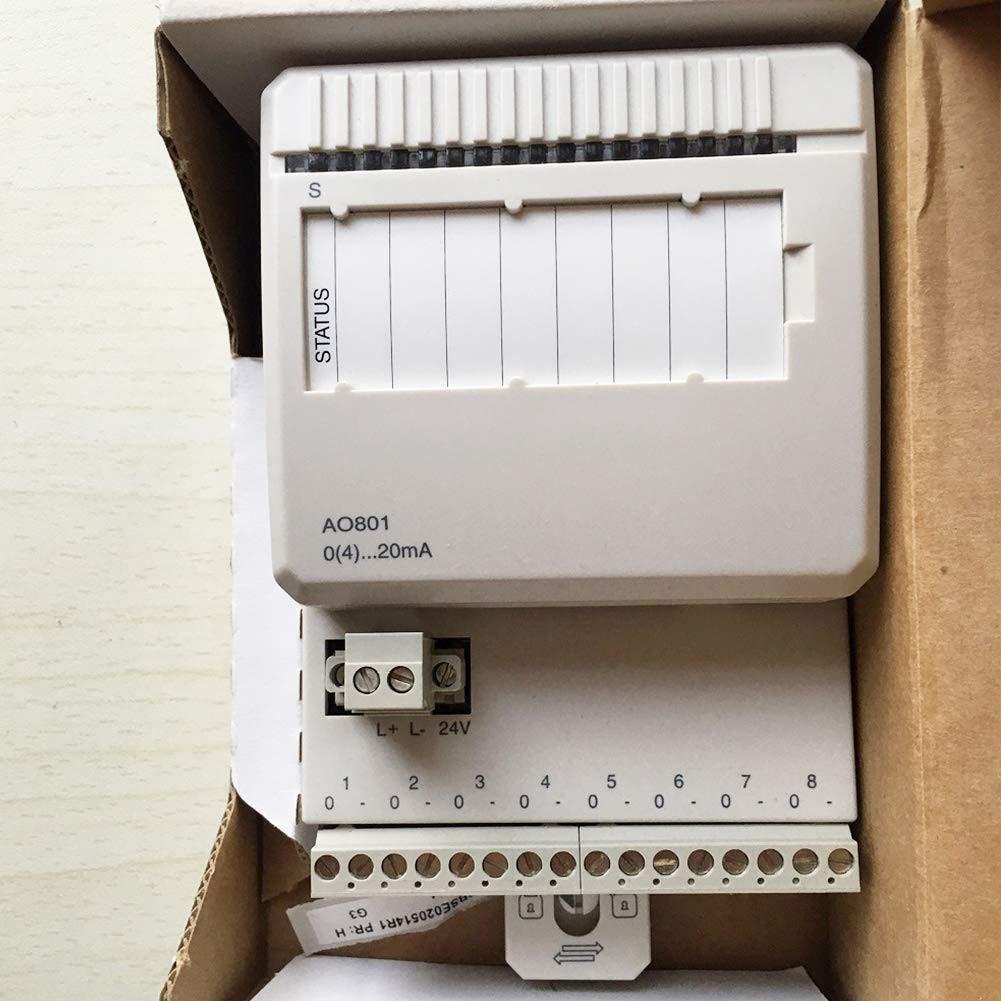

ABB AO801 3BSE020514R1 Analog Output Module
Item Number:AO801 3BSE020514R1
Brand: ABB
Lead Time: In stock
Description:Analog Output Module
Payment: T/T
Product Description
ABB AO801 3BSE020514R1 is an analog output module with 8 unipolar analog output channels and cyclic self-diagnosis. When the internal power supply is low, the module will enter the initialization (INIT) state and no signal will be output.The AO801 Analog Output Module has 8 unipolar analog output channels.The following is a detailed description of the functions, features and specifications of the ABB AO801 3BSE020514R1 Analog Output Module：
Fuctions & Features
- ABB AO801 3BSE020514R1 is an analog output module with 8 unipolar analog output channels and cyclic self-diagnosis. When the internal power supply is low, the module will enter the initialization (INIT) state and no signal will be output.
- Multi-channel output: ABB AO801 has 8 output channels and can output 0...20mA and 4...20mA signals.
- Fault protection: ABB AO801 has OSP (Output Signal Processing) function, which can set the output to a predetermined state when an error is detected.
- Short circuit protection: ABB AO801 analog output can be short-circuited to ZP or + 24V to prevent module damage or system operation caused by short circuit.
Specification
|
Parameter |
Value |
|
Resolution |
12-bit |
|
Groupwise isolated from ground |
|
|
Under/Over Range |
-15% / +15% |
|
Output Load |
Max 850 Ω |
|
Error |
0.1% |
|
Temperature Drift |
Typical 30 ppm/°C, Max 50 ppm/°C |
|
Rise Time |
10 µs |
|
Update Cycle Time |
1 ms |
|
Current Limiting |
Short-circuit proof current-limited output |
|
Maximum Field Cable Length |
600 meters (656 yards) |
|
Rated Insulation Voltage |
50 V |
|
Dielectric Test Voltage |
500 V a.c. |
|
Power Dissipation |
3.8 W |
|
+5 V Modulebus Current Consumption |
70 mA |
FAQs
Q: What is the brand?
A: ABB
Q: What is the type?
A:Analog Output Module
Q: What is the warranty period?
A: 1 year.
Q: What is the delivery time?
A:in stock
Q: Where is the shipping location?
A: Xiamen.
Q: What is the payment method?
Answer: T/T (Telegraphic Transfer).
