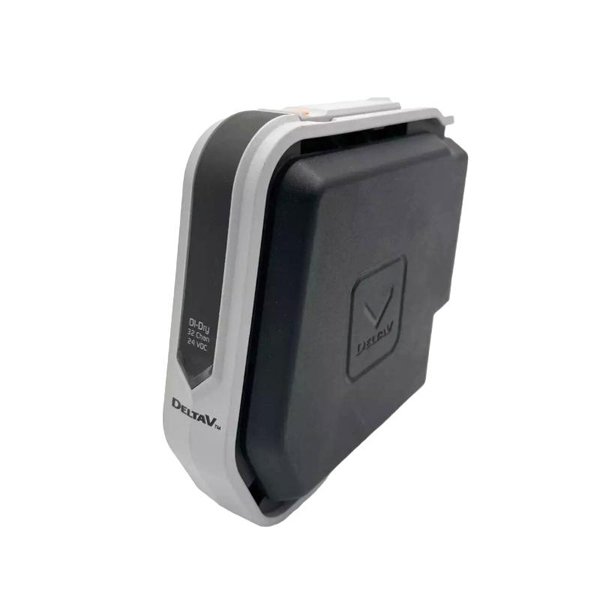

Emerson KJ3203X1-BK1 Dry Contact Card

The Emerson KJ3203X1-BK1 Dry Contact Card is a 32-channel input module designed for use within safety instrumented systems (SIS) and process automation environments. It provides reliable detection of dry contact signals from field devices such as switches, pushbuttons, relays, and mechanical sensors. By offering isolated channels and robust diagnostics, it ensures accurate signal acquisition while maintaining high levels of system safety and integrity.

This card is typically deployed in DeltaV™ SIS systems, where it acts as an interface between discrete field inputs and the logic solver, enabling deterministic execution of safety-critical applications.

Product Parameters

Product Applications

The Emerson KJ3203X1-BK1 Dry Contact Card is widely applied in critical industries where discrete event detection is essential.

• Oil & Gas – Monitoring valve positions, pump status, and emergency shutdown pushbuttons.

• Power Generation – Integration of protective relays, turbine trips, and breaker status contacts.

• Chemical Processing – Detecting limit switches, pressure relief activation, and operator-initiated safety actions.

• Pharmaceutical Manufacturing – Ensuring compliance by monitoring equipment interlocks and access doors.

• Metals & Mining – Tracking conveyor interlocks, crusher shutdown switches, and safety gate signals.

Product Advantages

The Emerson KJ3203X1-BK1 card provides several advantages that make it a trusted component in safety systems:

• High Channel Density – 32 channels per card reduces cabinet footprint and wiring complexity.

• Robust Signal Integrity – Isolated channels minimize the risk of interference or false triggering.

• Integrated Diagnostics – Self-testing ensures quick fault identification, reducing downtime.

• Hot-Swappable Design – Enables replacement without process interruption.

• SIL3 Certification – Suitable for use in high-demand safety instrumented functions.

• Seamless DeltaV Integration – Simplifies engineering, configuration, and maintenance.

FAQ

1. How many dry contact inputs can the KJ3203X1-BK1 card handle simultaneously?

   It supports 32 independent channels, allowing simultaneous monitoring of multiple signals.

2. Does the module provide channel isolation?

   Yes, each channel is isolated to prevent cross-talk and ensure reliable operation in noisy environments.

3. Can the debounce time for contact detection be configured?

   Yes, debounce settings can be configured through the DeltaV SIS software for accurate signal processing.

4. What communication protocol does this card use?

   It communicates via the DeltaV SIS backplane, ensuring direct integration with the logic solver.

5. Is the KJ3203X1-BK1 suitable for safety-critical applications?

   Yes, it is SIL3 capable and designed for use in safety instrumented systems.

6. How does the module handle diagnostic testing?

   It performs built-in self-tests, monitoring for open loops, stuck signals, and communication errors.

7. Can this card detect both open and closed contact states?

   Yes, it is designed to monitor both states, providing full discrete input detection.

8. Is it possible to hot-swap the card during system operation?

   Yes, the card can be replaced without shutting down the system, minimizing downtime.

9. What types of field devices can connect to this card?

   It can connect to dry contact devices such as switches, relays, pushbuttons, and mechanical sensors.

10. Does the card support redundant configurations?

    Yes, it can be deployed in redundant architectures for higher reliability in safety systems.
