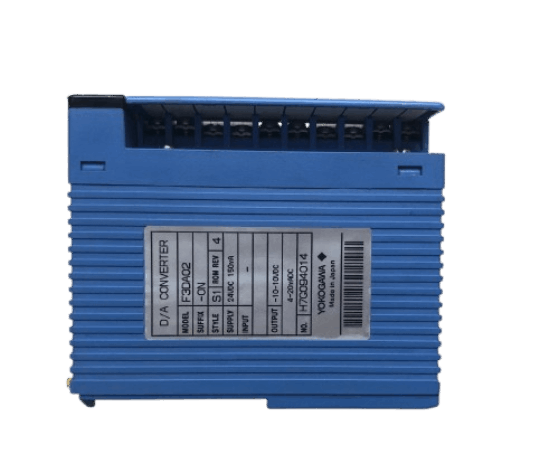

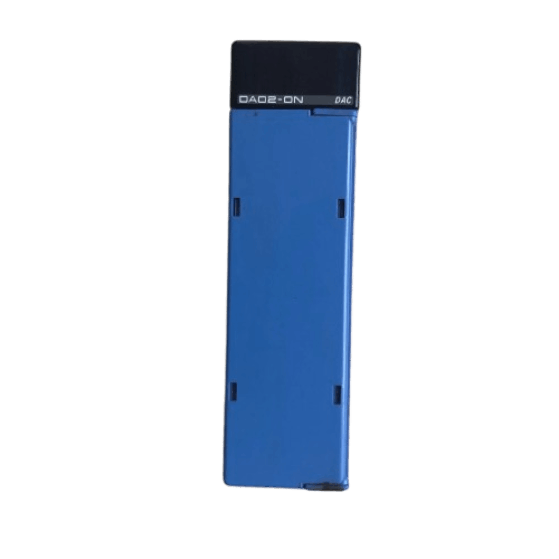

Yokogawa F3DA02-0N Analog Output Module
Item Number: F3DA02-0N
Brand: Yokogawa
Lead Time: In stock
Description: Analog Output Module
Payment: T/T
Product Description
Yokogawa F3DA02-0N is a digital-to-analog conversion output module for the FA-M3 system. It has a 16-bit D/A conversion function and is used to convert the digital signal of the control system into analog output. F3DA02-0N must be used with the FA-M3 base module (such as F3BU09-0N).
Fuction & features
- Output Points: A single module of F3DA02-0N can accommodate two output points, providing analog output for two different control loops at the same time.
- Conversion Period: Provides a conversion period (output update period) as high as 2 ms.
- Scaling Feature: F3DA02-0N is provided with an easy-to-use scaling feature. Upper and lower limit values can be set to any value between - 20,000 and 20,000.
- Insulation Method: Across output terminals and internal circuit: Photocoupler-isolated; Across output terminals: Not isolated negative-line common.
Specifications
|
Parameter |
Details |
| Model | F3DA02 |
| Suffix Code | 0N |
|
Dielectric strength |
500 V DC for 1 minute |
|
Permissible load resistance |
Voltage output mode: 5 kΩ min. Current output mode: 600 Ω max. |
|
Resolution (12 - bit A/D) |
Voltage output: 5.7 mV Current output: 5.7 μA |
|
Overall accuracy |
23 ± 2°C: ± 0.2% (full scale) 0 to 55°C: ± 0.5% (full scale) |
|
Conversion period |
2 ms (fixed) |
|
Current consumption |
100 mA (5 V DC) |
FAQ
Q: What is the brand?
A: Yokogawa
Q: What is the type?
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
