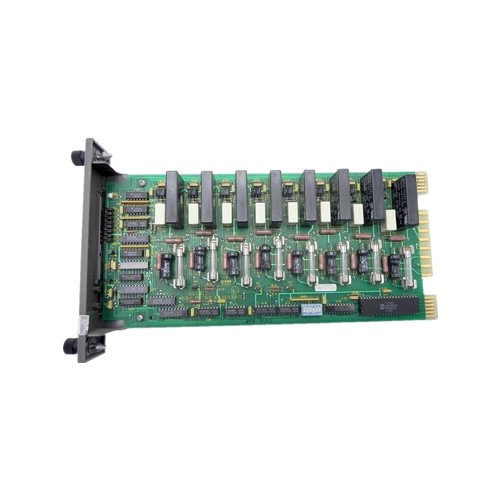

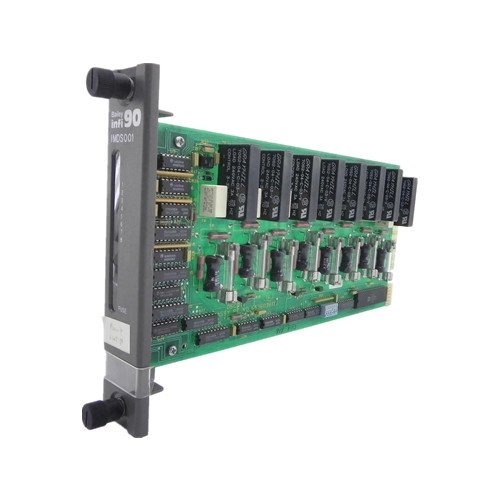

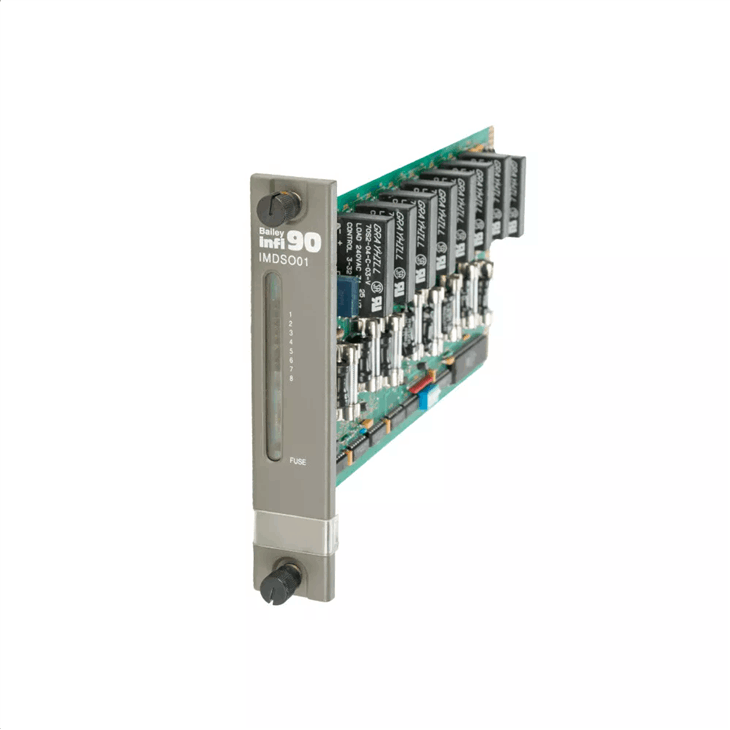

ABB IMDSO01 Digital Output Module
Product Description
ABB IMDSO01 digital output module is part of the INFI 90® process management system. The IMDSO01 digital output module (DSO) can output eight independent digital signals from the INFI 90 system to the process for controlling process field devices. The DSO module is an I/O module in the form of a single printed circuit board that occupies one slot in the module mounting unit and outputs eight independent digital signals through solid-state relays on the circuit board. There are two fixed locking screws on the panel to fix the module to the mounting unit, and there are ten LED lights to display the module status, fuse status and the status of each output. The module has three card edge connectors (P1, P2 and P3) for connecting external signals and power.
Fuctions & Features
- Provides eight independent digital output signals.
- Three DSO modules switch signals in three different voltage ranges. The IMDSO01 module switches 24 to 240 VAC; the IMDSO02 module switches 4 to 60 VDC; and the IMDSO03 module switches 5 to 160 VDC.
- Front panel LEDs provide a visual indication of module status to aid system testing and troubleshooting.
- Features user-definable default states.
Specification
|
Property |
Characteristic/Value |
|
IMDSO01 |
|
|
Power requirements |
+5.00, ± 0.25 VDC at 150 mA; 0.75 W nominal |
|
Max. load voltage |
24 VAC to 240 VAC |
|
Max. load current |
3.0 A at 25°C (77°F) 2.0 A at 50°C (122°F) 1.0 A at 70°C (158°F) |
|
Max. off leakage current |
8.5 mA at 120 VAC, 25°C (77°F) 17.5 mA at 240 VAC, 25°C (77°F) |
|
Max. on voltage drop |
3.0 V at 3.0 A, 25°C (77°F) with 0.3 - m (1 - ft) long termination device cable |
|
Max. surge current |
50 A for 1 cycle |
Loading comments...
ABB IMDSO01 Digital Output Module
Product Description
ABB IMDSO01 digital output module is part of the INFI 90® process management system. The IMDSO01 digital output module (DSO) can output eight independent digital signals from the INFI 90 system to the process for controlling process field devices. The DSO module is an I/O module in the form of a single printed circuit board that occupies one slot in the module mounting unit and outputs eight independent digital signals through solid-state relays on the circuit board. There are two fixed locking screws on the panel to fix the module to the mounting unit, and there are ten LED lights to display the module status, fuse status and the status of each output. The module has three card edge connectors (P1, P2 and P3) for connecting external signals and power.
Fuctions & Features
- Provides eight independent digital output signals.
- Three DSO modules switch signals in three different voltage ranges. The IMDSO01 module switches 24 to 240 VAC; the IMDSO02 module switches 4 to 60 VDC; and the IMDSO03 module switches 5 to 160 VDC.
- Front panel LEDs provide a visual indication of module status to aid system testing and troubleshooting.
- Features user-definable default states.
Specification
|
Property |
Characteristic/Value |
|
IMDSO01 |
|
|
Power requirements |
+5.00, ± 0.25 VDC at 150 mA; 0.75 W nominal |
|
Max. load voltage |
24 VAC to 240 VAC |
|
Max. load current |
3.0 A at 25°C (77°F) 2.0 A at 50°C (122°F) 1.0 A at 70°C (158°F) |
|
Max. off leakage current |
8.5 mA at 120 VAC, 25°C (77°F) 17.5 mA at 240 VAC, 25°C (77°F) |
|
Max. on voltage drop |
3.0 V at 3.0 A, 25°C (77°F) with 0.3 - m (1 - ft) long termination device cable |
|
Max. surge current |
50 A for 1 cycle |
