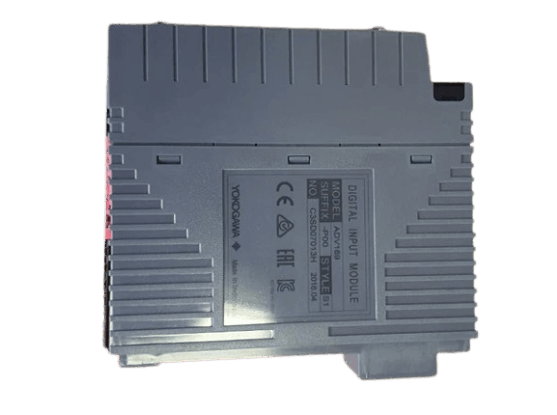

Yokogawa ADV169-P00 Digital Input Module
Item Number:ADV169-P00
Brand: Yokogawa
Lead Time: In stock
Description:Digital Input Module for Compatible ST6
Payment: T/T
Product Description
ADV169-P00 is a 64-channel isolated digital input module of Yokogawa ST6 series. Each 16 channels has a common negative terminal. The ADV169 module supports two signal types: dry contact (switch signal) and voltage input.
It can receive digital signals from field devices and transmit them to the control system for processing and monitoring. It is suitable for automation systems (such as Yokogawa ST6 series PLC) to monitor switch signals (such as limit switches, relays, button status).
Function&Features
Dry contact input (switch signal)- OFF signal (open): ≥100 kΩ (high impedance).
- ON signal (closed): ≤200 Ω (low impedance).
- Minimum short-circuit current: 1.25 mA (to ensure reliable detection of the closed state).
Voltage input (DC signal)
- OFF signal: 4.5~25 V DC (logic "0").
- ON signal: ≤1 V DC and impedance ≤200 Ω (logic "1").
Channel configuration: 64-channel high-density design, every 16 channels share a common terminal (COM-), and the groups are electrically isolated.
Specifications
|
Code |
Description |
|
ADV169 |
Digital Input Module for Compatible ST6 (64-channel, Isolated, Common Minus Side Every 16-channel) |
|
-P |
Standard type |
|
0 |
Always 0 |
|
0 |
Basic type |
|
1 |
With ISA Standard G3 option |
FAQs
Q: What is the brand?
A:Yokogawa
Q: What is the type?
Q: What is the warranty?
A: 1 year
Q: Where is the shipping lovation?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
