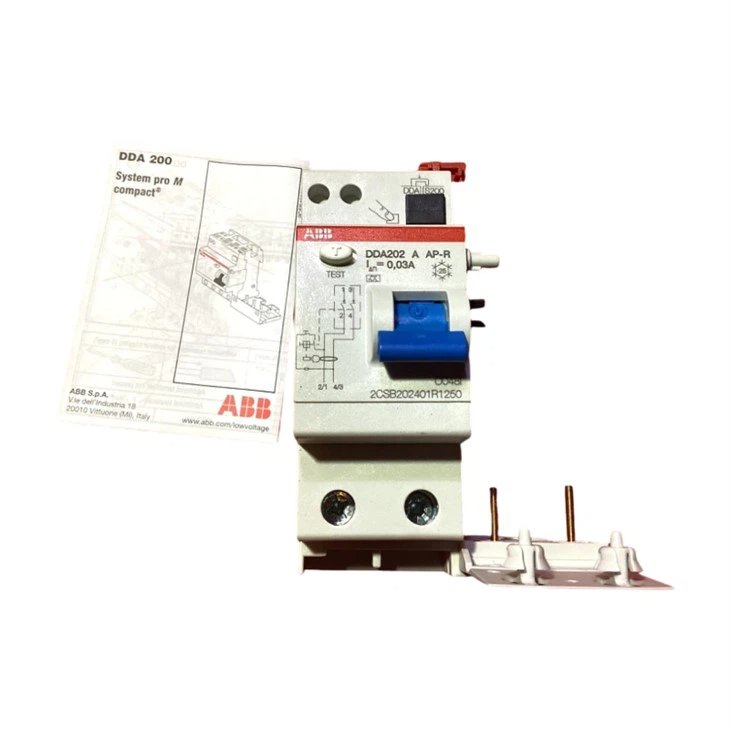

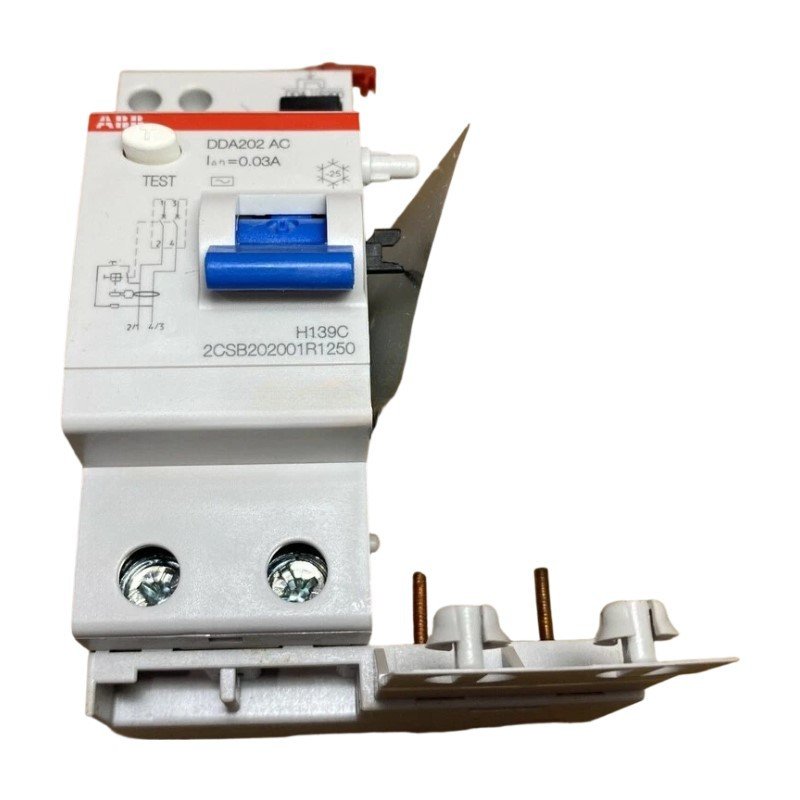

ABB DDA202 2CSB202001R1630 Residual Current Device Block
Item Number:DDA202 2CSB202001R1630
Brand: ABB
Lead Time: In stock
Description:Residual Current Device Block
Payment: T/T
Product Description
ABB DDA202 2CSB202001R1630 is a two-pole (2P) residual current protector (RCD) with a rated current of 25A and a residual operating current of 30mA. Designed for assembly with S200 and S300P series miniature circuit breakers (MCBs), it provides protection against sinusoidal AC ground fault currents, prevents indirect contact, and offers additional protection against direct contact (with a sensitivity of 30mA). It is suitable for power distribution and terminal protection in residential, commercial, and industrial buildings.
Function & Features
- Protection: The ABB DDA202 2CSB202001R1630 effectively protects against the effects of sinusoidal AC ground fault currents, providing protection against indirect electric shock and additional protection against direct contact.
- Recyclable: According to the EN45555 standard, the ABB DDA202 2CSB202001R1630 has a recyclability rate of up to 69.47%, meaning that most of the product's materials can be recycled at the end of its lifecycle.
- Environmentally friendly packaging: The ABB DDA202 2CSB202001R1630 packaging uses 85.84% recycled cardboard, reducing the use of virgin forest resources.
- Waste management: The ABB DDA202 2CSB202001R1630 aligns with ABB's "No Waste to Landfill" goal, with virtually no waste from the production process going directly to landfill.
Specifications
| Parameter | Details |
|---|---|
| Product Model | DDA202 |
| Part Number | 2CSB202001R1630 |
| Type of Residual Current | Type AC |
| Leakage Current Type | AC |
| Power Supply Connection | Arbitrary |
| Electrical Endurance | 10000 cycle |
| Number of Poles | 2P |
| Number of Modular Spacings per DIN Rail | 4 |
| Operating Characteristic | Instantaneous |
| Connecting Capacity | Rigid 25 … 25 mm²; Flexible 25 … 25 mm² |
| Resistance to Shock acc. to IEC 60068 - 2 - 27 | 25g 2 shocks 13 ms |
| Product Net Width | 70 mm |
| Product Net Height | 93 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 210 g |
