ABB TU810 Product Introduction

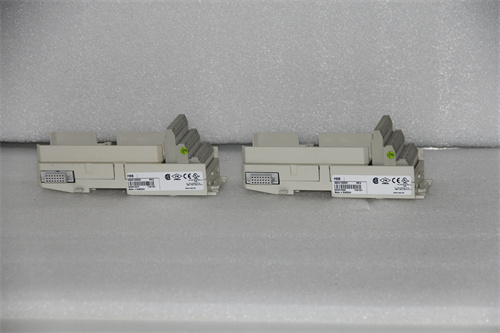

ABB TU810 is a compact,high-performance module base suitable for a variety of industrial application scenarios.As an MTU,it can connect field wiring to I/O modules to achieve signal transmission and control.

Product Features

Multi-channel design

ABB TU810/TU810V1 is a 16-channel 50V compact MTU that can handle multiple field signal channels and process power connections at the same time.

Passive unit

MTU is a passive unit that does not require an external power supply,reducing energy consumption and complexity.

ModuleBus allocation

MTU can allocate ModuleBus to I/O modules and the next MTU to achieve signal transmission and allocation.

Address generation

By shifting the output position signal to the next MTU,the MTU can generate the correct address to the I/O module to ensure accurate signal transmission.

Mechanical key configuration

Two mechanical keys are used to configure MTU for different types of I/O modules,providing a variety of configuration options.At the same time,mechanical keying can also prevent the wrong I/O module from being inserted.

DIN rail installation

ABB TU810 supports DIN rail installation,which is convenient for users to fix it in the control cabinet or equipment.

Application fields

ABB TU810 is widely used in CNC machinery,metallurgy,oil and gas,petrochemical,chemical industry,paper printing,textile printing and dyeing,machinery,electronic manufacturing,plastic machinery,electricity,water conservancy,water treatment/environmental protection,municipal engineering,boiler heating,energy,power transmission and distribution and other fields.In these fields,it plays an important role as a key component of signal transmission and control.

Technical specifications(taking TU810V1 as an example)

Communication rate

Supports multiple communication rates,including 9.6kBit/s,19.2 kBit/s,45.45kBit/s,etc.,to meet the needs of different application scenarios.

Lightning protection

Provides 4000V lightning protection to ensure stable operation of the equipment in harsh environments.

Overcurrent protection

With 1.5A overcurrent protection function,it prevents damage to the equipment caused by excessive current.

Surge protection

Provides 600W surge protection function to enhance the anti-interference ability of the equipment.

Power supply

Supports DC9-36V wide redundant dual power input,with DC1500V power isolation and reverse connection protection functions.

Protection level

IP30 protection level ensures stable operation and safety of the equipment in harsh environments.
