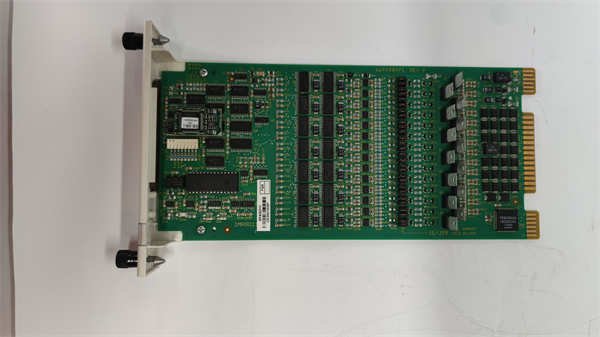

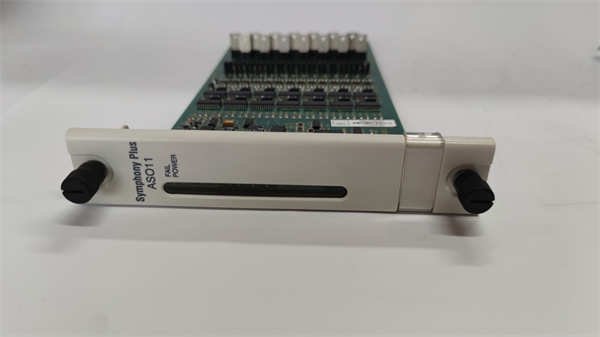

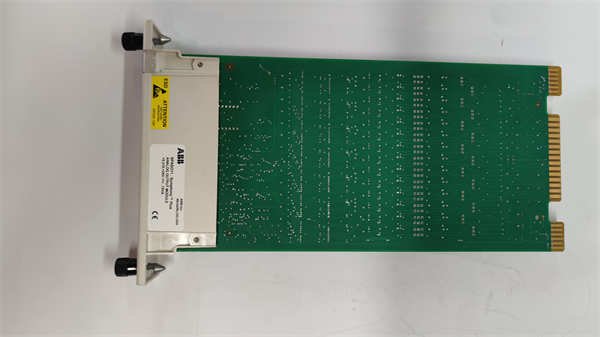

ABB SPASO11 Safety Relay Module

The ABB SPASO11 is a high-performance safety relay module designed for critical machine safety applications requiring SIL 3 and PL e safety levels. As part of ABB’s comprehensive safety product portfolio, this compact yet robust safety relay provides reliable monitoring and control of safety circuits in industrial automation systems.

Featuring two positively-driven NO safety contacts with a high switching capacity (6A @ 250V AC), the ABB SPASO11 is particularly suitable for emergency stop circuits, safety gates, light curtains, and other safety-related applications. Its rugged design ensures dependable operation in harsh industrial environments while meeting the most stringent safety standards.

Detailed Parameter Table

Core Advantages and Technical Highlights

1. High Safety Integrity:

Certified for SIL 3 (IEC 61508) and PL e (ISO 13849-1)

Forced-guided contacts (EN 50205) ensure safe failure mode

Redundant circuit design for maximum reliability

2. Robust Performance:

10 million mechanical operations for long service life

Wide voltage range (19.2-28.8V DC) for stable operation

-25°C to +60°C operating temperature range

3. Easy Integration:

Compact design saves panel space

Clear LED indicators for quick status monitoring

Manual reset option for safety confirmation

4. Versatile Applications:

Dual-channel monitoring capability

Cross-circuit detection for wiring faults

Short-circuit protection on outputs

Typical Application Scenarios

The ABB SPASO11 is widely used in:

Machine Safety Systems: Emergency stop circuits, safety interlocks

Robotic Cells: Safety monitoring for collaborative robots

Presses and Stamping Machines: Two-hand control systems

Packaging Machinery: Safety gate monitoring

Material Handling: Conveyor safety controls

In these applications, the ABB SPASO11 ensures compliance with international safety standards while providing reliable protection for personnel and equipment.

Installation, Commissioning and Maintenance

Installation Preparation:

Mount on DIN rail in control cabinet

Ensure proper 24V DC power supply

Follow safety circuit design standards (ISO 13849)

Commissioning Steps:

Verify correct wiring of safety inputs

Check contact operation with test load

Confirm proper LED indication

Perform functional safety test

Maintenance Suggestions:

Annual functional testing of safety circuits

Check contact resistance periodically

Inspect for overheating signs

Replace after 100,000 electrical operations at rated load

Service and Guarantee Commitment

ABB provides:

36-month standard warranty

Global technical support network

Safety engineering consulting services

On-site commissioning assistance (optional)

For critical applications, extended warranty options and safety system audits are available to ensure continued compliance with safety standards.

Conclusion

The ABB SPASO11 safety relay module delivers high-integrity safety performance for industrial machinery protection. With its SIL 3/PL e certification, robust construction, and versatile application capabilities, it serves as a reliable component in modern safety systems across various industries.
