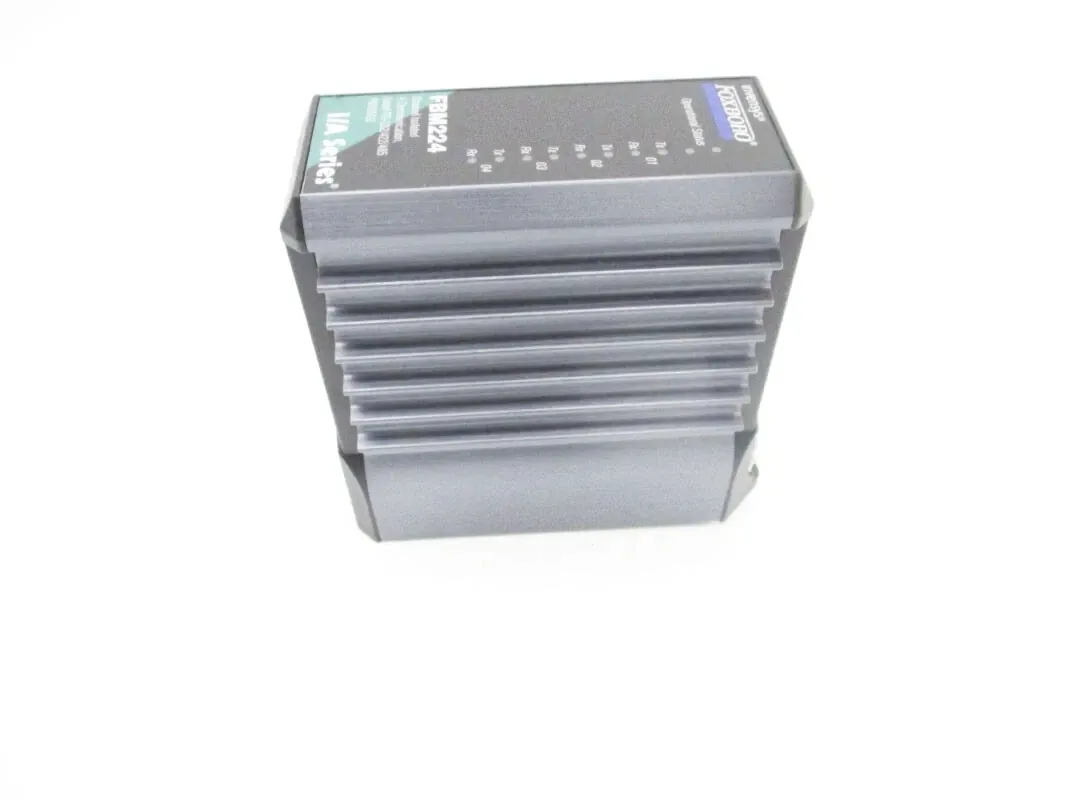

Foxboro FBM224 Modbus® Communication Module
Item Number: FBM224
Brand:Foxboro
Lead Time: In stock
Description: Modbus® Communication Module
Payment: T/T
Product Description
Foxboro FBM224 Modbus communication module is a Modbus slave device that can be used to interface Modbus slave devices with the control processor of the Foxboro Evo™ process automation system and I/A Series® system. It is equipped with 4 ports, each of which can be individually configured as RS-232, RS-422 or RS-485 mode, allowing a single FBM224 to adapt to various communication interface standards commonly used in Modbus networks.
Function & Features
- Multi-port configuration: FBM224 has 4 independent ports, each port can be individually configured as RS-232/RS-422/RS-485, ports 1-2 or 3-4 can be combined into a logical redundant port, connecting dual-port Modbus devices via dual cables.
- Master/Slave Mode: FBM224 acts as a master station and actively polls slave devices (user-configurable polling frequency).
- Wiring via Termination Assembly (TA): FBM224 supports direct connection devices, modems (RS-232), and RS-232 to RS-422/485 converters. DIP switches are provided to configure termination resistors (RS-422/485) or custom RS-232 signals (such as CTS/RTS).
Specifications
|
Category |
Details |
|
Model |
FBM224 |
|
Operating Temperature - FBM224 Module |
-20 to +60 °C (-4 to +140 °F) |
|
Operating Temperature - Termination Assembly |
-20 to +70 °C (-4 to +158 °F) |
|
7.5 m/S² (0.75 g) from 5 to 500 Hz |
|
|
Compression - Ring Lug |
216 mm (8.51 in) – 320 g (0.70 lb, approximate) |
|
Compression - Ring Lug |
250 mm (9.85 in) – 454 g (1.0 lb, approximate) |
Loading comments...
Foxboro FBM224 Modbus® Communication Module
Item Number: FBM224
Brand:Foxboro
Lead Time: In stock
Description: Modbus® Communication Module
Payment: T/T
Product Description
Foxboro FBM224 Modbus communication module is a Modbus slave device that can be used to interface Modbus slave devices with the control processor of the Foxboro Evo™ process automation system and I/A Series® system. It is equipped with 4 ports, each of which can be individually configured as RS-232, RS-422 or RS-485 mode, allowing a single FBM224 to adapt to various communication interface standards commonly used in Modbus networks.
Function & Features
- Multi-port configuration: FBM224 has 4 independent ports, each port can be individually configured as RS-232/RS-422/RS-485, ports 1-2 or 3-4 can be combined into a logical redundant port, connecting dual-port Modbus devices via dual cables.
- Master/Slave Mode: FBM224 acts as a master station and actively polls slave devices (user-configurable polling frequency).
- Wiring via Termination Assembly (TA): FBM224 supports direct connection devices, modems (RS-232), and RS-232 to RS-422/485 converters. DIP switches are provided to configure termination resistors (RS-422/485) or custom RS-232 signals (such as CTS/RTS).
Specifications
|
Category |
Details |
|
Model |
FBM224 |
|
Operating Temperature - FBM224 Module |
-20 to +60 °C (-4 to +140 °F) |
|
Operating Temperature - Termination Assembly |
-20 to +70 °C (-4 to +158 °F) |
|
7.5 m/S² (0.75 g) from 5 to 500 Hz |
|
|
Compression - Ring Lug |
216 mm (8.51 in) – 320 g (0.70 lb, approximate) |
|
Compression - Ring Lug |
250 mm (9.85 in) – 454 g (1.0 lb, approximate) |
