Foxboro P0914YM FCM10E Product Details

Foxboro P0914YM FCM10E is an automation control system component produced by Foxboro.FCM10E serves as a communication interface,allowing fieldbus modules(FBMs)mounted on DIN rails to communicate with I/A series control stations through a high-speed,optionally redundant 10 Mbps Ethernet backbone fieldbus.

FCM10E module features

Communication capabilities

Can convert 10 Mbps Ethernet signals used by control stations to 2 Mbps signals used by FBMs,and vice versa.

Provide electrical isolation between the 10 Mbps Ethernet backbone fieldbus and the 2 Mbps module fieldbus.

Use in pairs for redundancy,improving system reliability and stability.

Physical features

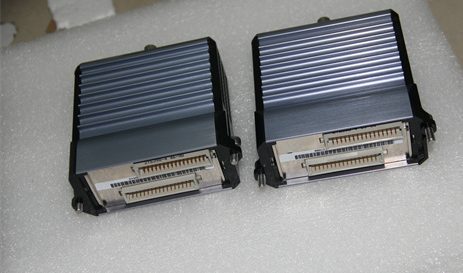

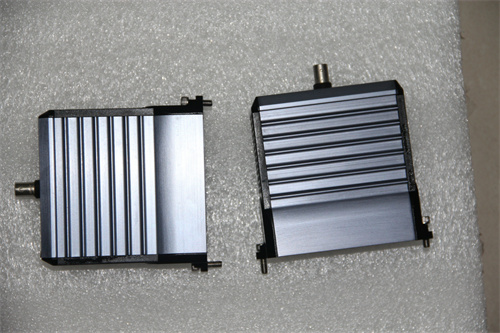

Compact design,with a rugged extruded aluminum exterior to provide physical protection for the circuit.

Mounted on a DIN rail or rack-mounted base plate,including signal connectors for fieldbus,power and I/O cable connections.

Environmental adaptability

Temperature range:-20 to+70°C(-4 to+158°F).

Relative humidity:5 to 95%(non-condensing).

Altitude:-300 to+3,000 meters(-1,000 to+10,000 feet).

Wide application

Suitable for simulation,instrumentation,industrial control,process control and monitoring,factory automation and other fields.

Supports applications such as intelligent networked PLC controllers,automatic testing and data acquisition.

P0914YM controller features

As part of the Foxboro automation control system,the P0914YM controller(which may be part of or work in conjunction with the control station to which the FCM10E module is connected)typically has the following features

High-performance processor:Equipped with a 32-bit microprocessor to ensure fast response and efficient data processing capabilities.

Large memory:supports complex control algorithms and multi-tasking,and the specific configuration may include 256MB RAM and 1GB Flash storage.

Multiple I/O module support:including analog input/output(AI/AO),digital input/output(DI/DO),etc.,to meet the needs of different industrial sites.

High-density I/O design:a single module can support up to 16 channels of signal acquisition and control.

Multiple communication protocol integration:such as EtherCAT,Profinet,Modbus TCP,etc.,to achieve seamless connection with the host computer and other devices.

Advanced control algorithm:built-in PID,fuzzy control,adaptive control and other advanced control algorithms,suitable for complex industrial process control.

Redundant design and fail-safe mechanism:ensure the stable operation of the system under high load and harsh environment.

Application field

Foxboro P0914YM FCM10E is widely used in process control in industries such as petroleum,chemical,electric power,metallurgy,etc.,such as precise control of key parameters such as temperature,pressure,flow.At the same time,it is also suitable for automated production lines in manufacturing industries such as automobiles,electronics,and food to achieve high-precision and high-efficiency production process control.In addition,in building automation systems,it can also be used for intelligent control of air conditioning,lighting,elevators and other equipment to improve energy efficiency and comfort.
