ABB HPC800K02 HPC800 Controller Kit
Product Description

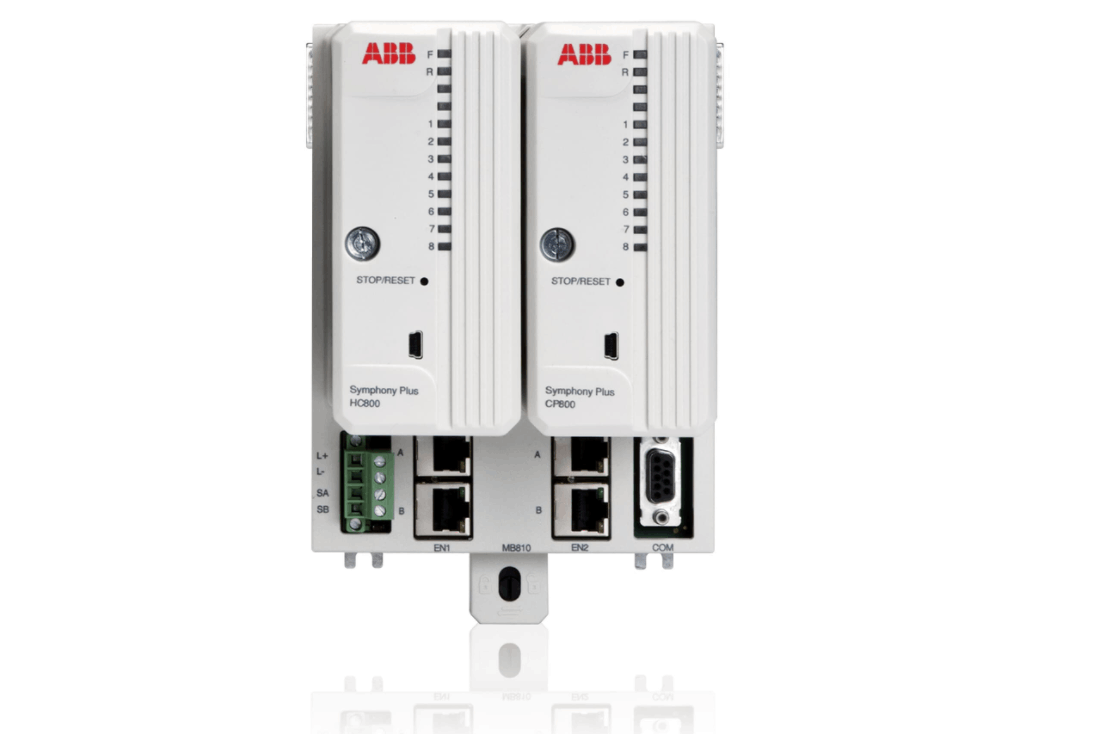

ABB HPC800K02 is the ABB HPC800 controller kit [redundant version], belonging to the Symphony Plus SD series. It is a process controller based on a 256 MHz, 32-bit Freescale Coldfire processor.

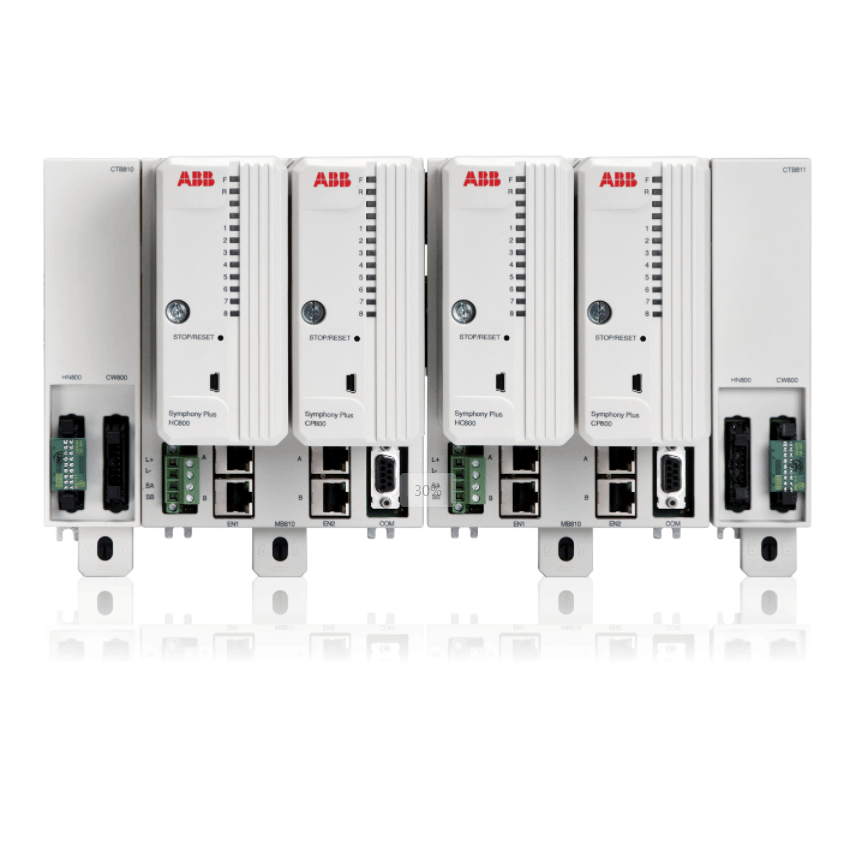

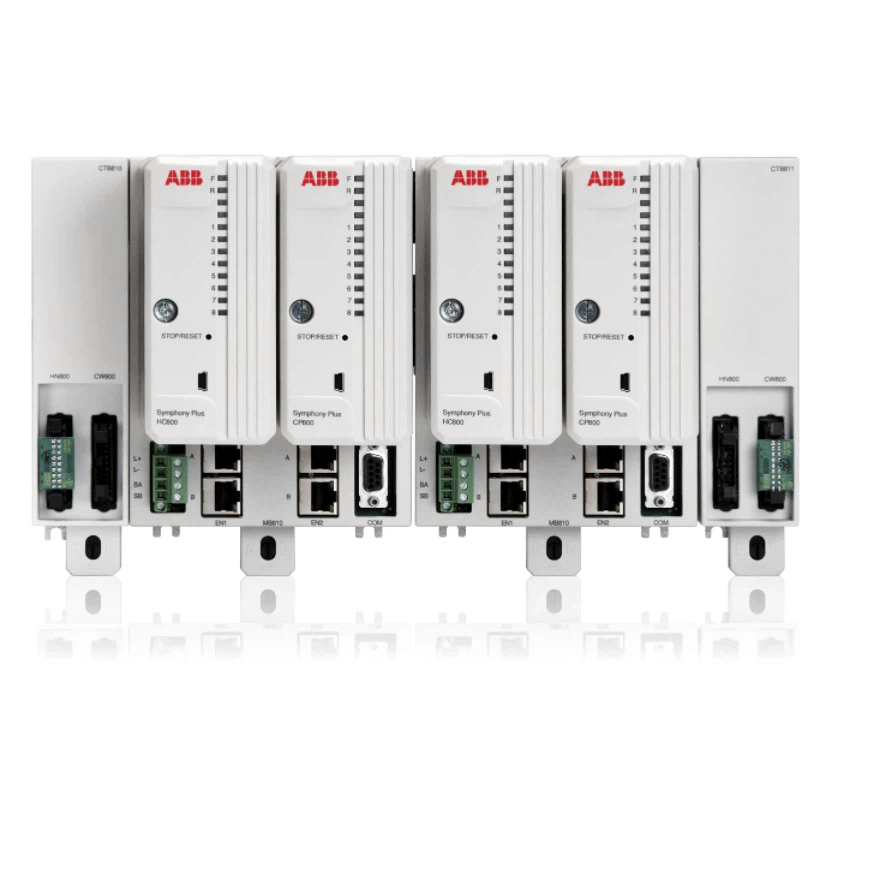

The kit includes: dual controllers (HC800+CP800+MB810), communication modules (CTB810/811) and terminal boards (TER8x0).
It can be configured through the S+ engineering tool, has more than 150 predefined control algorithms or function code libraries, and also supports C programming, batch processing and user-defined function codes.
Note: The redundancy kit must be configured with the S+ Engineering tool, and the soft controller function requires additional authorization.
Fuctions & Features
Processing power
- 256MHz processor supports closed-loop control with over 5,000 I/O points per second and a scan cycle of <250ms.
- Built-in 150+ predefined algorithm library, compatible with continuous, sequential, batch and advanced control strategies.
- Supports C language programming and user-defined function blocks, expandable to 30,000 function blocks.
Fully redundant architecture
- CPU, power supply, internal bus, I/O network are fully redundant, and fault switching is uninterrupted.
- Dedicated redundant communication bus (CW800), peer-to-peer communication update rate <100ms.
Configuration and rapid deployment
- Online configuration function, supports 8 segmented tasks (minimum cycle 1ms).
- Soft controller simulation function, can pre-debug control logic on PC.
Specification
|
Property |
Characteristic/Value |
|
Mounting： |
Standard 35mm wide DIN-rail (horizontal) |
|
Processor Configuration： |
|
|
HC800 (Control Processor) |
Key positions to MB810 mounting base: 1 = E, 2 = E |
|
CP800 (Comm Processor) |
Key positions to MB810 mounting base: 1 = C, 2 = C |
|
Microprocessor： |
2× ColdFire 32-bit @256 MHz (1 for HC800 + 1 for CP800) |
|
Memory： |
|
|
HC800 |
64MB RAM + 4MB ROM + 2MB NVRAM |
|
CP800 |
64MB RAM + 4MB ROM |
|
Power Requirements： |
24VDC ±10% @400mA (10W typical); Supports redundant power inputs |
|
Safety Certification： |
Overvoltage Category I (Tested per IEC/EN 61010-1) |
|
Redundancy Performance： |
|
|
Link Speed |
8MB/s (normal operation) |
|
Switchover |
Bumpless switchover |
|
Programmability： |
|
|
Languages |
Function Codes, Batch 90, User Defined Function Codes (UDF) |
|
Function Block Capacity |
Up to 32,000 addressable blocks |
|
Task Segmentation |
Up to 8 segments |
|
Execution Cycle |
Configurable down to 1ms per segment |
Loading comments...
ABB HPC800K02 HPC800 Controller Kit
Product Description
ABB HPC800K02 is the ABB HPC800 controller kit [redundant version], belonging to the Symphony Plus SD series. It is a process controller based on a 256 MHz, 32-bit Freescale Coldfire processor.
The kit includes: dual controllers (HC800+CP800+MB810), communication modules (CTB810/811) and terminal boards (TER8x0).
It can be configured through the S+ engineering tool, has more than 150 predefined control algorithms or function code libraries, and also supports C programming, batch processing and user-defined function codes.
Note: The redundancy kit must be configured with the S+ Engineering tool, and the soft controller function requires additional authorization.
Fuctions & Features
Processing power
- 256MHz processor supports closed-loop control with over 5,000 I/O points per second and a scan cycle of <250ms.
- Built-in 150+ predefined algorithm library, compatible with continuous, sequential, batch and advanced control strategies.
- Supports C language programming and user-defined function blocks, expandable to 30,000 function blocks.
Fully redundant architecture
- CPU, power supply, internal bus, I/O network are fully redundant, and fault switching is uninterrupted.
- Dedicated redundant communication bus (CW800), peer-to-peer communication update rate <100ms.
Configuration and rapid deployment
- Online configuration function, supports 8 segmented tasks (minimum cycle 1ms).
- Soft controller simulation function, can pre-debug control logic on PC.
Specification
|
Property |
Characteristic/Value |
|
Mounting： |
Standard 35mm wide DIN-rail (horizontal) |
|
Processor Configuration： |
|
|
HC800 (Control Processor) |
Key positions to MB810 mounting base: 1 = E, 2 = E |
|
CP800 (Comm Processor) |
Key positions to MB810 mounting base: 1 = C, 2 = C |
|
Microprocessor： |
2× ColdFire 32-bit @256 MHz (1 for HC800 + 1 for CP800) |
|
Memory： |
|
|
HC800 |
64MB RAM + 4MB ROM + 2MB NVRAM |
|
CP800 |
64MB RAM + 4MB ROM |
|
Power Requirements： |
24VDC ±10% @400mA (10W typical); Supports redundant power inputs |
|
Safety Certification： |
Overvoltage Category I (Tested per IEC/EN 61010-1) |
|
Redundancy Performance： |
|
|
Link Speed |
8MB/s (normal operation) |
|
Switchover |
Bumpless switchover |
|
Programmability： |
|
|
Languages |
Function Codes, Batch 90, User Defined Function Codes (UDF) |
|
Function Block Capacity |
Up to 32,000 addressable blocks |
|
Task Segmentation |
Up to 8 segments |
|
Execution Cycle |
Configurable down to 1ms per segment |
