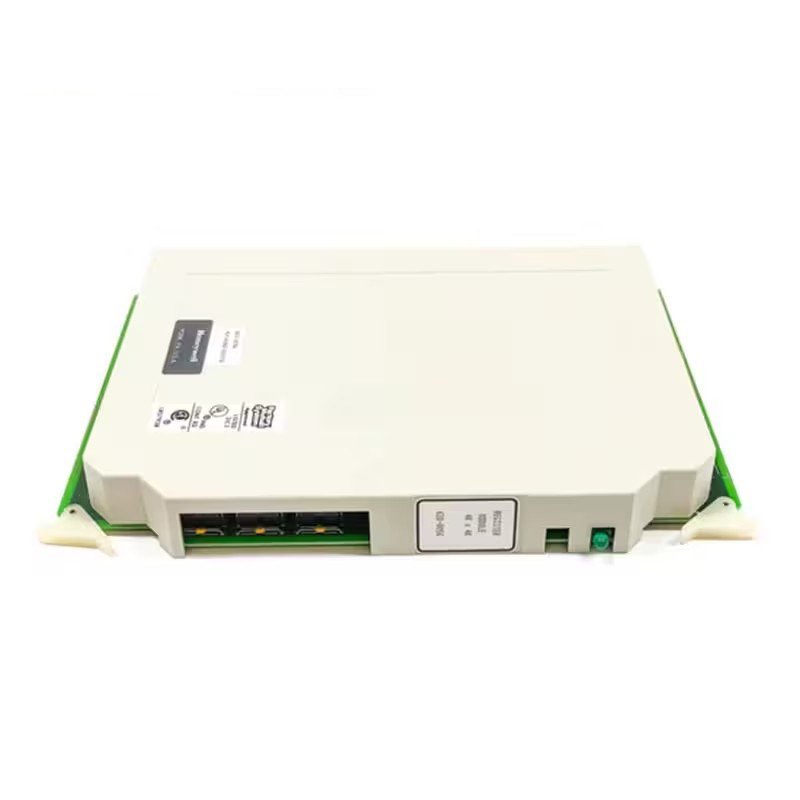

The Honeywell 620-0082 serves as a vital tool in Honeywell’s Universal Control Network (UCN). It supports system diagnostics and troubleshooting.

Key Features and Specifications

Purpose

The module primarily facilitates diagnostic functions within the Honeywell UCN system.

Functionality

• Provides a standardized interface for diagnostic tools.
• Isolates and identifies system faults effectively.
• Facilitates data logging and analysis for troubleshooting.
• Supports various communication protocols for different diagnostic tools.

Physical Characteristics

• Features a compact and rugged design suitable for industrial environments.
• Dimensions and mounting options vary by model and configuration.

Electrical Specifications

• Specifies operating voltage and current requirements.
• Details input/output signal types and levels.
• Includes communication interface options like RS-232 and Ethernet.

Environmental Specifications

• Defines operating temperature range and humidity tolerance.
• Complies with electromagnetic compatibility (EMC) standards.

Dimensions

• Measures 1.0″ x 10.5″ x 7.0″ (2.5 cm x 26.7 cm x 17.8 cm).

Weight

• Weighs 0 lbs 15.0 oz (0.4 kg).
