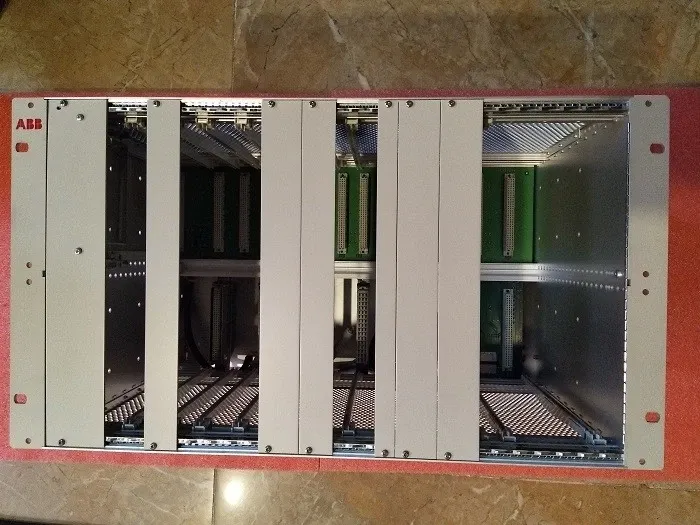

ABB P7LC 1KHL015000R0001 Programmable Logic Controller Module

ABB P7LC 1KHL015000R0001 is a programmable logic controller (PLC) module designed for ABB VFD Spare system. It is part of ABB inverter spare parts system, with programming tools and debugging functions, and supports multiple programming languages.

At the beginning of each scan cycle, the module scans all connected input points, reads the external device status signal and stores it in the input image register; in the program execution phase, according to the control program pre-written by the user, reads data from the input image register and other internal registers; in the output refresh phase, after the program is executed, the data in the output image register is transferred to the output latch, and then drives the external load through the output interface.

Fuctions & Features

• Input: At the beginning of each scan cycle, the ABB P7LC module scans all connected input points, reads the status signal of the external device, and stores it in the input image register.

• Program execution: According to the control program written by the user in advance, the ABB P7LC module reads data from the input image register and other internal registers.

• Output refresh: After the program execution is completed, the ABB P7LC module transfers the data in the output image register to the output latch, and then drives the external load through the output interface.

Specification
