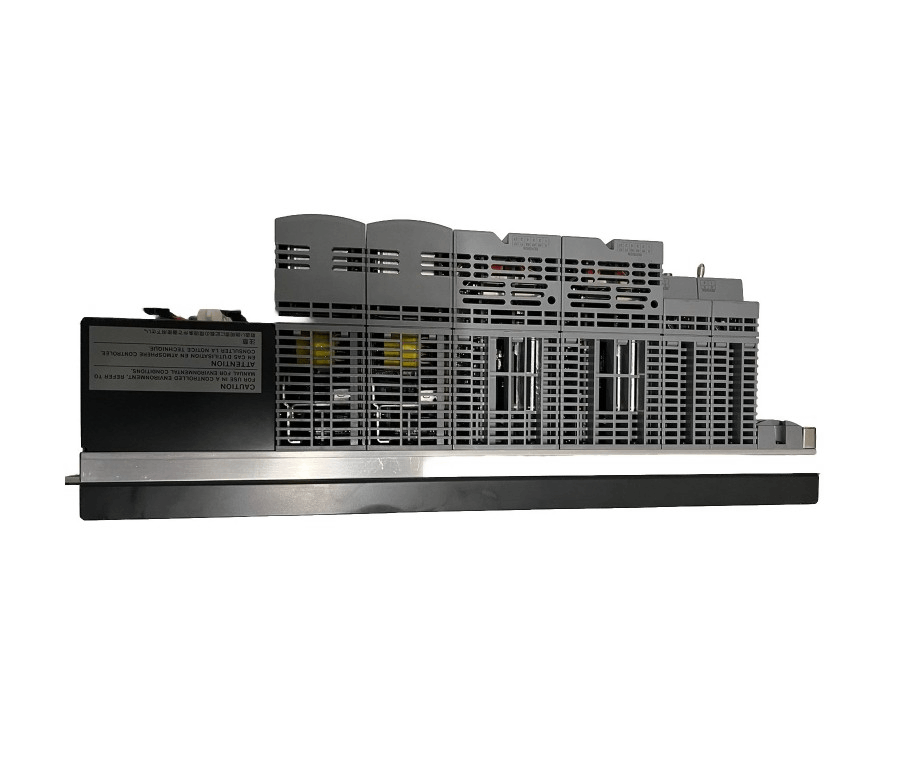

Yokogawa AVR10D-Q22021 Duplexed V Net Router
Item Number:AVR10D-Q22021
Brand: Yokogawa
Lead Time: In stock
Description:Duplexed V net Router
Payment: T/T
Product Description
Yokogawa AVR10D-Q22021 is a Duplexed V net Router, mainly used to connect Yokogawa CENTUM series control systems in different network domains. It can connect CENTUM VP human-machine interface stations (HISes) on Vnet/IP with CENTUM VP, CENTUM CS 3000, CENTUM CS stations in Vnet and CENTUM CS 1000 stations on VL network in other domains. It realizes data communication between heterogeneous networks.
Function & Features
- Vnet/IP side: AVR10D-Q22021 communication speed is 100Mbps, full-duplex mode, using UTP cable (CAT5e or better) and RJ45 connector.
- AVR10D-Q22021 (Vnet side): Communication speed is 10Mbps, using coaxial cable, BNC type interface, supporting dual redundancy or single connection.
- AVR10D-Q22021 (VLnet side): Communication speed is 10Mbps, also using coaxial cable, BNC type interface, supporting dual redundancy or single connection, for CENTUM CS 1000.

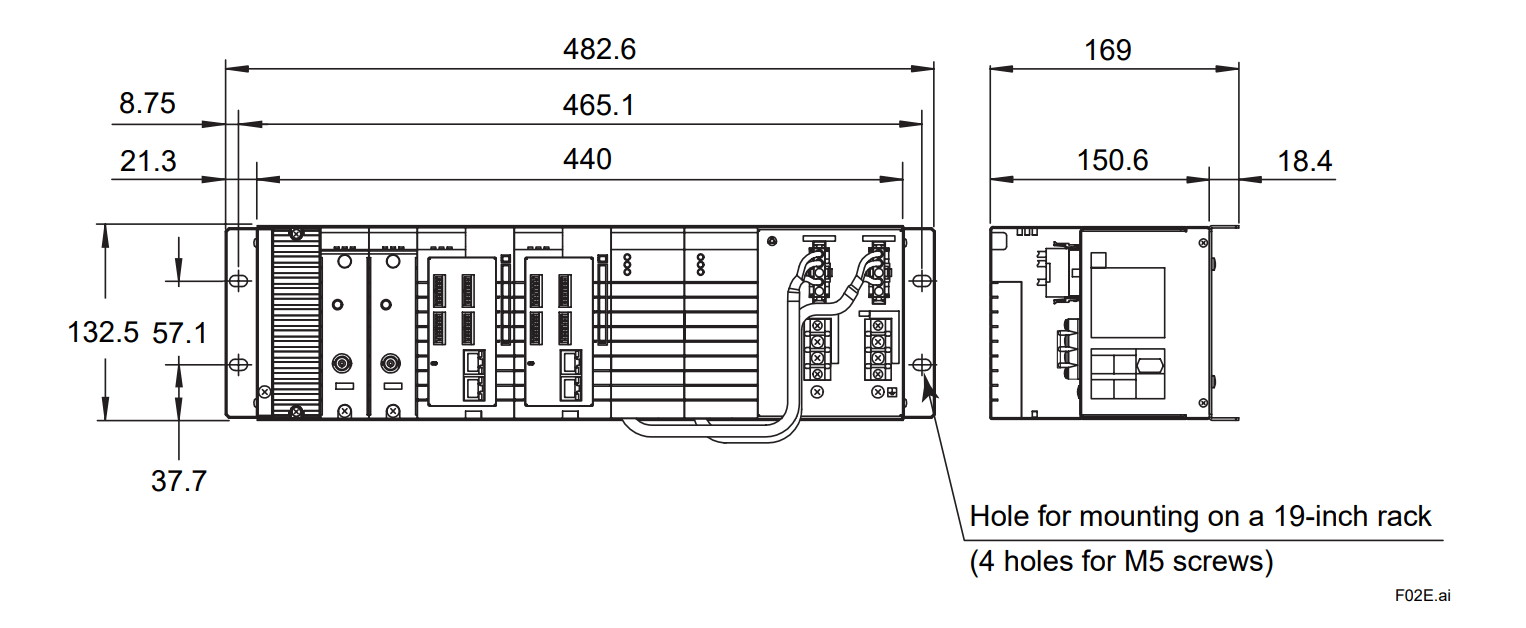

- Installation method: AVR10D-Q22021 adopts 19-inch rack installation method, fixed by 4 M5 screws, equipped with insulating bushing (accessory) 0.
Specifications
|
Parameter |
Details |
|
Power Supply (Specify with Suffix Code) |
- Voltage: 100 - 120 V AC, Frequency: 50/60 Hz - Voltage: 220 - 240 V AC, Frequency: 50/60 Hz - Voltage: 24 V DC |
|
Power Consumption |
- 100 - 120 V AC: 80 VA - 220 - 240 V AC: 110 VA - 24 V DC: 1.7 A |
|
Power supply method |
dual-line or single power line |
|
Weight |
Approx. 5.8 kg |
FAQ
Q: What is the brand?
A: Yokogawa
Q: What is the type?
A:Duplexed V net Router
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
