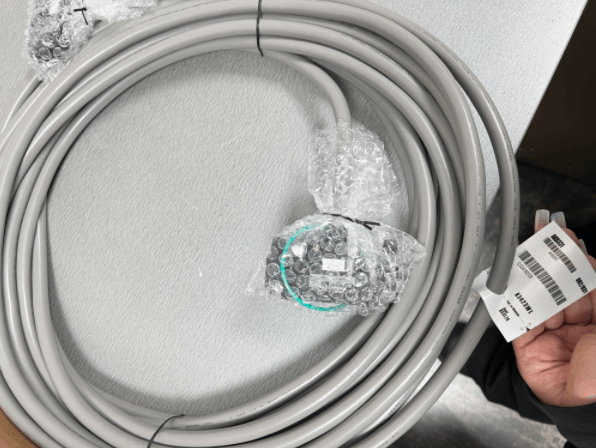

Yokogawa AKB331 Single Cable For ProSafe-RS

Yokogawa AKB331 is a 50-50 pin signal cable designed for ProSafe-RS safety instrumented system (SIS). Both ends are 50 pin D-type sub-connectors. It is used to connect digital output modules (such as SDV144/SDV531/SDV53A/SDV541/SAT145) and terminal boards (Terminal Boards) to transmit analog or digital signals.

Its core feature is the anti-misplugging design, and the cable length and module model must be strictly matched. It must be used with I/O modules of the same model with /PRP anti-misplugging pin options.

Related models:AKB331-M001/AKB331-M002/AKB331-M003/AKB331-M005/AKB331-M007/AKB331-M010/AKB331-M015/AKB331-M020 AKB331-M025/AKB331-M030/AKB331-M035/AKB331-M040 AKB331-M045/AKB331-M050

Fuctions & Features

Anti-misplugging mechanism:

The module and cable must match the anti-misplugging option (e.g. AKB331-M003/SDV144 is only compatible with SDV144 modules with /PRP).

Physical protection:

Prevent wrong model modules from being inserted through special pin design.

Multiple lengths available:

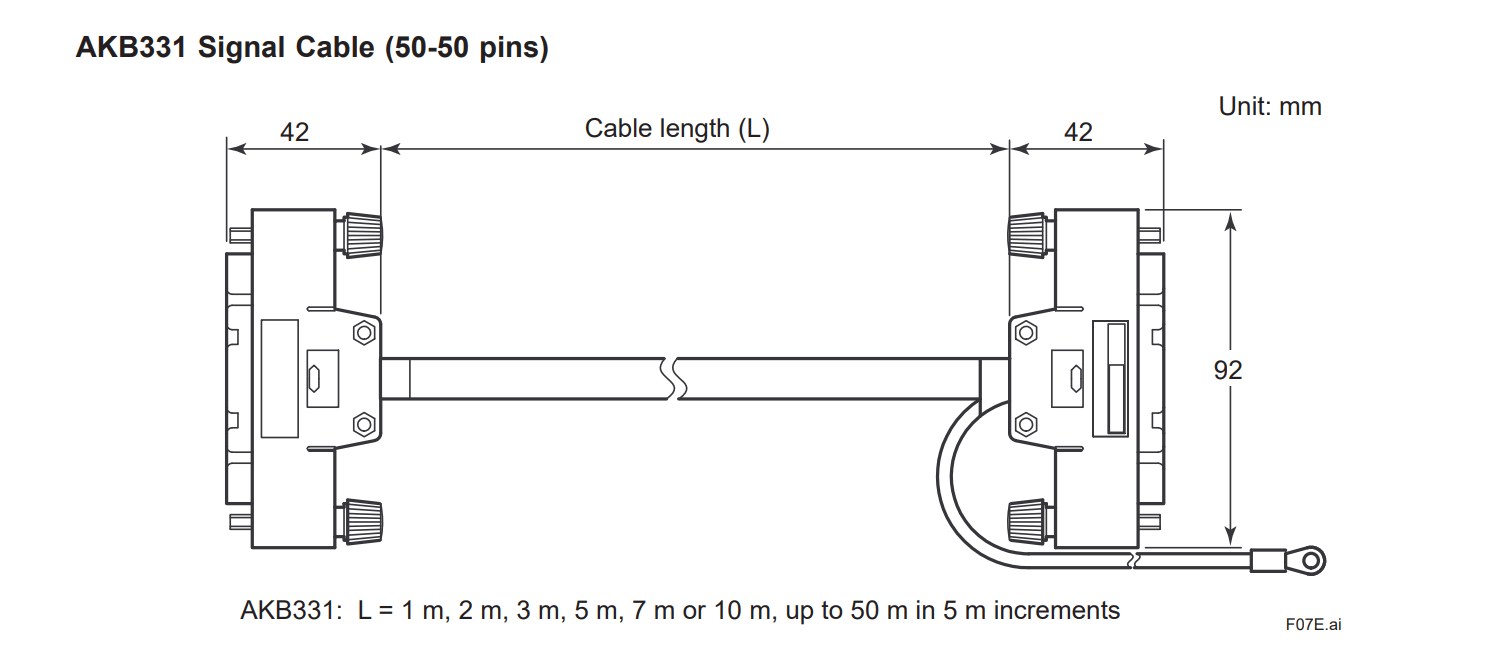

Suffix codes correspond to different lengths, such as -M001 for 1m, -M015 for 15m, etc., to meet the wiring distance requirements of different installation scenarios.

Specification
