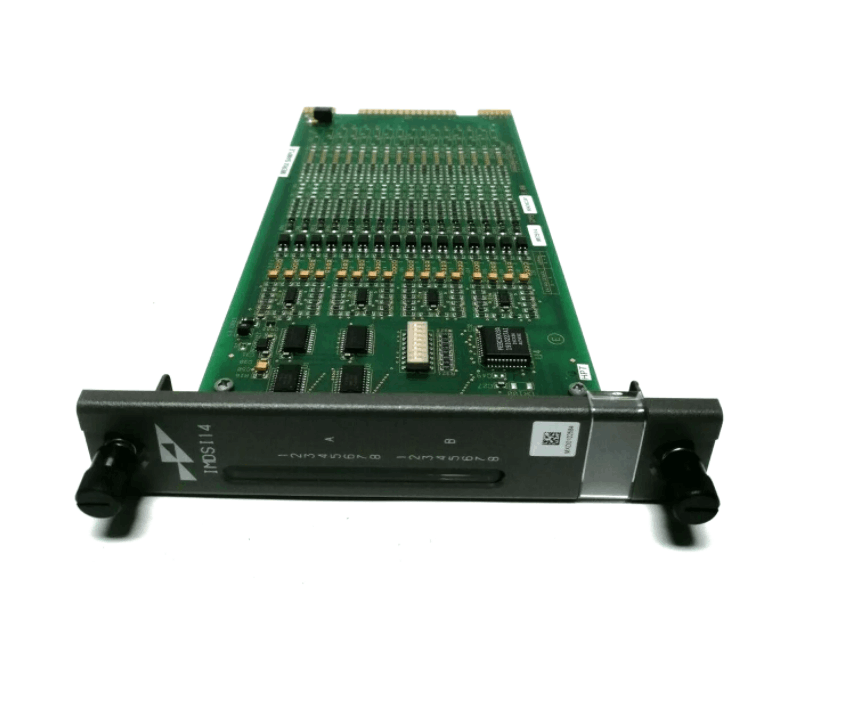

ABB IMDSI14 48 VDC Digital Input Module
Item Number:IMDSI14
Brand: ABB
Lead Time: In stock
Description:48 VDC Digital Input Module
Payment: T/T
Product Description
ABB IMDSI14 is a 48 VDC digital input module that connects 16 independent process field signals to the INFI 90® OPEN strategic process management system for control modules to monitor and control the process. It monitors field devices (e.g. switches, sensors) by converting on/off signals into system-readable data.
Function & Features
- ABB IMDSI14 provides 16 independent digital input channels and supports 48 VDC input voltage.
- The front panel of ABB IMDSI14 has 16 LED status indicators, divided into Group A and Group B, which can intuitively display the status of each input channel.
- ABB IMDSI14 uses a passive contact input interface and can be read by MFP or logic master module (LMM) through the I/O expansion bus.
- Occupies one slot in the standard INFI 90 OPEN module mounting unit (IEMMU).
Specifications
|
Property |
Characteristic/Value |
| Model | IMDSI14 |
|
Power consumption |
95 mA at 5 VDC (typical), 115 mA maximum |
|
16 channels |
|
|
Input voltage |
48 VDC |
|
Passive contact input interface read by the MFP or logic master module (LMM) via the I/O expander bus |
|
|
Mounting |
Occupies one slot in a standard INFI 90 OPEN module mounting unit (IEMMU) |
|
Ambient temperature (per IEC 68-2-1, 2,14) |
Temperature rating within the cabinet or enclosure applies. INFI 90 OPEN internal cabinet rating: 0° to 70° C (32° to 158° F) |
|
Pollution degree |
1 (no condensation) |
|
Atmospheric pressure |
Sea level to 3 Km (1.86 miles) |
