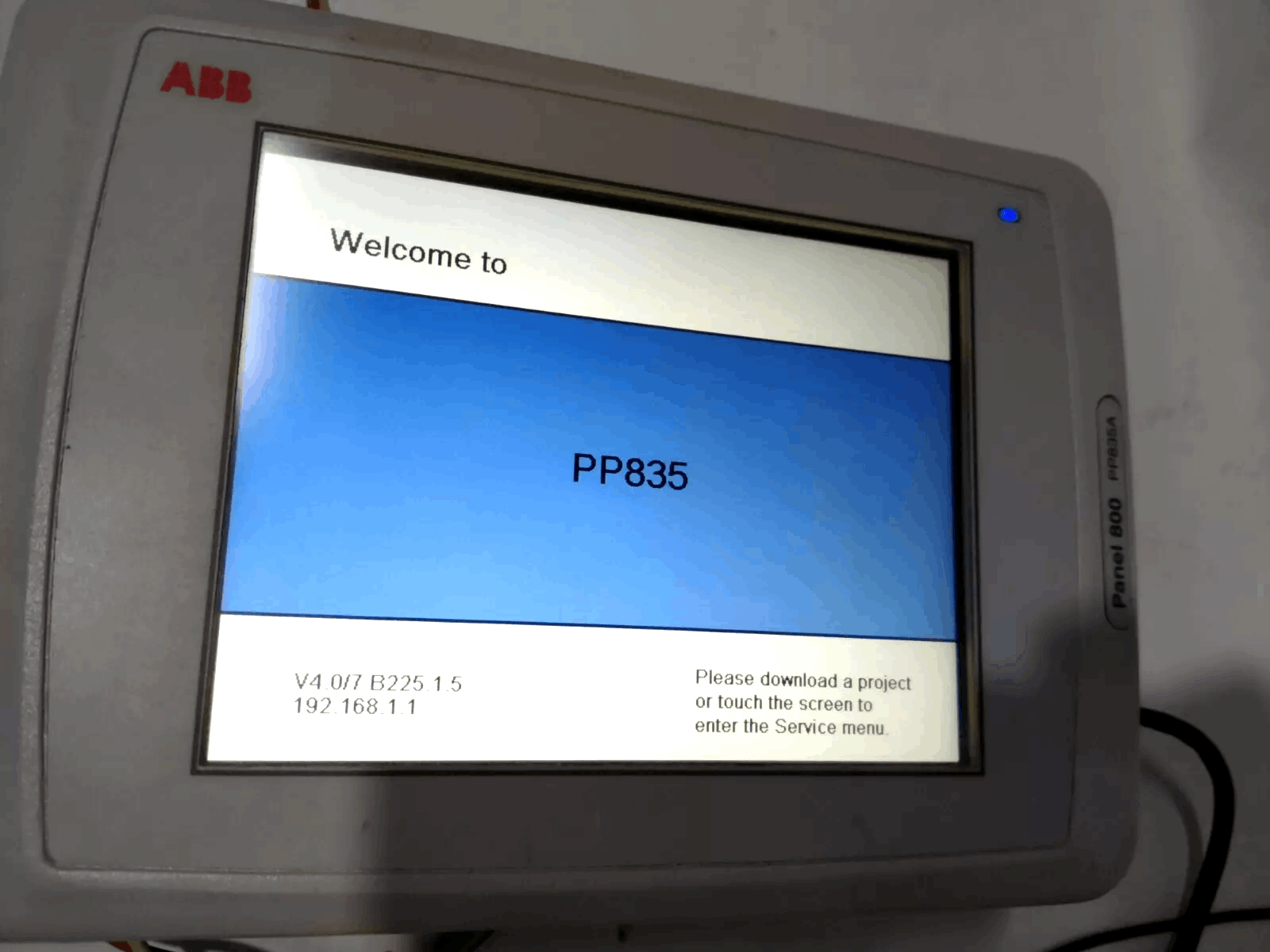

ABB PP835A 3BSE042234R2 Touch Panel
Item Number:PP835A 3BSE042234R2
Brand: Others
Lead Time: In stock
Description:Touch Panel
Payment: T/T
Product Description
ABB PP835A 3BSE042234R2 Touch Panel is a touchscreen operator panel in the Panel 800 series. It features built-in text display and control, dynamic indication, time channels, alarm handling, and recipe management, operating using an object-oriented approach. The panel is configured using the Panel Builder 800 configuration tool on a personal computer, and the project is then transferred and stored on the panel.
Function & Features
- The PP835A offers a variety of functions, including trend charts, alarm management, and parameter settings. It also features built-in text display and control, dynamic indicators, and other features.
- The PP835A features a 6.5-inch color TFT LCD display with a resolution of 640 x 480 pixels, providing clear graphics and text displays.
- The PP835A utilizes a touchscreen interface and an object-oriented approach, allowing operators to access required information and functions without navigating through complex menus. Multi-touch support also allows operation with fingers, gloves, and other devices.
- The PP835A can be configured on a personal computer using the Panel Builder 800 configuration tool, allowing for personalized screen customization, including custom colors and fonts.
Specifications
|
Port Type |
Connector Details |
| ABB | PP835A |
| Part Number | 3BSE042234R2 |
|
RS422/RS485 Serial |
25-pin D-sub female chassis mount with 4-40 UNC locking screws for secure connection |
|
RS232C Serial |
9-pin D-sub male with 4-40 UNC locking screws |
|
Ethernet |
Shielded RJ45 connector (for Ethernet communication) |
|
USB Host |
Type A (USB 1.1), max output current 500 mA |
|
USB Device |
Type B (USB 1.1), for peripheral connection |
|
CF Slot |
Supports Type I/II CompactFlash cards for additional storage |
|
Front Panel Dimensions |
219 mm (W) × 154 mm (H) × 6 mm (D) |
|
Mounting Depth |
56 mm (156 mm including installation clearance) |
|
Weight |
1.2 kg |
