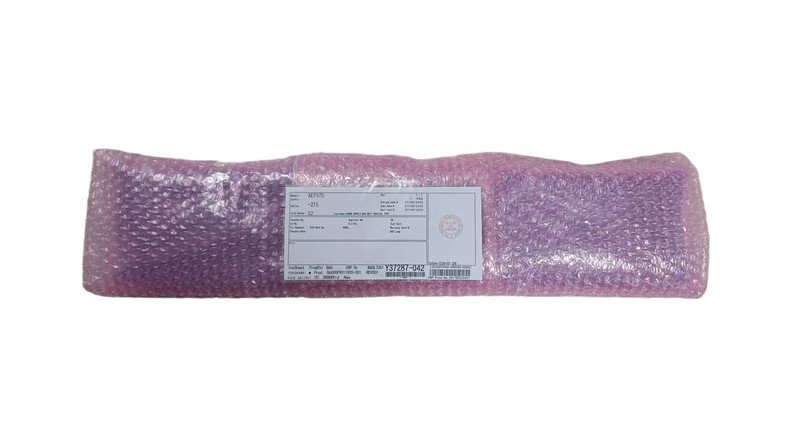

Yokogawa AEPV7D-215 Power Supply Bus Unit
Item Number: AEPV7D-215
Brand:Spares
Lead Time: In stock
Description:Power Supply Bus Unit
Payment: T/T
Product Description
Yokogawa AEPV7D-215 is a main power bus unit that provides power to other system units (such as various modules of the field control station FCS) installed in the same rack. This unit is a vertical design and cannot be horizontally mounted in a 19-inch rack. AEPV7D-215 is used in Yokogawa's N-IO and FIO systems.
Note: Note: When the AEPV7D-215 is used in more modern N-IO systems,This model number is explicitly specified as being S2 or a higher specification.
Ordering information
| Category | Code | Description |
|---|---|---|
| Model | AEPV7D | Power Supply Bus Unit, Vertical Type (for N-IO/FIO, Cabinet Mounting) |
| Suffix Codes | -2 | 220-240 V AC power supply |
| -1 | For general cabinet | |
| -5 | Basic type with no explosion protection |
Function & Features
- For the 100V/200V model: The AEPV7D-215 provides 7 independent outputs each for output ports A and B.
- For the 24V model: Each circuit of the AEPV7D-215 provides a total of 7 outputs (divided into 2 A1/B1 outputs and 5 A2/B2 outputs) for both A and B outputs.
- Single Input Mode: The AEP V7D-215 can combine two inputs by connecting the input terminals (A and B, or A1 and B1, A2 and B2) using a jumper cable. In this mode, the unit can provide a total of 14 outputs.
Specification
| Parameter | Specification |
|---|---|
| Model | AEPV7D-215 |
| Input power supply | Voltage: 220-240 V AC ±10 %Frequency: 50/60 Hz |
| Withstanding voltage | 1500 V AC |
| Max. input current/power supply bus unit | 20 A |
| Max. input current/port | 6 A |
| Weight | Approx. 2.9 kg |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
