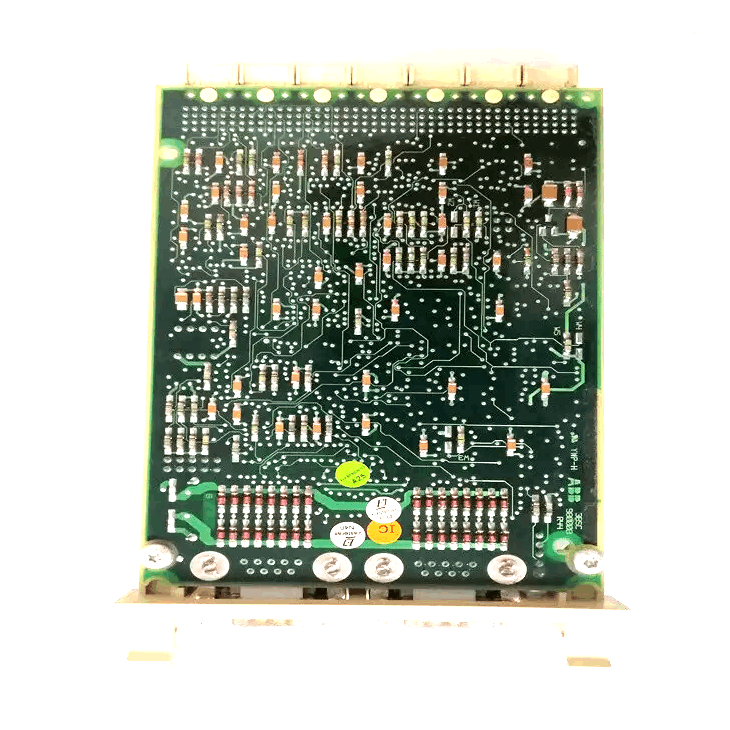

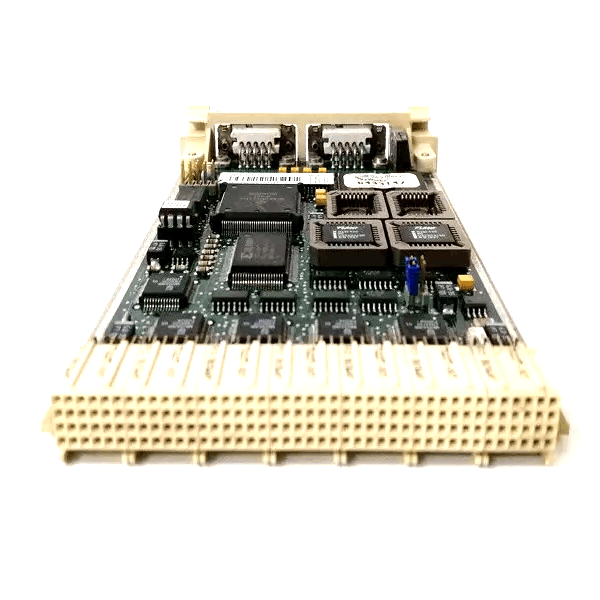

ABB CI534V02 3BSE010700R1 Submodule MODBUS Interface

ABB CI534V02 3BSE010700R1 MODBUS interface submodule is part of the ABB Advant Master process control system. According to Article 2(4)(c), (e), (f) and (j) of Directive 2011/65/EU (RoHS), this component is exempted from the scope of the RoHS Directive (reference document: 3BSE088609 – ABB EU Declaration of Conformity). It is mainly used for communication in industrial automation systems and is classified as a device for transmitting or receiving voice, images or other data, and is classified in the customs commodity code 851762.

Fuctions & Features

• MODBUS protocol adaptation: As a MODBUS interface submodule, the core working principle of the ABB CI534V02 module is to communicate data based on the MODBUS protocol. It can package and parse various data information of different devices in the industrial automation system in the format specified by the MODBUS protocol.

• Master-slave mode communication: The ABB CI534V02 module supports multiple working modes such as master-slave mode. When it is a master station, it will send request frames to the slave devices connected to the MODBUS network according to a certain cycle or according to specific instructions, asking the slave device for the status or requesting the slave device to perform certain operations.

• Environmental attributes: The RoHS status of the ABB CI534V02 module is not compliant with the RoHS standard, and it belongs to the 5th category of small devices in the WEEE classification (external dimensions not exceeding 50 cm), and the number of batteries is 0.

Specification
