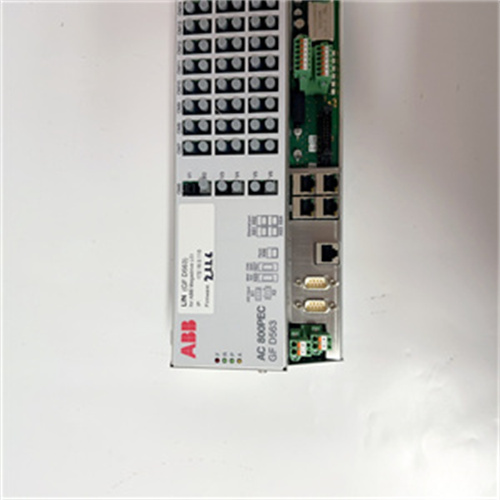

ABB GFD563A102 3BHE046836R0102 Product Overview

ABB GFD563A102 3BHE046836R0102 is an industrial control module launched by ABB,which combines excitation system interface and multi-channel digital control functions.This module is designed specifically for power plants,industrial automation,and robot systems,supporting synchronous motor excitation control,motion trajectory planning,and complex signal processing.It has high reliability and scalability,and is suitable for power equipment and precision control scenarios in harsh environments.

technical specifications

Parameter description

Model ABB GFD563A102 3BHE046836R0102

Product type:Excitation convection interface module/High speed digital output control module

Input voltage 220V AC(some configurations support other voltages)

Output voltage 24V DC

Maximum power 100W

Dimensions:380mm(length)x 142mm(width)x 73.5mm(height)

Weight 1.54 kilograms

Protection level IP67(dustproof and waterproof)

Working temperature-20°C to 60°C

I/O configuration supports 62 analog/digital input-output combinations(expanded to 1024 I/O)

Communication protocols PROFINET,EtherCAT,Modbus TCP/IP

Main features and advantages

High performance control and scalability

Integrated high-speed digital output function,supporting 28 digital outputs and 2 high-speed digital output channels,suitable for real-time control scenarios(such as robot motion command output).

Scalable to 1024 I/O points,compatible with local or remote installation(up to 1000 meters),suitable for complex automation system requirements.

Special interface for excitation system

Specially designed for synchronous motor excitation,directly connected with convection cooled thyristor group,providing voltage/current control and monitoring functions to ensure stable operation of the generator.

Support AC 800PEC system integration and adapt to high-precision requirements in industrial process control.

Industrial grade reliability

Modular design supports rapid maintenance,and the casing is made of corrosion-resistant materials,suitable for high temperature,high humidity,and dusty environments.

Built in overcurrent,overvoltage,and overheating protection ensures the safety of equipment and systems.

Flexible configuration and compatibility

Supports motion control,logic control,and data acquisition functions,and can work in conjunction with sensors,actuators,and mainstream PLCs such as Siemens and Rockwell.

Provide programmable parameter settings to meet customized control logic requirements.

application area

Power system:excitation system control of power plants,synchronous motor speed regulation and voltage stability.

Industrial automation:Multi axis motion control for machine tool numerical control,packaging machinery,and material handling systems.

Robotics technology:industrial robot trajectory planning,high-precision operation command output.

Process control:temperature and pressure signal acquisition and processing in the chemical and metallurgical industries.
