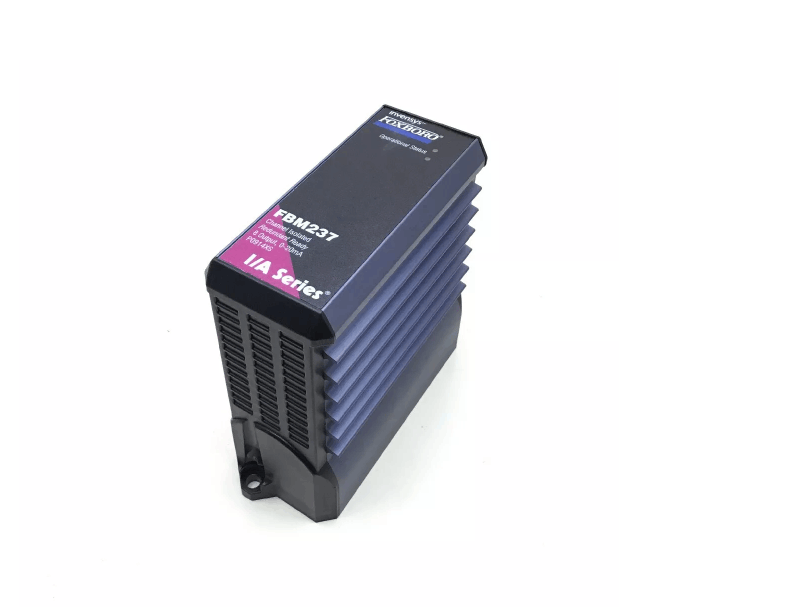

Foxboro FBM237 P0914XS 0 To 20 MA Output Module
Item Number: FBM237 P0914XS
Brand:Foxboro
Lead Time: In stock
Description: 0 to 20 mA Output Module
Payment: T/T
Product Description
Foxboro FBM237 P0914XS is a 0 to 20 mA output module that includes 8 analog output channels. The output channels are electrically isolated from the other channels and ground, and the module can be used as a single unit or as a redundant pair (two FBM237).
When used as a redundant pair, the field output signal is connected to a common terminal assembly, and each module in the redundant pair can independently maintain the output at a specified value.
Function & Features
- Redundant control architecture: FBM237 (P0914XS) uses AOUTR function block to manage redundant output pairs.
- Automatic switching in case of failure: faulty module output resets to zero, normal module maintains current output.
- Configurable fail-safe action: Hold/Fallback mode, channel-level fail-safe fallback data setting (forced to 0mA).
- Dual protection mechanism: FBM237 prevents "fail high output", bus communication failure delay time is configurable.
Specifications
|
Parameter |
Specification |
|
Model |
FBM237 |
|
Part Number |
P0914XS |
|
Output Accuracy |
±0.05% of span (0.1-20 mA range) |
|
Temperature Coefficient |
±50 ppm/°C |
|
Output Load |
Max 750 Ω |
|
Output Delay |
≤30 ms |
|
Output Range |
0 to 20.4 mA DC (per channel) |
|
Resolution |
13-bit |
|
Input Voltage |
24 V DC (+5%, -10%) |
|
Power Consumption |
Max 7 W at 24 V DC |
|
Heat Dissipation |
Max 5 W at 24 V DC |
