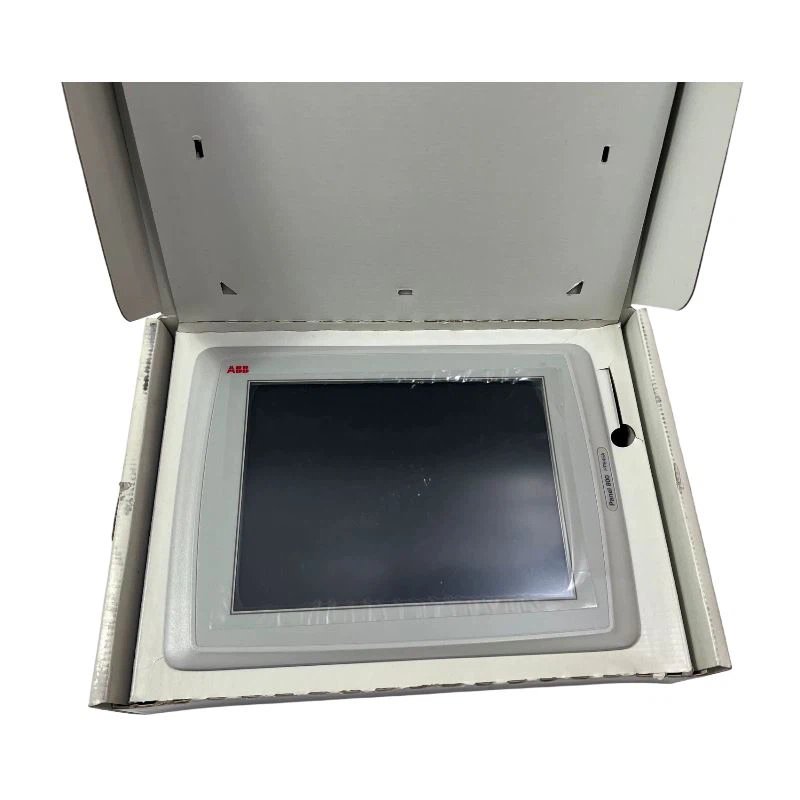

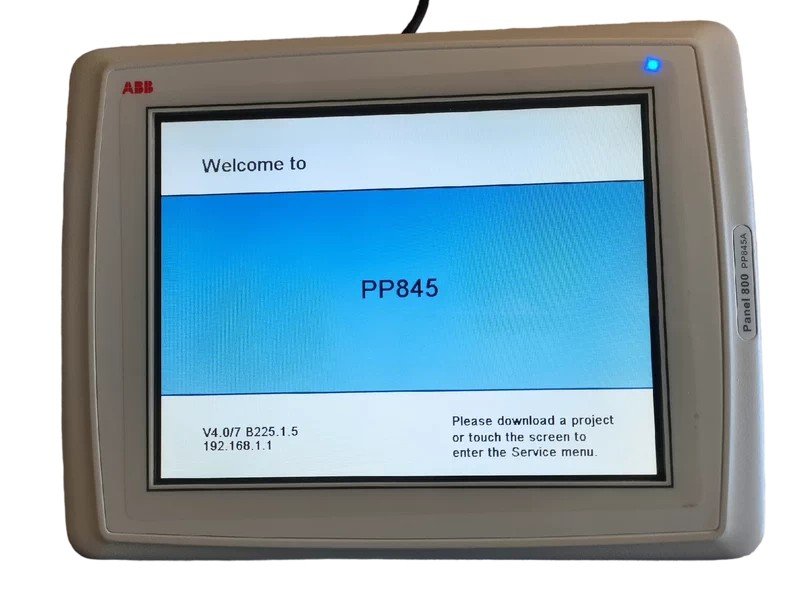

ABB PP845A 3BSE042235R2 Panel 800 Operator Panel
Item Number:PP845A 3BSE042235R2
Brand:ABB
Lead Time: In stock
Description:Panel 800 Operator Panel
Payment: T/T
Product Description
The ABB PP845A (3BSE042235R2) is an operator panel in the Panel 800 series. This panel is a human-machine interface embedded in equipment or control cabinet doors. Project development is carried out using dedicated Panel Builder 800 configuration software.
The panel is equipped with a glass-based polyester touch screen that can withstand up to 1 million touch operations. The panel cover is made of Autotex F157/F207 material, and the back panel is made of powder-coated aluminum alloy.
Function & Features
- Preset Functions:
ABB PP845A (3BSE042235R2) provides built-in HMI capabilities such as text display and control, dynamic indications, time channels, alarm handling, and recipe management, eliminating the need for programming from scratch.
- Object-oriented configuration:
Engineers use Panel Builder 800 to construct screens for ABB PP845A by dragging and dropping predefined objects such as buttons, indicators, charts, and alarm windows.
- Standalone operation:
After project compilation on a PC, the project can be downloaded and stored in the ABB PP845A operator panel. Once the download is complete, the panel operates independently.
Specifications
| Parameter | Details |
|---|---|
| Product Model | PP845A |
| Part Number | 3BSE042235R2 |
| Active area of display (W x H) | 211.2 x 158.4 mm |
| Fuse | Internal DC fuse, 3.15 A, 5 x 20 mm |
| DNV | Yes |
| NEMA | 4x indoor use only |
| Display | TFT-LCD, 800 × 600 pixels, 64K color; CCFL backlight lifetime at the ambient temperature of +25 °C: >50,000 h. |
