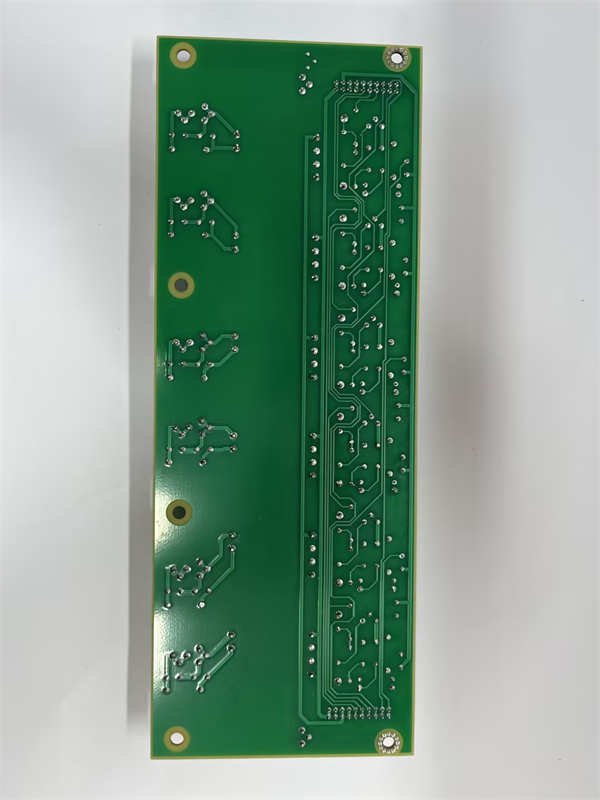

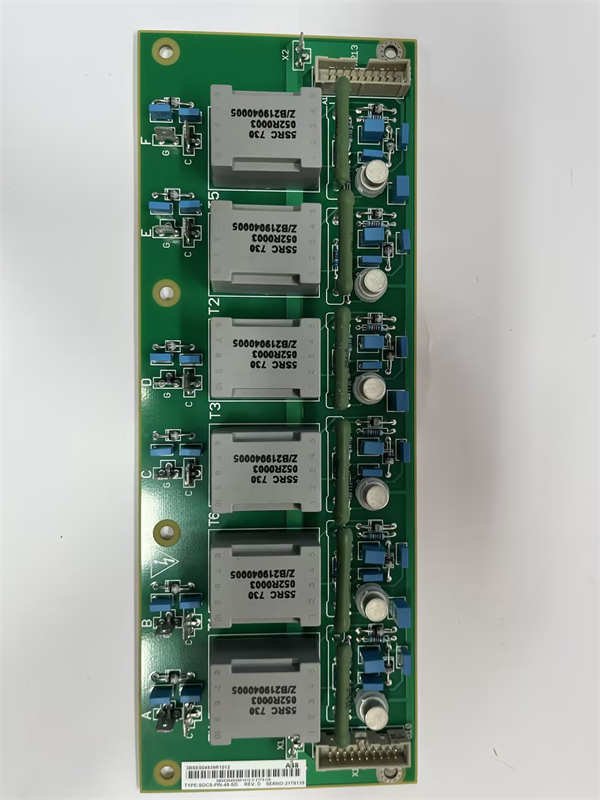

ABB SDCS-PIN48-SD High-Density Power Interface Module

The ABB SDCS-PIN48-SD represents the evolution of power distribution within ABB’s Symphony™ Plus DCS, engineered for ultra-high availability applications where power density is critical. This module converts 48VDC input into three isolated outputs: precision-regulated +5VDC for CPU logic and dual +24VDC rails for field instruments and redundant I/O systems. As the powerhouse of ABB’s S800 I/O High-Density series, the SDCS-PIN48-SD integrates with controllers like SDCS-CON-4 to deliver fault-tolerant power for data-intensive processes.

Its architecture eliminates single points of failure through triple-redundant power inputs and N+2 parallel operation. The ABB SDCS-PIN48-SD incorporates real-time load balancing algorithms and predictive failure analytics, making it indispensable for offshore platforms and continuous-process industries. By maintaining voltage regulation within ±0.5% under 0–100% load transients, this module ensures signal integrity for safety-critical measurements in nuclear plants and LNG terminals.

Core Advantages and Technical Highlights

High-Power Density: Delivering 30A at 5VDC (150W logic power) in a single-slot footprint, the SDCS-PIN48-SD supports up to 64 I/O channels per rack – double the capacity of standard modules. Phase-shifted DC/DC converters reduce ripple to <25mV peak-to-peak.

Multi-Tier Redundancy: Three independent OR-ing controllers enable concurrent operation of three power feeds. If one input fails, the ABB SDCS-PIN48-SD redistributes loads in <500µs without voltage sag. Field-side 24V outputs feature active current sharing for N+1 sensor bus redundancy.

Extreme Environment Operation: Rated for -40°C cold starts and 85°C ambient temperatures, the module uses ceramic-coated PCBs to withstand salt fog (ISO 9227) and H2S environments. Vibration resistance to 3g (5–500Hz) suits floating production storage vessels.

Cybersecurity Integration: Hardware-based IEC 62443-4-2 compliance includes tamper-proof firmware and signed configuration files. The S+ Bus encrypts diagnostic data like MOSFET junction temperature and capacitor ESR values.

Detailed Parameter Table

Typical Application Scenarios

In offshore drilling BOP (Blowout Preventer) control systems, the ABB SDCS-PIN48-SD powers emergency shutdown logic. Its DNV-GL certification ensures operation during vessel pitch/roll, while dual 24V outputs maintain redundant solenoids even if one channel shorts.

For semiconductor fab vacuum systems, the module’s low-noise 5V supply (<50nV/√Hz) prevents EMI interference in nanometer-scale deposition controllers. Hot-swap capability allows replacement during wafer transfer cycles without breaking vacuum.

In battery megafactories, the SDCS-PIN48-SD’s soft-start circuitry limits inrush current during electrode formation line startups, protecting lithium-ion formation equipment from voltage sag transients.

Installation, Commissioning and Maintenance Instructions

Installation preparation: Verify rack backplane voltage (48VDC ±5%) before insertion. Use anti-vibration mounts in marine/offshore installations. Torque terminal screws to 0.8 N·m with calibrated tool. Ensure minimum 40mm lateral clearance for convection cooling. Pre-load configuration via Control Builder MT to activate current-sharing algorithms.

Maintenance suggestions: Biannually measure output noise spectrum (0–10MHz). Monitor S+ Bus parameters: electrolytic capacitor health (ESR<0.1Ω) and MOSFET thermal margin (>15°C). Replace air filters annually in dusty environments. After 5 years, perform infrared thermography on output connectors during full-load operation.

Service and Guarantee Commitment

ABB provides a 5-year warranty for the SDCS-PIN48-SD, covering all components including cooling subsystems. Global 24/7 technical support includes remote firmware recovery and failure mode analysis within 2 hours.

Extended lifecycle support guarantees spare availability until 2045. Customers receive complimentary access to ABB Ability™ Power Diagnostics Cloud for real-time degradation analytics. All modules undergo 500-hour accelerated aging tests with full environmental stress screening (ESS) reports.
