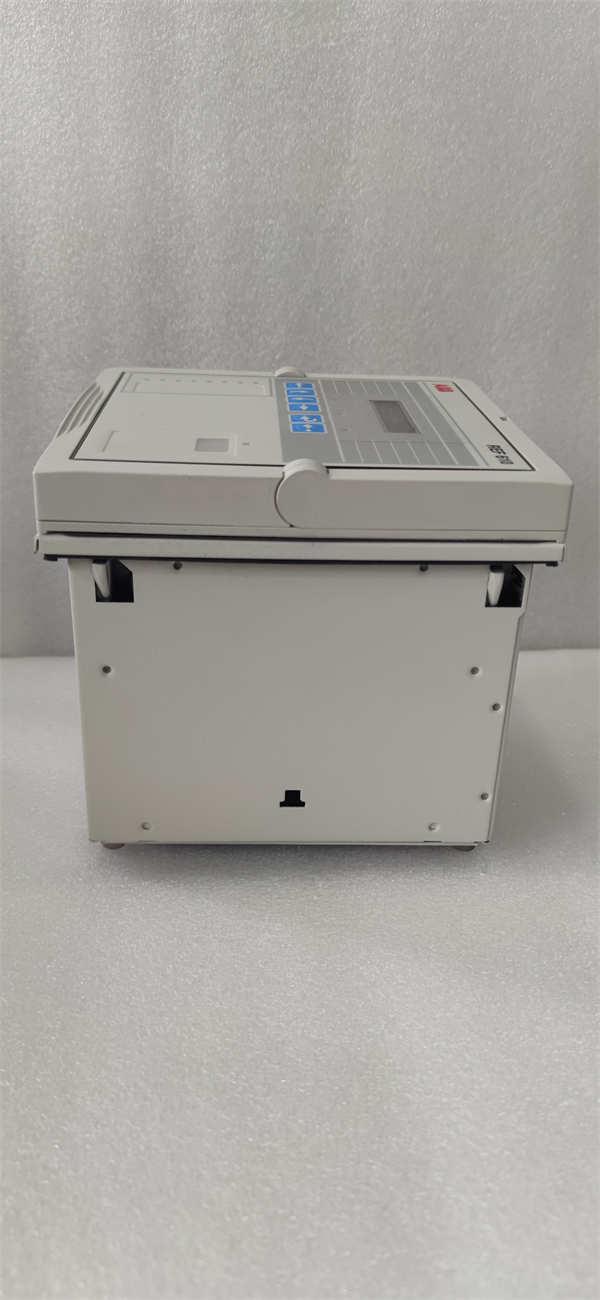

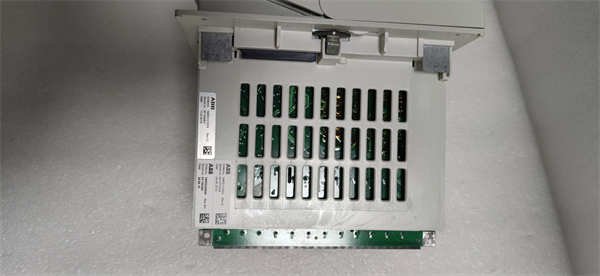

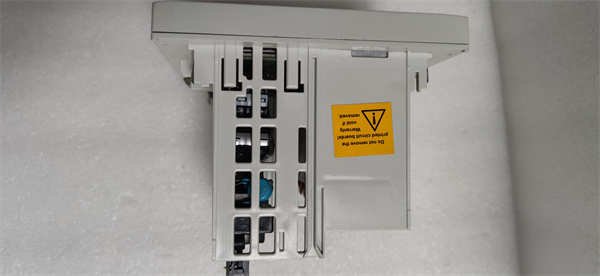

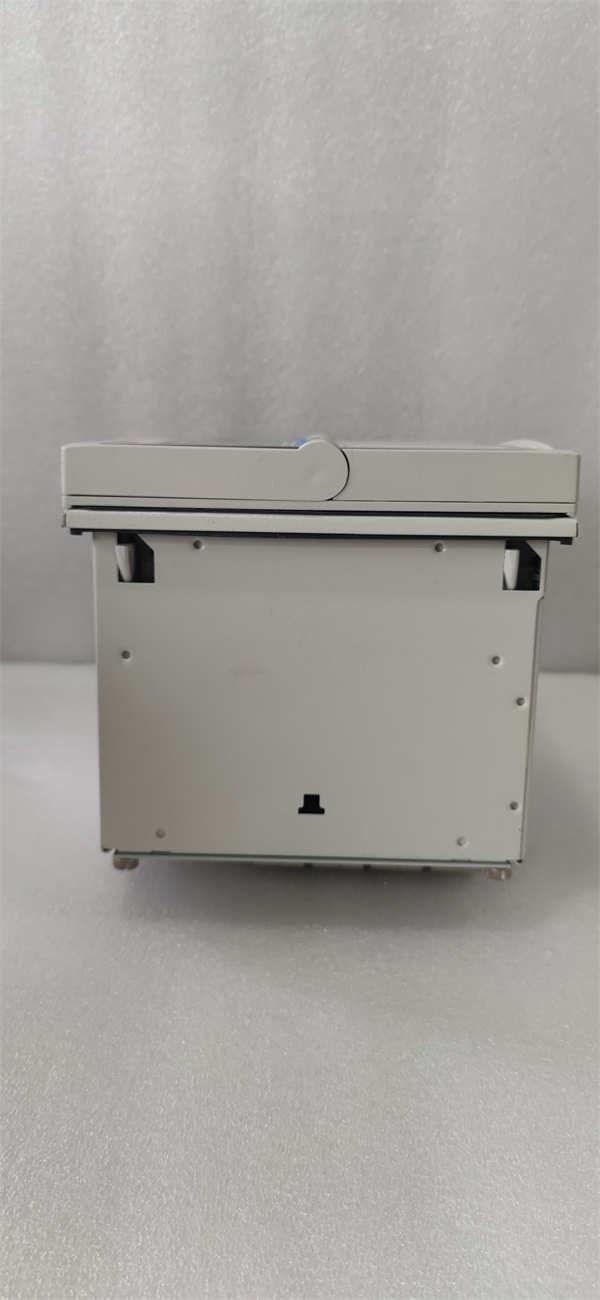

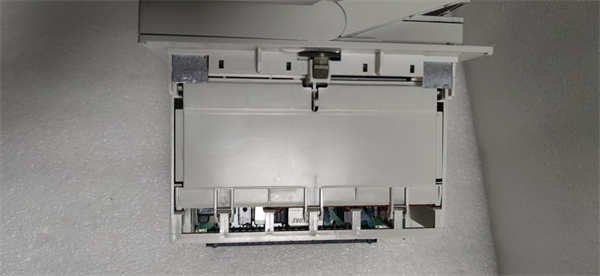

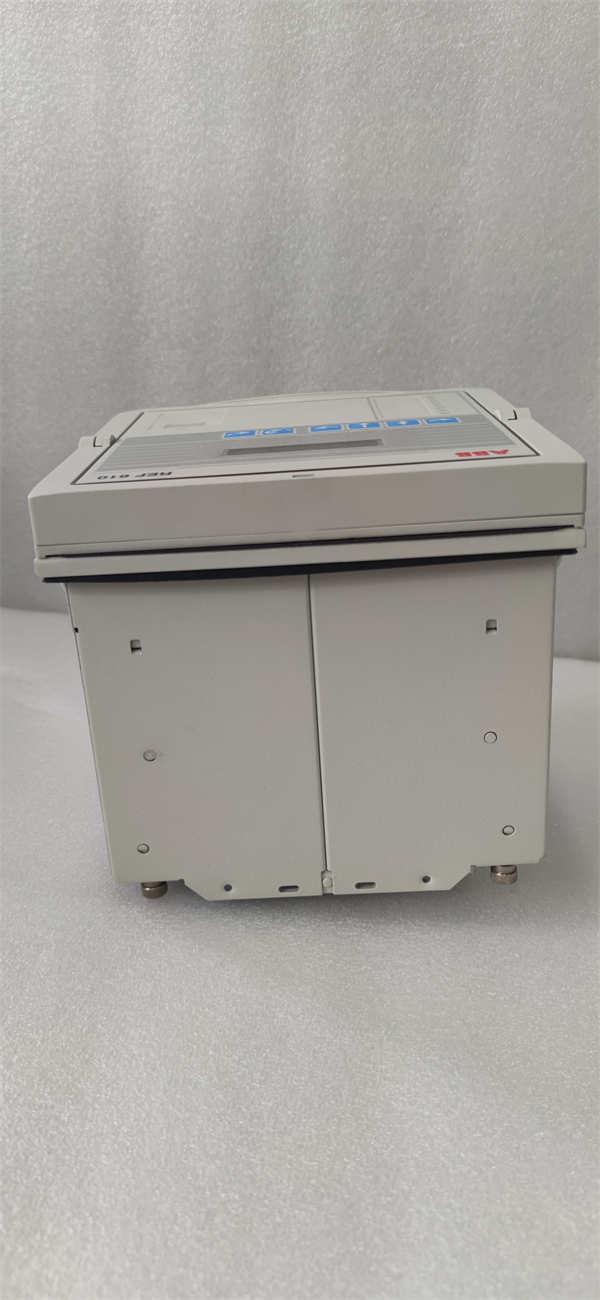

ABB REF610C11HCNN01 Feeder Protection Relay

The ABB REF610C11HCNN01 is a versatile feeder protection relay designed for industrial power distribution networks up to 15 kV. As part of ABB’s Relion® 610 series, this integrated electronic device (IED) provides comprehensive protection, control, and monitoring for medium-voltage switchgear. The package includes the ABB SAQH1 hot-swappable base, enabling rapid module replacement without wiring disconnection.

Engineered for reliability in harsh environments, the ABB REF610C11HCNN01 combines advanced protection algorithms with arc-flash detection capability. Its dual-core processor executes 12-cycle waveform analysis for fault discrimination, while the integrated energy meter tracks consumption for load management. The relay serves as a critical node in ABB’s System 800xA, enabling centralized fault analysis and predictive maintenance through IEC 61850 GOOSE messaging.

Detailed Parameter Table

Core Advantages and Technical Highlights

Multi-Layer Protection Architecture:

Arc Flash Mitigation: Fiber-optic sensor input triggers <2ms light detection

Adaptive Overcurrent: Auto-adjusts pickup values based on load profile

Breaker Failure Backup: 30ms backup tripping when primary CB faults

Cyber-Resilient Operation:

IEC 62443-4-2 compliant firmware with signed updates

Role-based access control (5 user levels)

Event logging with cryptographic timestamps

Seamless System Integration:

Native IEC 61850-8-1 Ed.2 communication

GOOSE messaging for <10ms peer-to-peer coordination

COM600 configurator for zero-touch provisioning

Diagnostic Intelligence:

CB contact wear monitoring (operations/current integral)

CT saturation detection with waveform distortion analysis

Battery-backed event recorder (128 cycles @ 256 samples/cycle)

Maintenance Optimization:

Hot-swap base (SAQH1) reduces MTTR by 85%

Front USB port for setting uploads/downloads

Self-supervision alerts on component degradation

Typical Application Scenarios

Industrial Plant Switchgear: Protects 6.6kV feeders for critical motors in petrochemical facilities. Arc-flash detection reduces incident energy by 90% via ABB REF610C11HCNN01‘s <2ms light sensing.

Renewable Energy Substations: Manages 33kV collector feeders in solar farms. Voltage-dependent overcurrent settings prevent nuisance tripping during cloud transients.

Marine Power Distribution: DNV-GL certified for vessel switchboards. Ground fault protection (50N) with directional logic isolates faults without blackout.

Mining Power Networks: Withstands 5g vibration in crusher motor circuits. CB failure protection (50BF) initiates backup tripping when dust affects main breaker.

Data Center MV Distribution: Monitors 12kV UPS input feeders. IEC 61850 enables real-time load shedding coordination with ABB PCS6000 converters.

Installation, Commissioning and Maintenance Instructions

Installation Preparation:

Verify CT polarity: P1 toward protected equipment

Ground shield wires at relay end only (<0.1Ω)

Fiber-optic sensors: Minimum 50mm bend radius

Secure DIN rail mounting (EN 60715 compliant)

Commissioning Procedure:

Inject 30% pickup current to verify measurement accuracy

Test arc detection: Flash 100-lux light at sensor

Validate GOOSE messaging with ABB PCM600 software

Simulate CB failure (block trip output to trigger 50BF)

Maintenance Protocol:

Monthly: Verify event logs for transient faults

Quarterly: Clean optical sensors with IPA wipes

Biannual: Exercise CB 10x via relay control

Annual: Primary injection test (verify timing ±5%)

Hot-Swap: Deactivate DC supply before module extraction

Service and Guarantee Commitment

ABB provides a 5-year warranty for the ABB REF610C11HCNN01, including:

Lifetime Support: 20+ years of spare parts availability

Cybersecurity Updates: Annual firmware patches with vulnerability remediation

Global Response: 24/7 technical support with 4-hour escalation

Performance Guarantee: <0.5% measurement drift over 10 years

Recertification Service: On-site recalibration with ISO 17025 certification

All relays undergo 500+ operation cycle tests and 8kV surge immunity validation (IEC 61000-4-5). ABB’s Cyber Security Emergency Response Team (CSIRT) provides threat advisories specific to protection relays.
