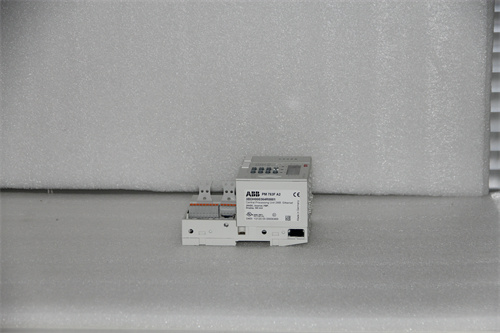

ABB PM783F Product Overview

ABB PM783F is a central processing unit(CPU)module launched by ABB,mainly used in industrial automation systems.The following is a detailed introduction to ABB PM783F.

Product Features

High-performance processing capability

PM783F has high-performance processing capability,which can achieve fast cycle time and meet the high requirements for real-time and efficiency in modern industrial applications.

Communication capability

The module is equipped with an onboard 100Mbit/s Ethernet connection,which makes communication between controllers,operator stations and engineering workstations faster and more reliable.

PM783F supports multiple communication protocols,including Modbus,Profibus,etc.,which is convenient for integration with other devices and systems.

Serial line interface

It has two serial line interfaces,one for Modbus communication and the other for diagnosis,which is convenient for users to monitor and maintain equipment.

Memory configuration

PM783F CPU module has 10MB of memory,of which 2MB is battery backup,ensuring data security and stable operation of the system.

Flexibility and performance

Supports the configuration of eight cycle and priority-driven tasks with adjustable cycle time to optimize the performance of the control system.

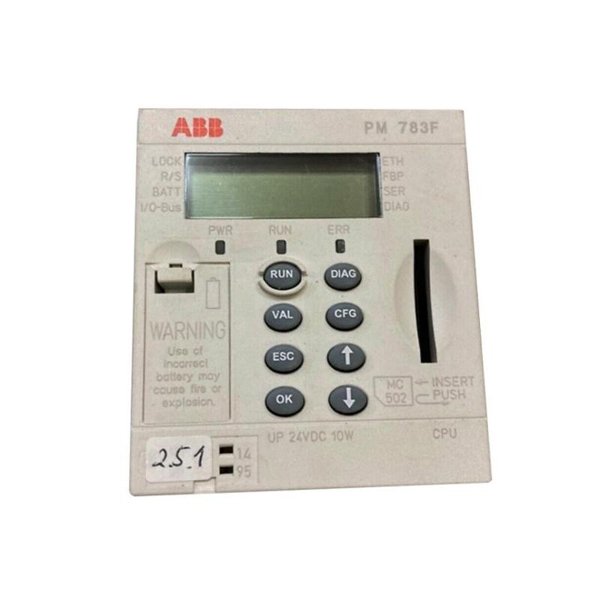

Display and security

Equipped with a small front panel display,it can intuitively display status and diagnostic information.

A key lock function is provided.By locking the controller,unauthorized downloading of applications and firmware can be prevented,enhancing the security of the system.

Connectivity

A PM783F controller can connect up to eight modules,greatly expanding the functionality and flexibility of the system.

The communication speed between the CPU and the local S700 I/O module is very fast,and the 2 millisecond I/O scan time enables the system to respond to various changes in real time.

Short circuit and wire break detection capability

The PM783F CPU module has a high short circuit and wire break detection capability,which can promptly detect and solve potential electrical problems and ensure the stable operation of the system.

Application field

ABB PM783F is suitable for various industrial automation applications,such as manufacturing,energy,transportation,construction,etc.It can be used as the core component of a programmable logic controller(PLC)to realize various automation control functions,such as temperature control,pressure control,speed control,etc.At the same time,due to its high performance and stability,PM783F is also suitable for occasions that require high security and stability,such as safety control systems in chemical,petroleum,power and other fields.
