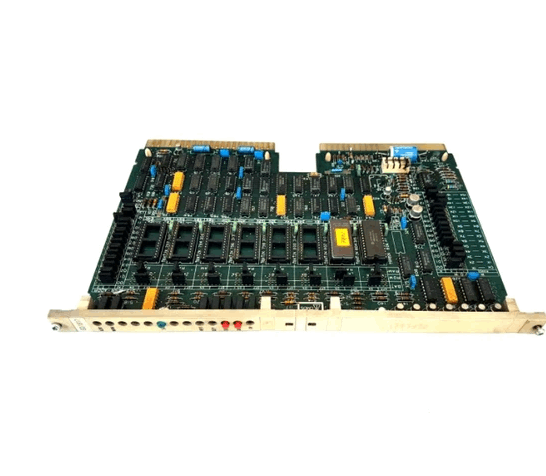

ABB ED1817 HESG330038R1 Socket Board

ABB ED1817 (HESG330038R1) is a socket board in ABB's VDP Spare series. It can connect to other electronic components (controllers, relays, etc.) and provide signals and power to upper-level modules through the conductive circuits inside the board. It is a basic component that usually plays a role in connection and splicing.

Function & Features

• As a socket board, the ABB ED1817's primary function is to provide a physical connection interface for various electrical components (such as modules and sensors), enabling these components to be installed and connected.

• The ABB ED1817 socket board is essentially an electrical connection platform, primarily composed of wires, connectors, and insulation material. The wires are typically made of copper or other highly conductive metals. These wires are arranged within the socket board according to a specific design and are used to transmit electrical current.

• When an electrical component is plugged into the ABB ED1817 socket board interface, the component's pins come into contact with the conductive contacts on the socket board interface. This physical connection provides a path for the transmission of current or electrical signals.
