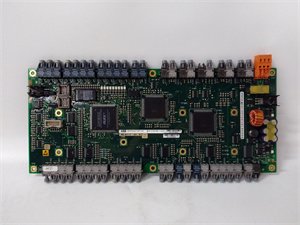

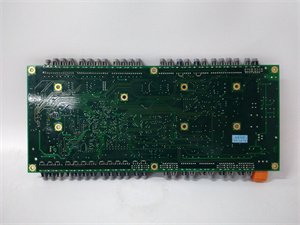

ABB UFC760BE1142 PROFINET IRT Controller

The ABB UFC760BE1142 redefines real-time industrial networking as ABB’s flagship PROFINET IRT controller with Time-Sensitive Networking (TSN) capabilities. Engineered for Industry 4.0 applications, this module delivers deterministic sub-31.25μs cycle times while synchronizing thousands of devices across hybrid networks. The ABB UFC760BE1142 integrates natively with AC 800M controllers in 800xA systems, enabling seamless convergence of operational technology (OT) and information technology (IT) networks.

Featuring dual industrial-grade SFP+ ports supporting 1Gbps fiber optics, this controller bridges geographically dispersed assets while maintaining microsecond timing precision. Its TSN implementation guarantees bounded latency for critical control loops even during network congestion. For hazardous environments, the ABB UFC760BE1142 carries IECEx Zone 2 certification and implements PROFIsafe V3.0 for safety instrumented systems up to SIL 3.

Detailed Parameter Table

Core Advantages and Technical Highlights

Revolutionary TSN Performance:

Hardware-based TSN switches enable ≤31.25μs cycle times with IEEE 802.1Qbv time-aware scheduling. Supports frame preemption (802.1Qbu) for mixed-criticality traffic.

Cyber-Physical Security:

Integrated secure element provides hardware root-of-trust with FIPS 140-2 Level 3 validation. Runtime firmware integrity monitoring with automatic quarantine of compromised nodes.

Deterministic Redundancy:

Concurrent HSR (High-availability Seamless Redundancy) and PRP support delivers true zero-recovery-time failover. Dual-clock architecture maintains synchronization during network partitions.

Edge Intelligence:

On-board ARM Cortex-R52 processor executes local analytics like Fast Fourier Transform (FFT) for vibration monitoring. Stores 8GB of time-series data for offline diagnostics.

Power Resilience:

Dual power inputs with active current sharing. Surge protection to 1kV/1kA (IEC 61000-4-5). Brownout recovery down to 16VDC.

Typical Application Scenarios

In semiconductor fabs, the ABB UFC760BE1142 orchestrates wafer handling robots with 50+ axes, leveraging TSN to synchronize vacuum arm positioning within ±10nm. Cleanroom-rated fiber optics prevent EMI interference from plasma etch tools.

Smart grid substations utilize the module’s IEEE 1588 Grandmaster capability to time-align phasor measurement units (PMUs) across 20km fiber rings. Its -40°C cold-start ensures reliability during winter grid peaks.

Pharmaceutical continuous manufacturing lines deploy the UFC760BE1142 for real-time release testing, where TSN-enabled spectrometers provide millisecond feedback to tablet presses. IECEx certification allows installation near solvent handling zones.

Installation, Commissioning and Maintenance Instructions

Installation preparation: Mount horizontally on TS35 rail with conductive clamps (ABB ref: RA891). Maintain 50mm side clearance for heat dissipation. Use CAT6A SF/UTP cables with double-shielded connectors. Ground shield continuity resistance <0.1Ω.

Maintenance suggestions: Monitor “TSN Cycle Jitter” quarterly via 800xA TSN Manager. Replace SFP+ modules if BER >10⁻¹². Perform bi-annual secure element health checks. Always use ABB-signed firmware updates – automatic rollback on verification failure.

Service and Guarantee Commitment

ABB provides a 60-month warranty for UFC760BE1142, including 24/7 TSN expert support and next-day advanced replacement. Cybersecurity vulnerability response SLA: critical patches within 24 hours. Extended product lifecycle commitment guarantees spare parts for 15 years post-discontinuation. All modules undergo 1,000-hour TSN conformance testing (PROFIBUS & PI North America certified) and MIL-STD-461G EMI validation. SIL 3 certification includes exida and TÜV Rheinland reports.
